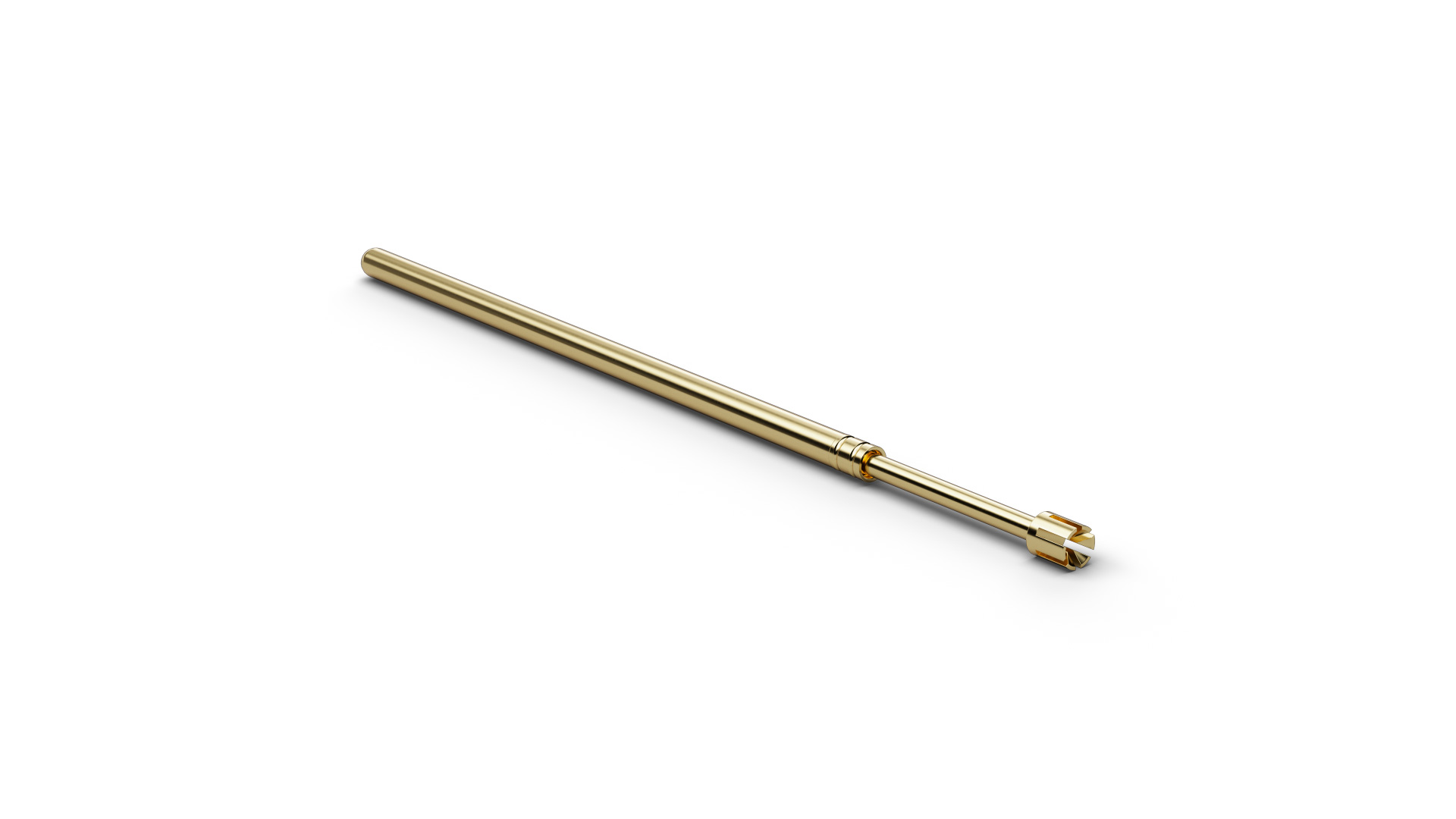

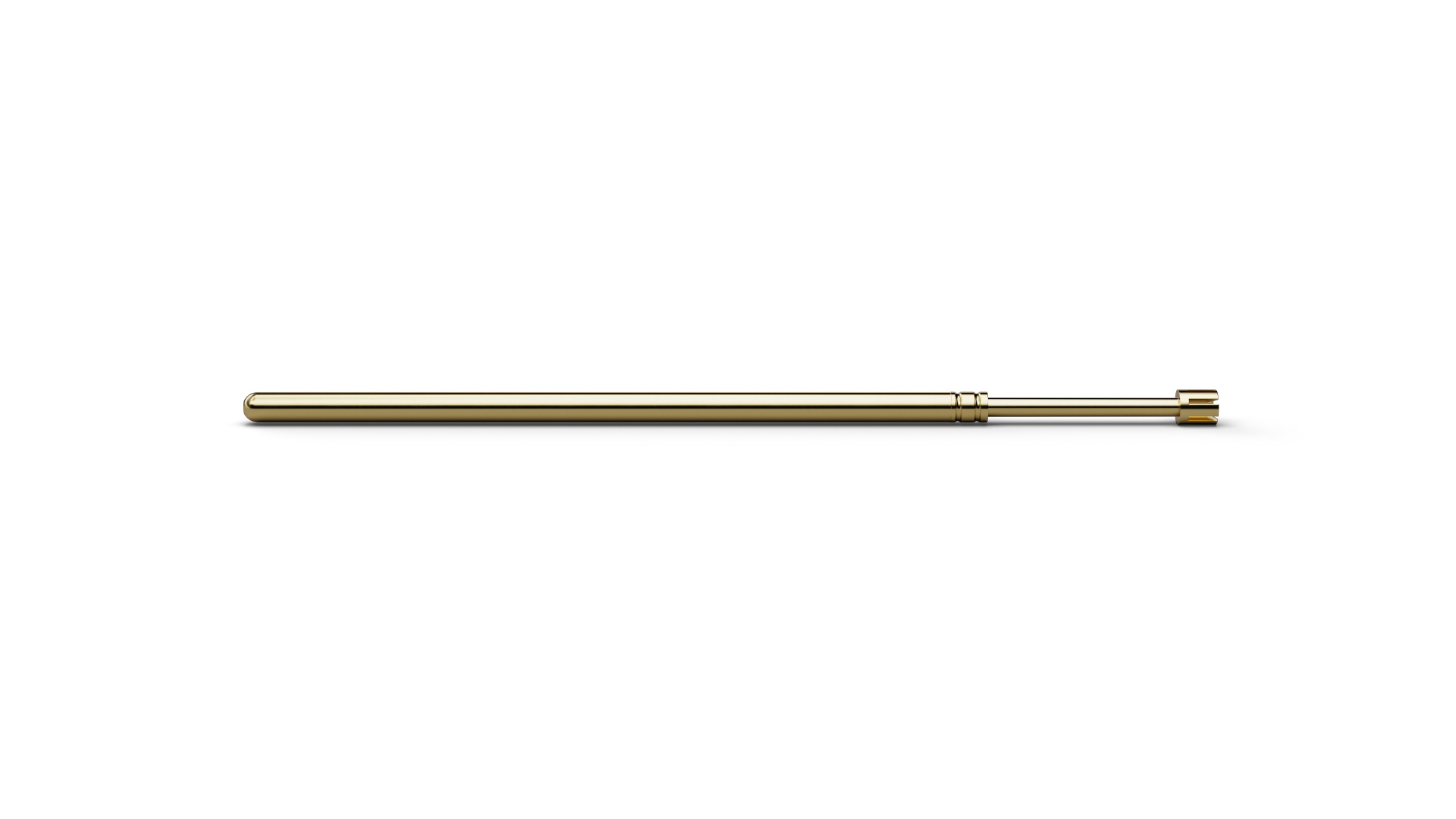

F07555B120G150 (item number 1168165) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 55 (Concave stepped (self-cleaning)), F07555B120G150 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F07555B120G150 combines a pitch of 1.9 mm / 75 mil with tip style 55 (Concave stepped (self-cleaning)) and a tip diameter of 1.2 mm. For F07555B120G150, spring force is 150 cN at a nominal travel of 4.3 mm. For F07555B120G150, the specified continuous current is 4 A.
