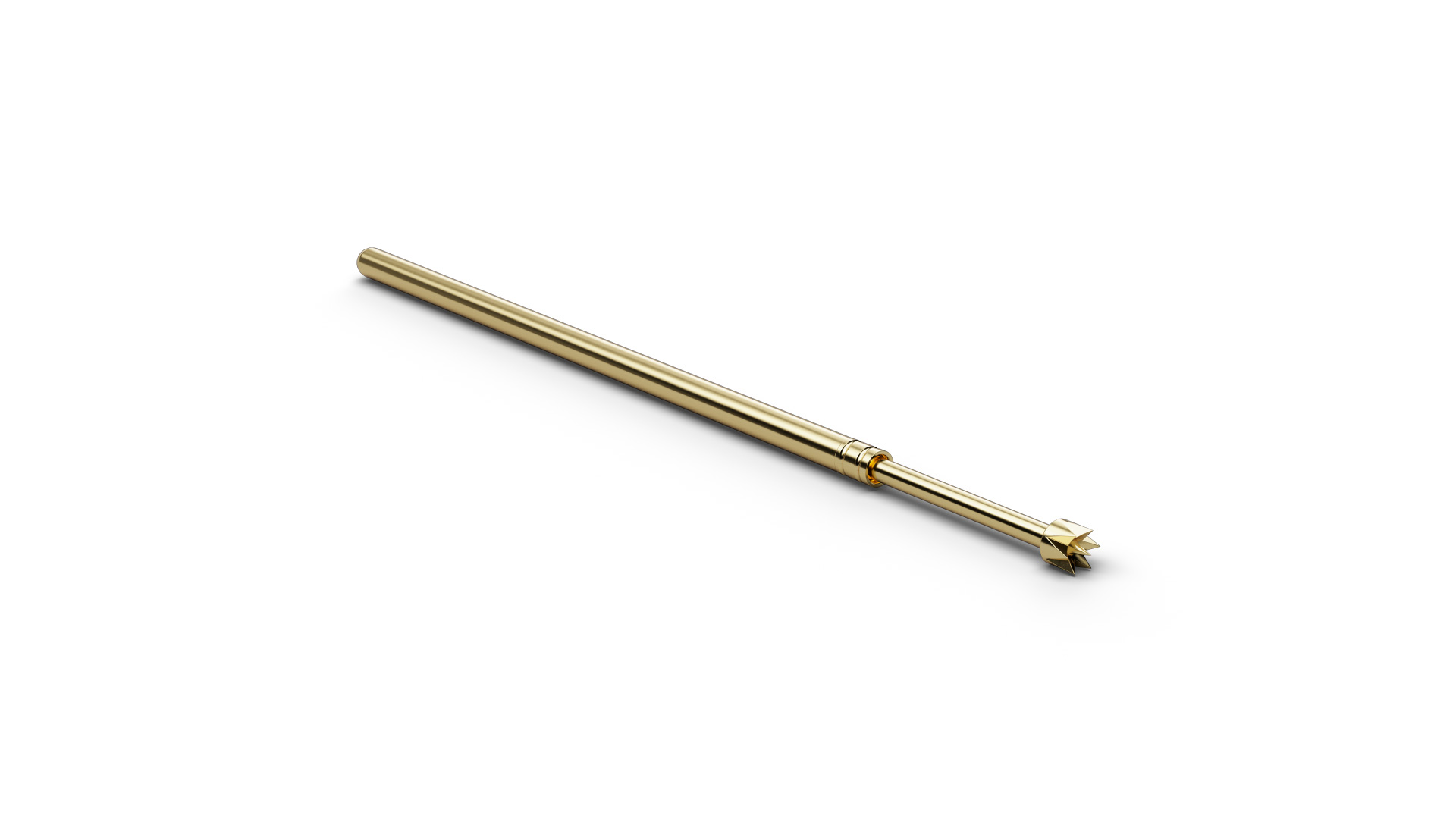

F07536S120L200H (item number 1170018) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 36 (6-point crown stepped, middle pin longer), F07536S120L200H combines ICT/FCT use with a geometry intended for plated or filled vias. F07536S120L200H combines a pitch of 1.9 mm / 75 mil with tip style 36 (6-point crown stepped, middle pin longer) and a tip diameter of 1.2 mm. For F07536S120L200H, spring force is 200 cN at a nominal travel of 4.3 mm. For F07536S120L200H, the specified continuous current is 4 A. The H suffix on F07536S120L200H denotes the high-temperature variant, designed for applications up to 200 °C.
