Beschreibung des Produkts

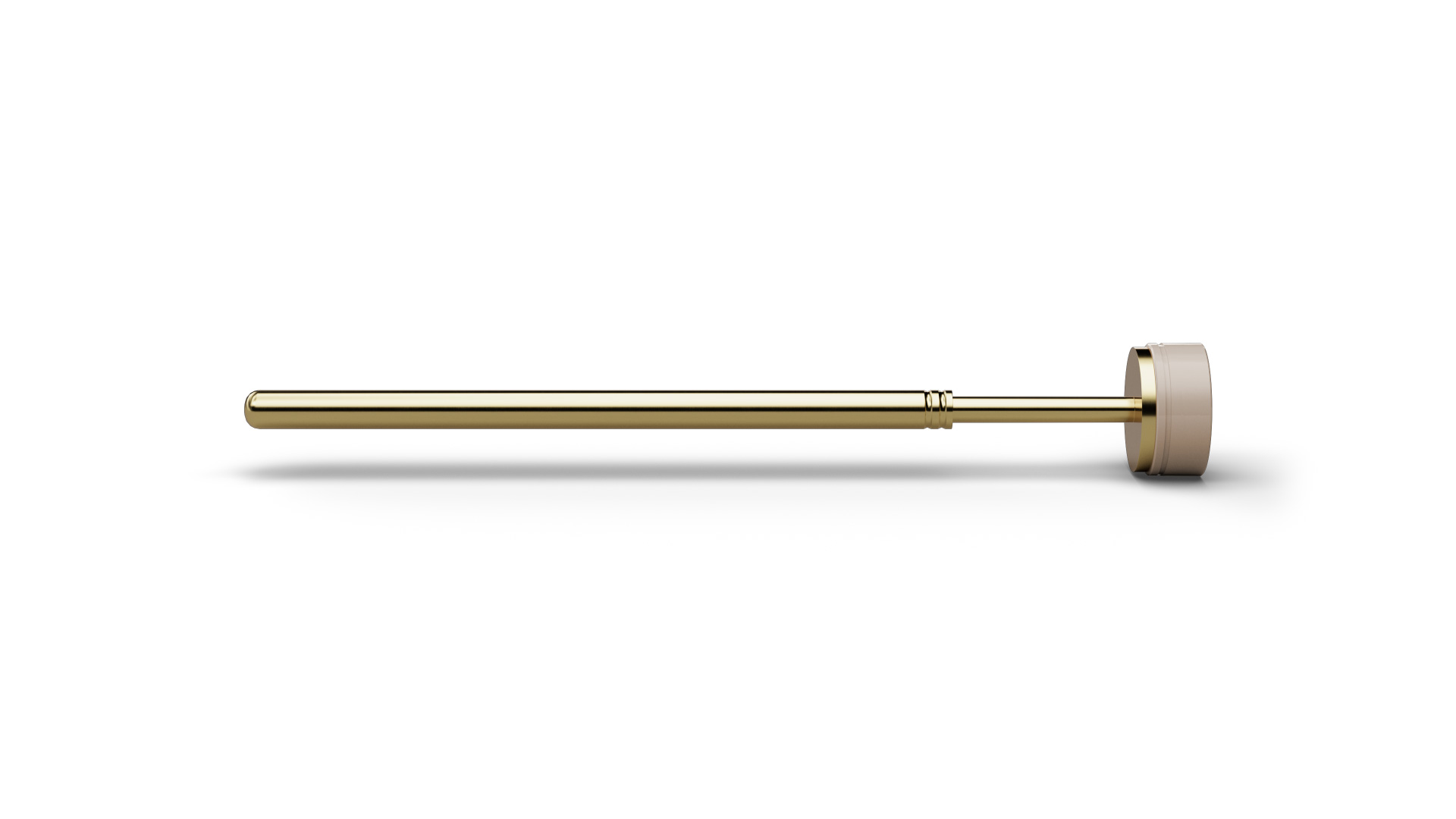

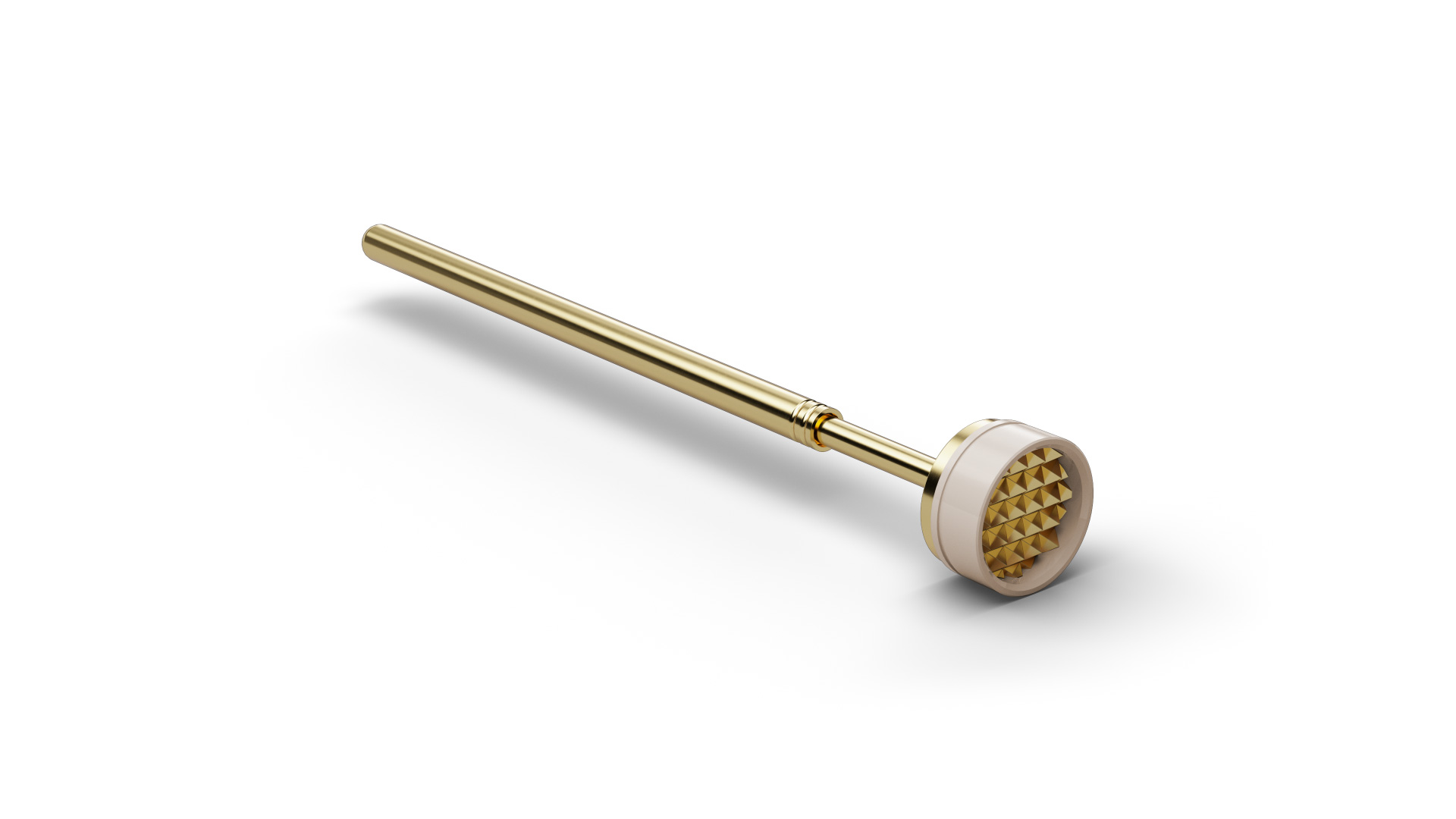

The Contact Probe F10006B400G200IK04 (item number 1170803) provides a defined temporary electrical connection within the test setup. With tip style 06 (Serrated stepped), F10006B400G200IK04 is intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F10006B400G200IK04 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 4 mm. For F10006B400G200IK04, spring force is 200 cN at a nominal travel of 4.3 mm. F10006B400G200IK04 is specified for 5 A continuous current.
