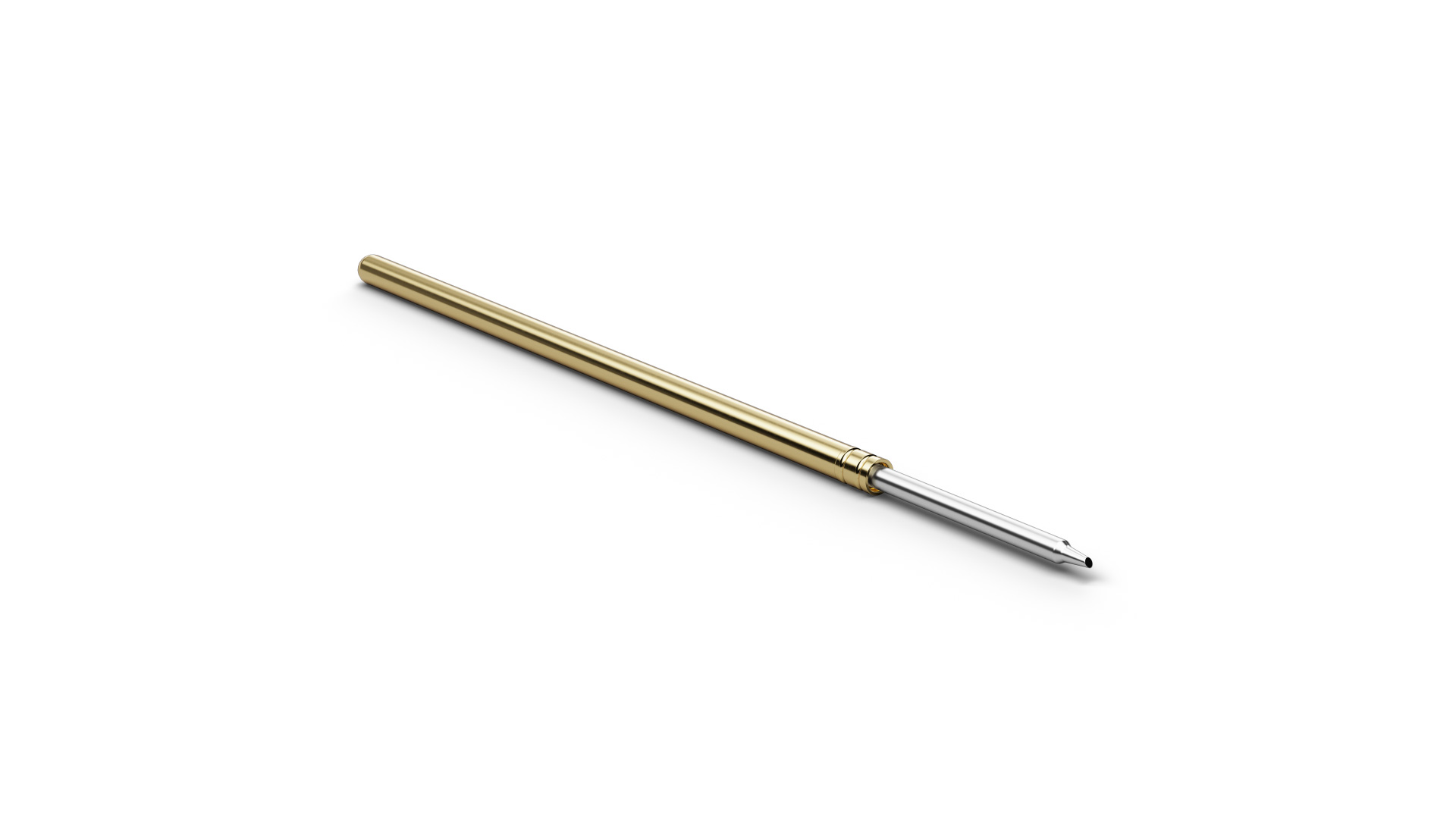

F07544S020P200HP (item number 1171952) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. F07544S020P200HP belongs to the basic probe range for ICT/FCT, where tip geometry, spring force and surface finish are matched to the target test point. On F07544S020P200HP, tip style 44 (Rigid needle with eccentric-cut) has a diameter of 0.26 mm. F07544S020P200HP operates with 200 cN spring force and 4.3 mm nominal travel. For demanding test points, F07544S020P200HP combines functional Progressive Coating with the higher preload of the HP spring, supporting reliable contact on OSP surfaces and areas affected by flux or contamination.
