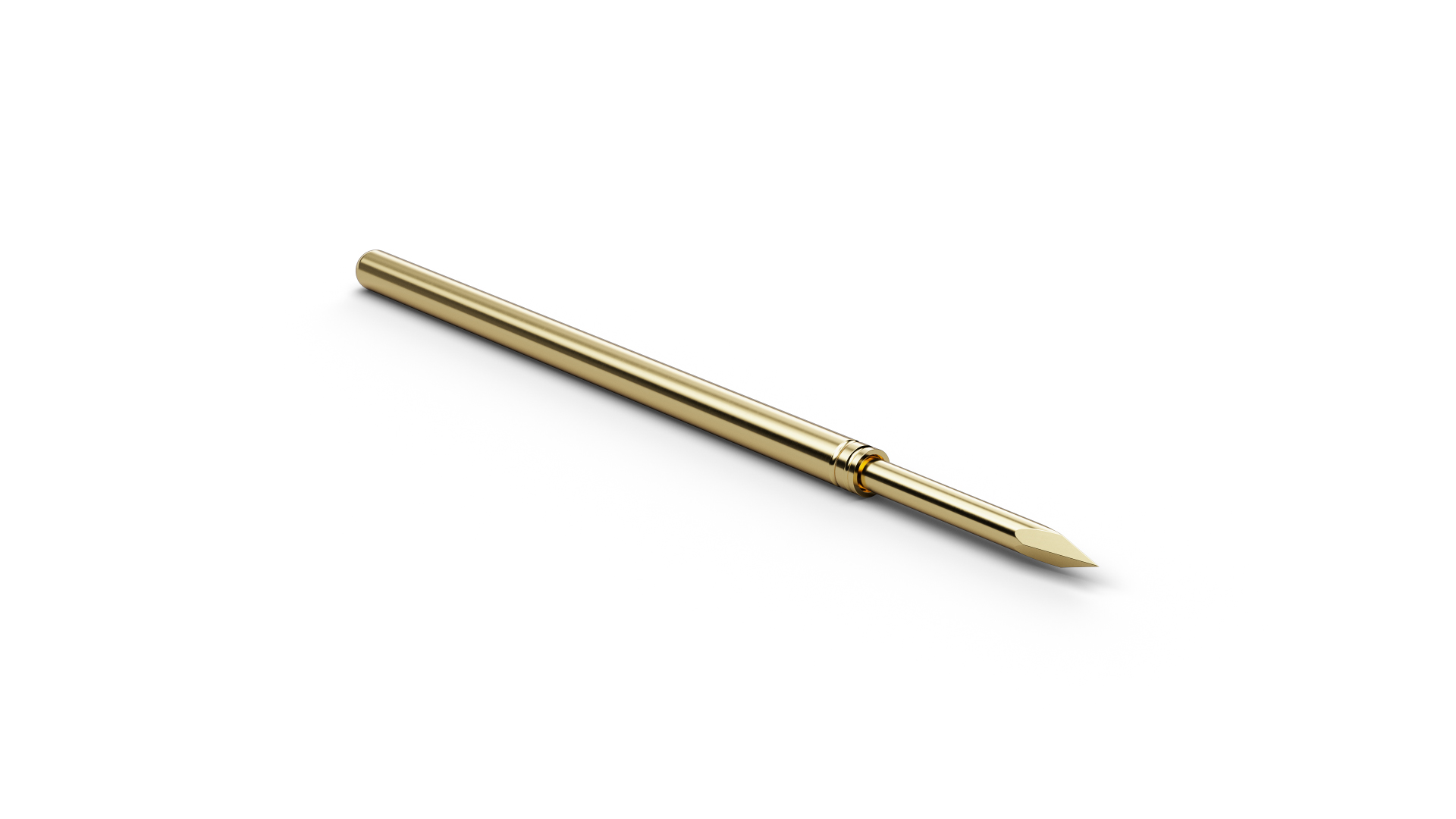

F10033S090L300HP (item number 1172565) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 33 (Square lance 38°), F10033S090L300HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10033S090L300HP combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. For F10033S090L300HP, spring force is 300 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10033S090L300HP is 5 A.
