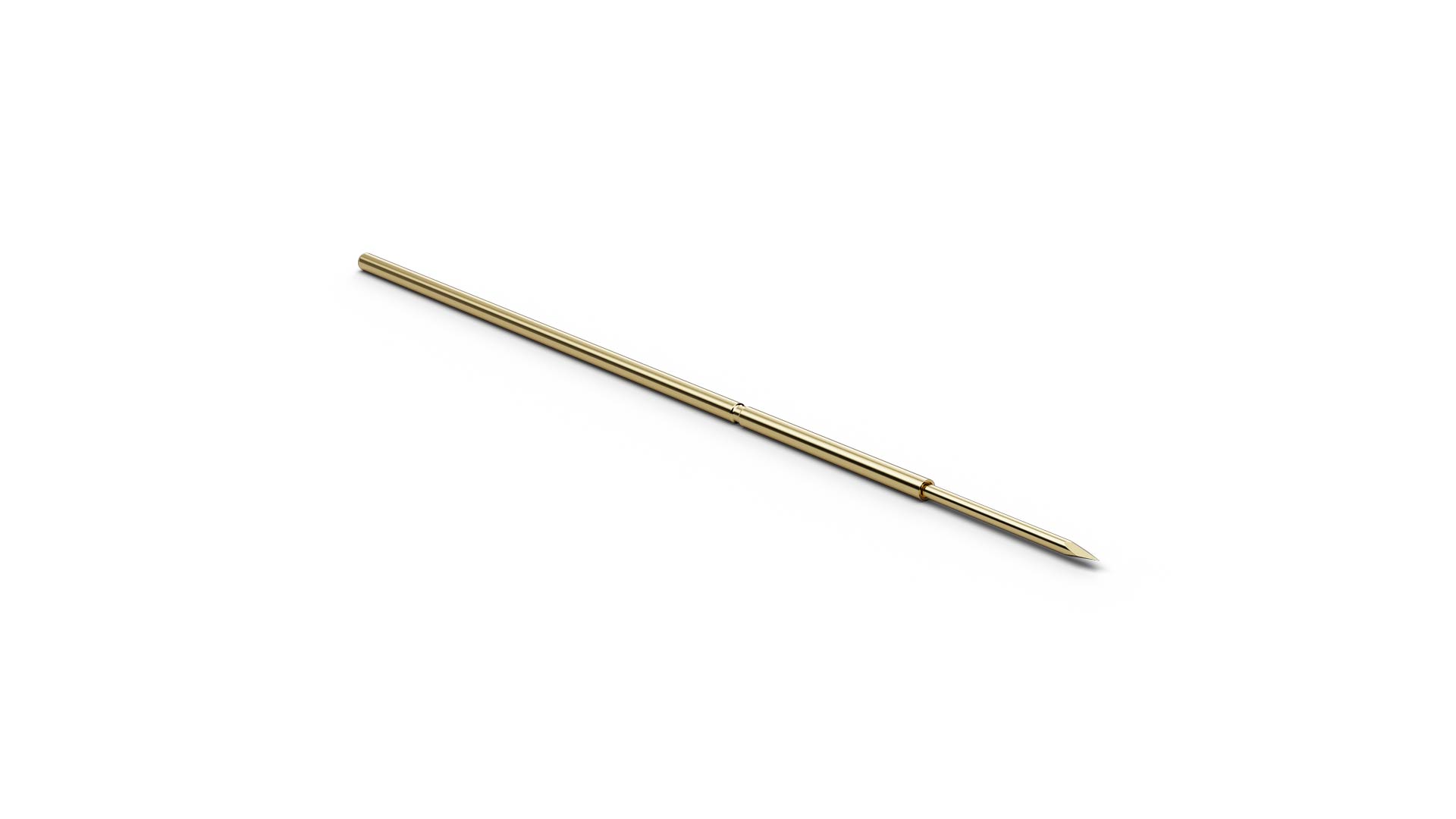

The Basic Contact Probe F78833S050L165 (item number 1018641) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F78833S050L165 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F78833S050L165 combines a pitch of 1.27 mm / 50 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.5 mm. For F78833S050L165, spring force is 165 cN at a nominal travel of 6.4 mm. F78833S050L165 is rated for 2 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F78833S050L165 is made of steel and uses Longtime Gold plating.
