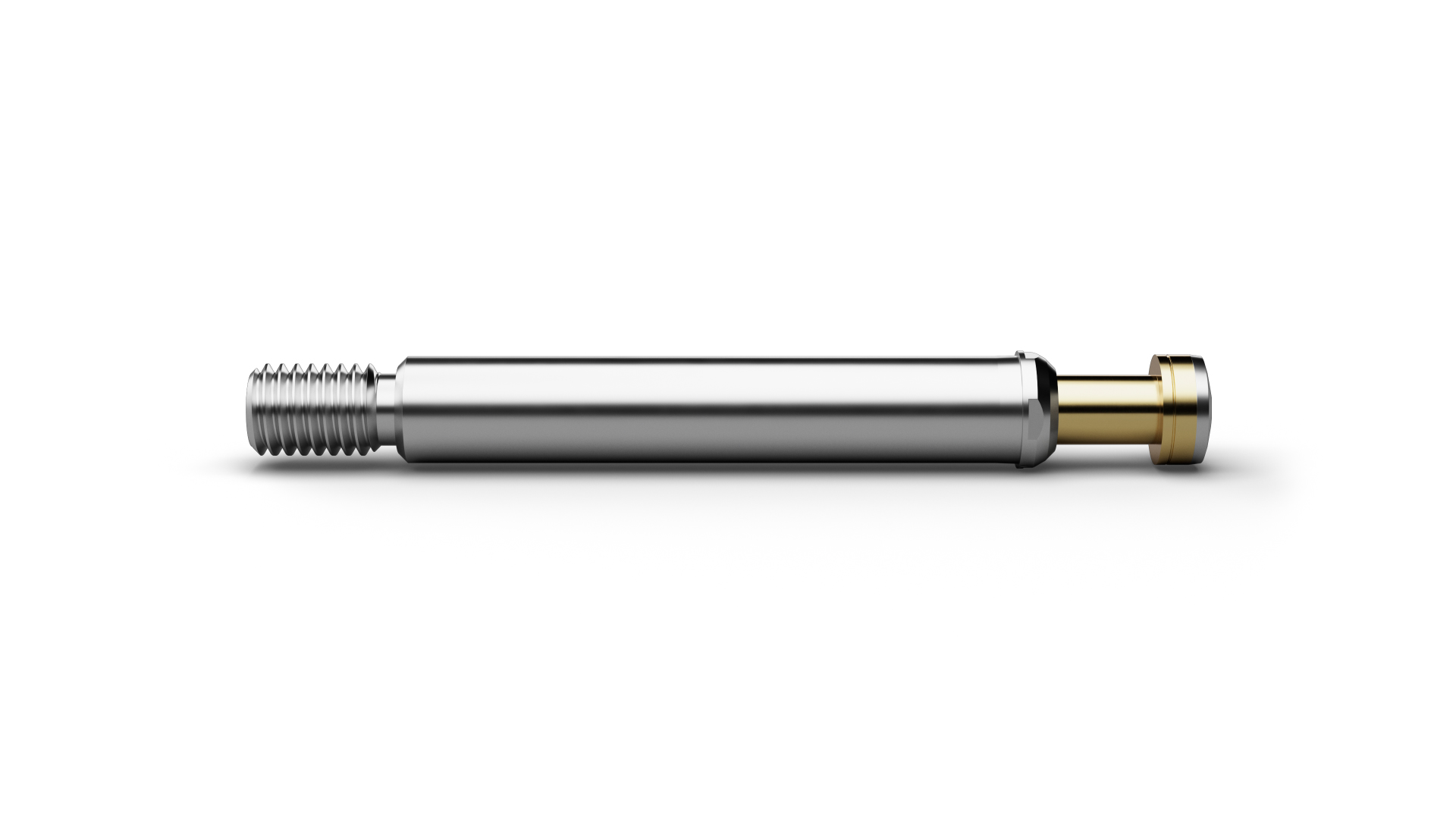

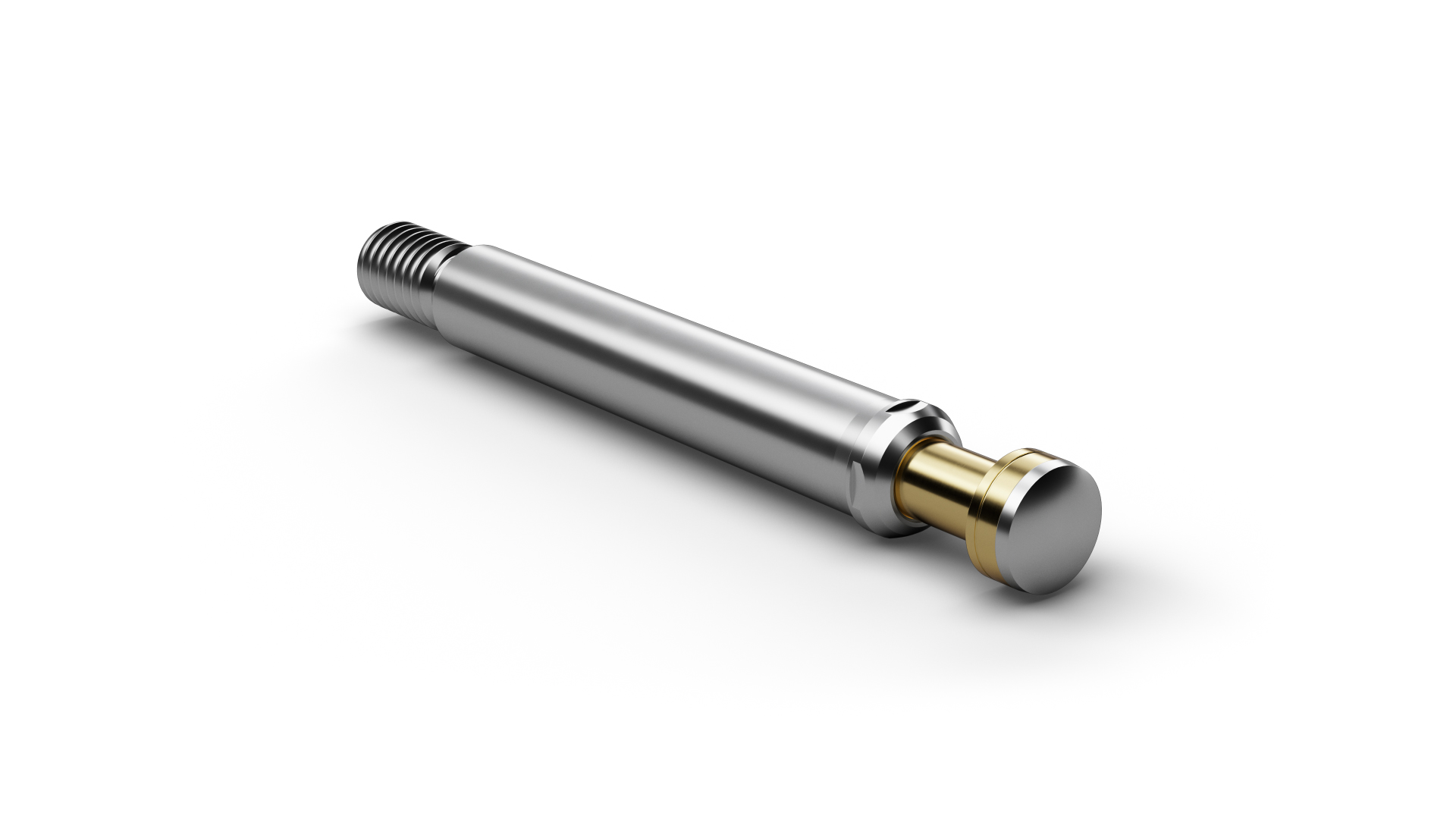

The Coaxial High Current Probe HCF34812A600U1500A (item number 1133494) is designed for safe transmission of high electrical currents in test and contacting applications. HCF34812A600U1500A focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF34812A600U1500A, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF34812A600U1500A includes battery and power-electronics testing. The electrical rating of HCF34812A600U1500A combines 100 A continuous current with 5 mΩ typical contact resistance. Spring force is 1500 cN at a nominal travel of 4.4 mm.
