Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F040 |
| Paso (mm/mil) | 1,00 / 40 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 35.9 |
| Altura sobresaliente (mm) | 7 |
| Diámetro del estilo de punta (mm) | 0.38 |
| Diámetro del casquillo (mm) | 0.62 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 18 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 40 |
| Fuerza del resorte (cN) | 80 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 2 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

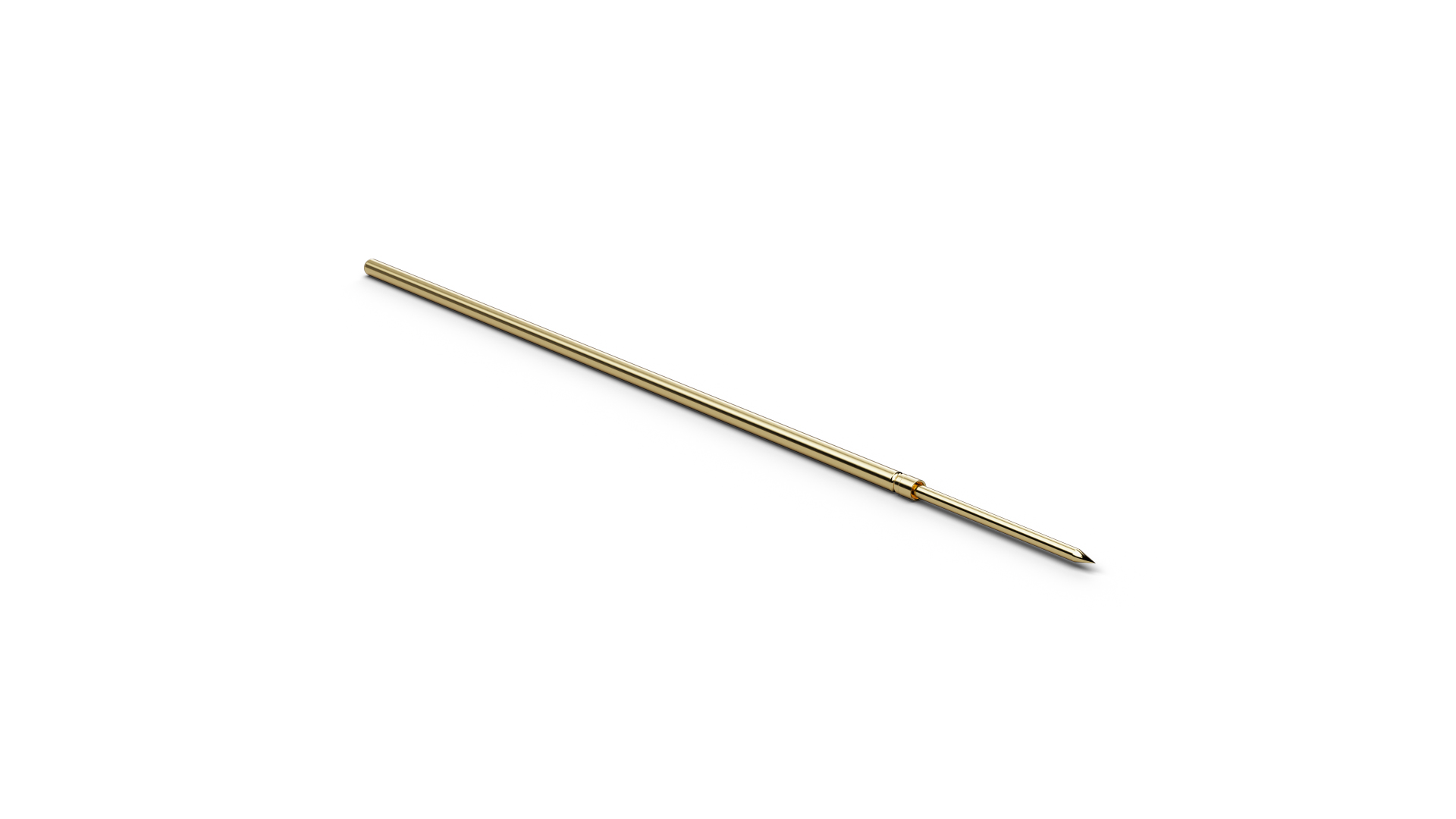

As a Basic Contact Probe, F04018S038L080 (item number 1000144) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F04018S038L080 combines ICT/FCT use with a geometry intended for solder pads and vias. The design combines a pitch of 1 mm / 40 mil with tip style 18 (Conical 30°) and a tip diameter of 0.38 mm. F04018S038L080 operates with 80 cN spring force and 4.3 mm nominal travel. The electrical rating of F04018S038L080 combines 2 A continuous current with 20 mΩ typical contact resistance. The plunger in F04018S038L080 is made of steel and uses Longtime Gold plating.
