Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCF733 |
| Paso (mm/mil) | 4,00 / 157 |
| Temperatura | -45°C...+200°C |
| Definición adicional | HP |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 28.3 |
| Altura sobresaliente (mm) | 10.3 |
| Diámetro del estilo de punta (mm) | 2.3 |
| Diámetro del casquillo (mm) | 2.65 |
| Diámetro del collar (mm) | 3.6 |
| Diámetro del anillo de presión (mm) | 3.6 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 14 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 280 |
| Fuerza del resorte (cN) | 600 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M2 |
| Tamaño de herramienta (mm) | 3,0 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 30 |
| Resistencia de contacto típica (mΩ) | 8 |
Gráficos
Beschreibung des Produkts

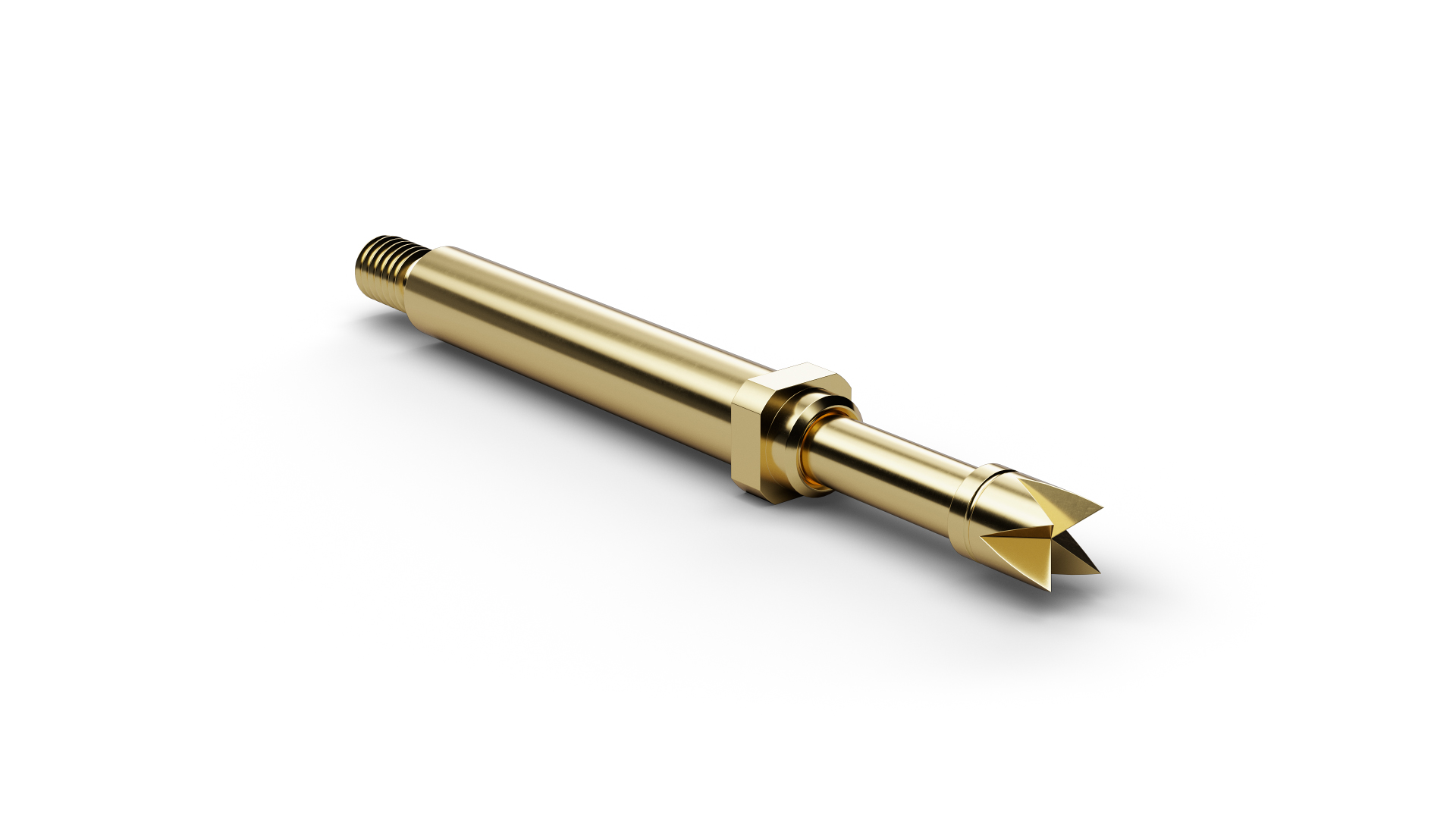

The High Current Probe HCF73314B230G600HP (item number 1000234) is designed for safe transmission of high electrical currents in test and contacting applications. HCF73314B230G600HP focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF73314B230G600HP, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF73314B230G600HP includes battery and power-electronics testing. The electrical rating of HCF73314B230G600HP combines 30 A continuous current with 8 mΩ typical contact resistance. HCF73314B230G600HP operates with 600 cN spring force and 4 mm nominal travel.
