Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F111 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 16.5 |
| Altura sobresaliente (mm) | 4 |
| Diámetro del estilo de punta (mm) | 0.53 |
| Diámetro del casquillo (mm) | 0.69 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 18 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Nickel |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 20 |
| Fuerza del resorte (cN) | 85 |
| Recorrido nominal (mm) | 2 |
| Recorrido máximo (mm) | 2.8 |
| Precisión de punteo +/- (mm) | 0.09 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 65 |
Gráficos
Beschreibung des Produkts

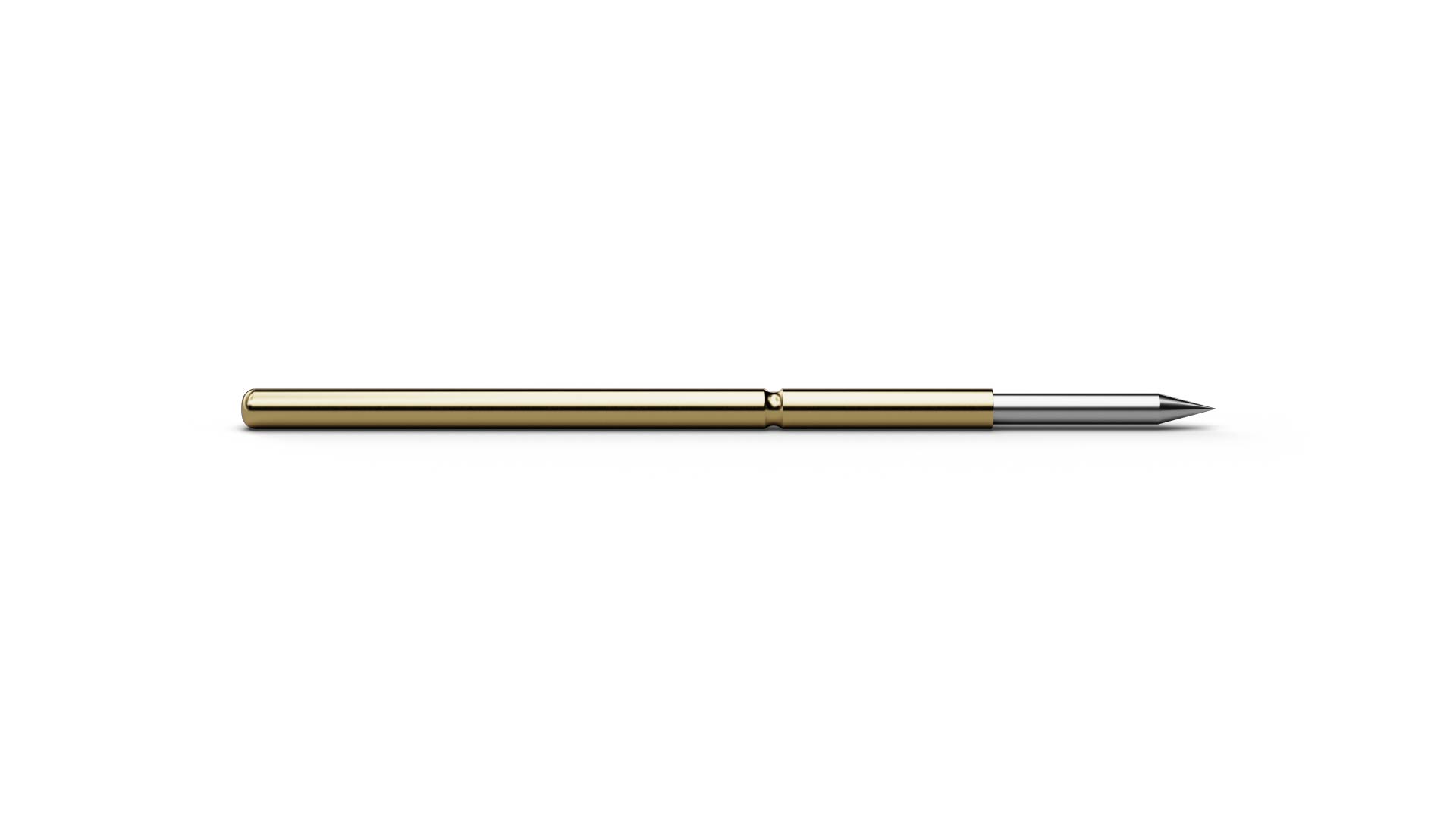

F11118S053N085 (item number 1001351) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 18 (Conical 30°), F11118S053N085 combines ICT/FCT use with a geometry intended for solder pads and vias. F11118S053N085 combines a pitch of 1.27 mm / 50 mil with tip style 18 (Conical 30°) and a tip diameter of 0.53 mm. F11118S053N085 operates with 85 cN spring force and 2 mm nominal travel. F11118S053N085 is rated for 3 A continuous current with a typical contact resistance of 65 mΩ. The plunger in F11118S053N085 is made of steel and is Nickel-plated.
