Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F701 |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 27.5 |
| Altura sobresaliente (mm) | 12.5 |
| Diámetro del estilo de punta (mm) | 1.15 |
| Diámetro del casquillo (mm) | 1 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 07 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 30 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

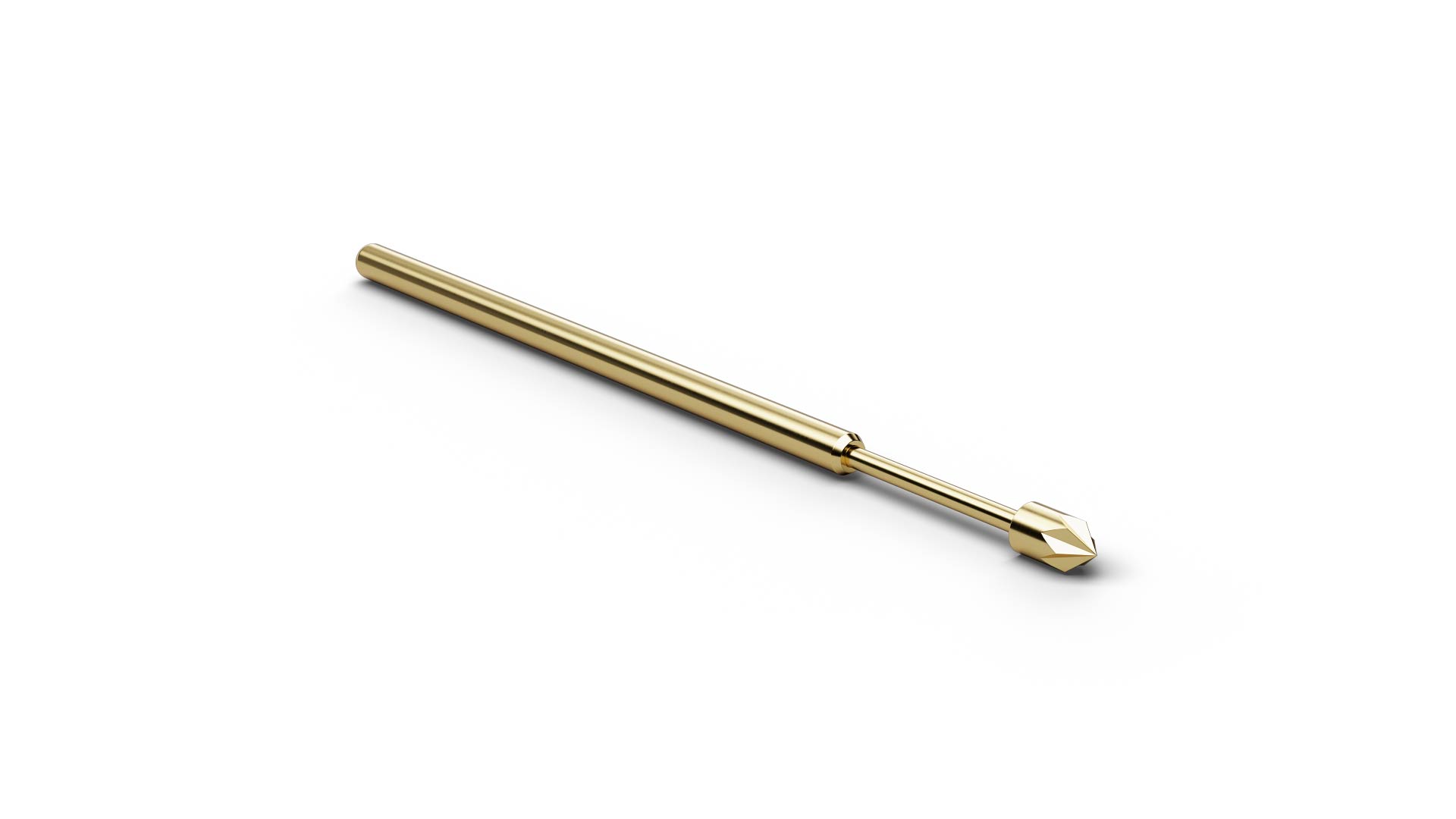

F70107S115L150 (item number 1001491) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 07 (Hexagonal 90° stepped), F70107S115L150 combines ICT/FCT use with a geometry intended for plated vias and pads where sharp edges penetrate contamination and oxide layers. The design combines a pitch of 1.9 mm / 75 mil with tip style 07 (Hexagonal 90° stepped) and a tip diameter of 1.15 mm. F70107S115L150 operates with 150 cN spring force and 4 mm nominal travel. F70107S115L150 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F70107S115L150 is made of steel and uses Longtime Gold plating.
