Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F585 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 33.3 |
| Altura sobresaliente (mm) | 8.4 |
| Diámetro del estilo de punta (mm) | 1.05 |
| Diámetro del casquillo (mm) | 1.37 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 33 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 110 |
| Fuerza del resorte (cN) | 300 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

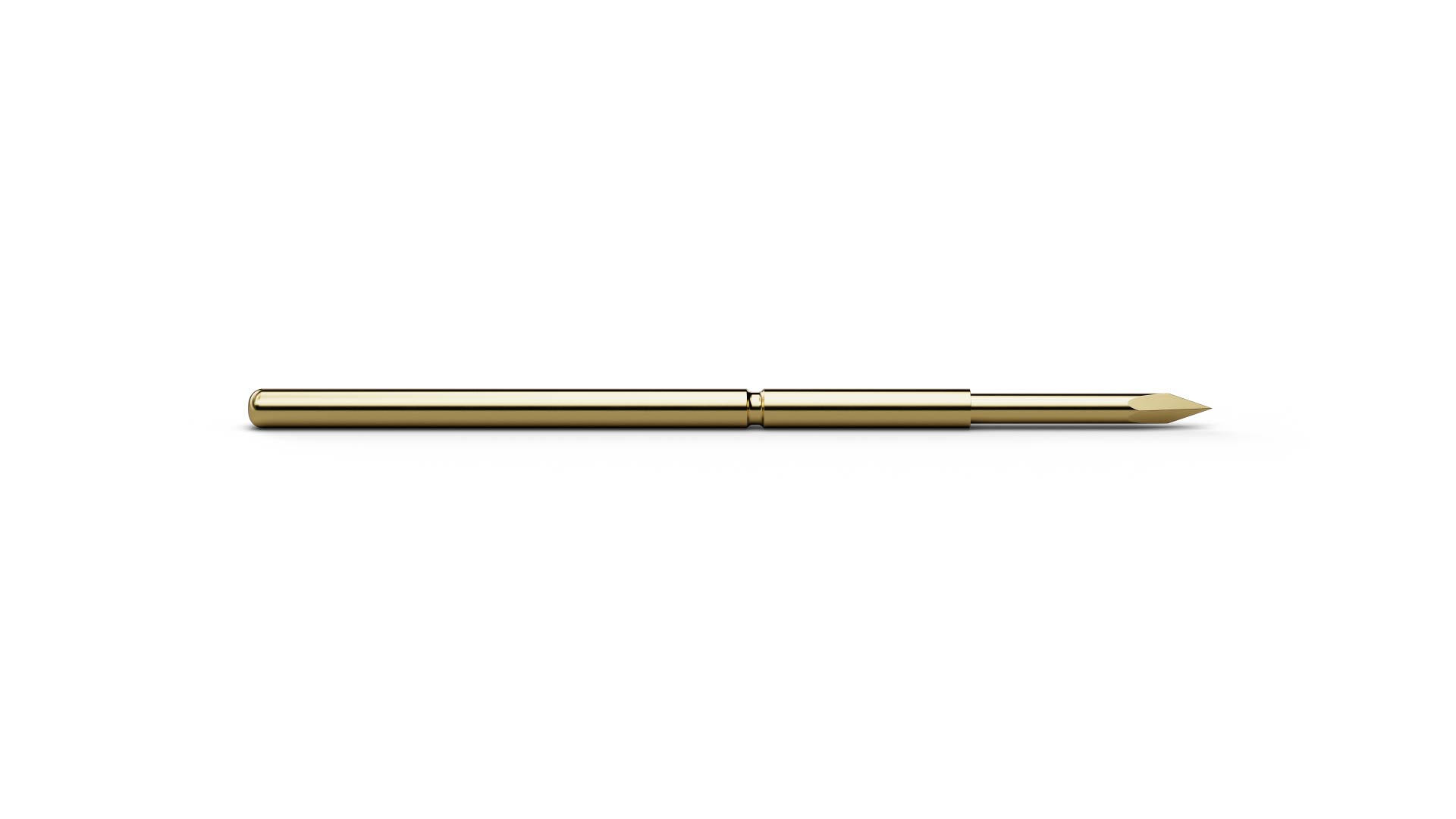

The Basic Contact Probe F58533S105L300 (item number 1001502) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F58533S105L300 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F58533S105L300 combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 1.05 mm. For F58533S105L300, spring force is 300 cN at a nominal travel of 4.3 mm. The electrical rating of F58533S105L300 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F58533S105L300 is made of steel and uses Longtime Gold plating.
