Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F772 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 32 |
| Altura sobresaliente (mm) | 10 |
| Diámetro del estilo de punta (mm) | 2 |
| Diámetro del casquillo (mm) | 1.66 |
| Diámetro del collar (mm) | 2.04 |
| Diámetro del anillo de presión (mm) | 2.04 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 14 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Nickel silver |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 60 |
| Fuerza del resorte (cN) | 300 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 25 |
Gráficos
Beschreibung des Produkts

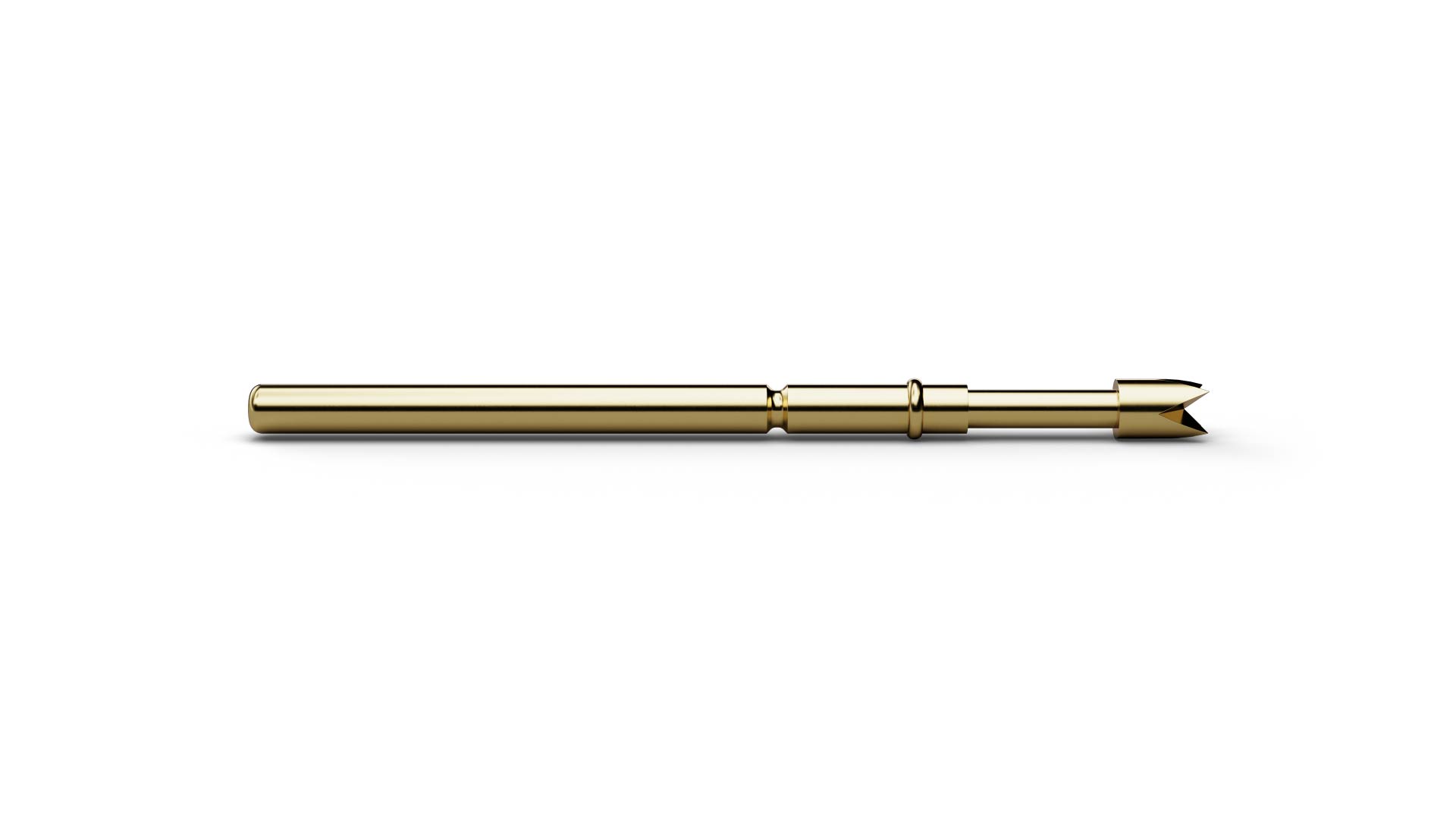

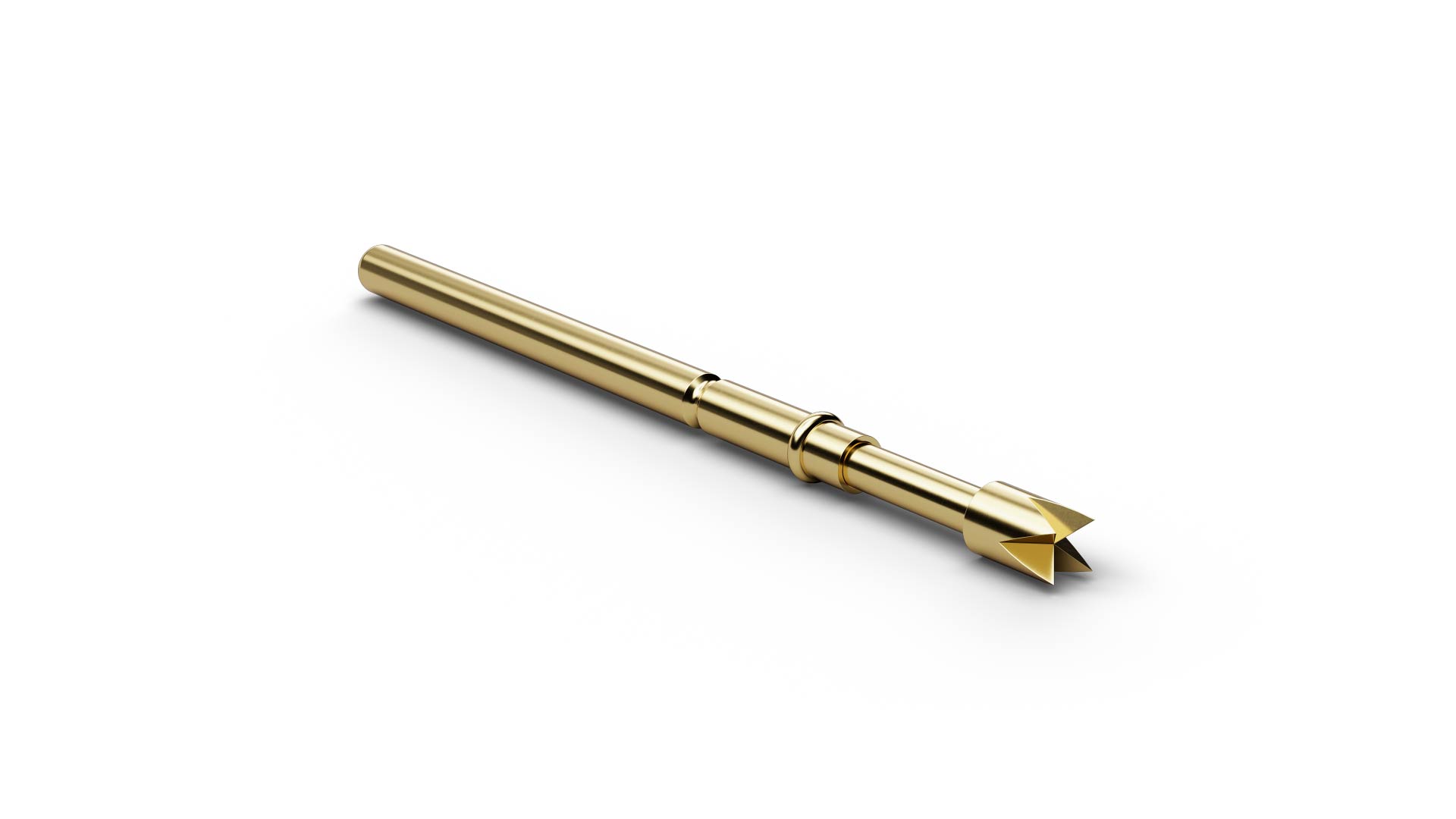

The Basic Contact Probe F77214S200L300 (item number 1001563) is a spring-loaded probe for temporary electrical contact with test points. With tip style 14 (4-point crown stepped (self-cleaning)), F77214S200L300 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F77214S200L300 combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 2 mm. F77214S200L300 operates with 300 cN spring force and 4 mm nominal travel. F77214S200L300 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F77214S200L300 is made of steel and uses Longtime Gold plating.
