Datos técnicos
| General | |
|---|---|
| Tipo/Familia | H885 |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 15.2 |
| Diámetro del anillo de presión (mm) | 4.2 |
| Diámetro exterior (mm) | 3.8 |
| Altura del collar (mm) | 0.2 |
| Materiales y superficies | |
|---|---|
| Material, Recubrimiento | Plastic, Uncoated |
Gráficos
Beschreibung des Produkts

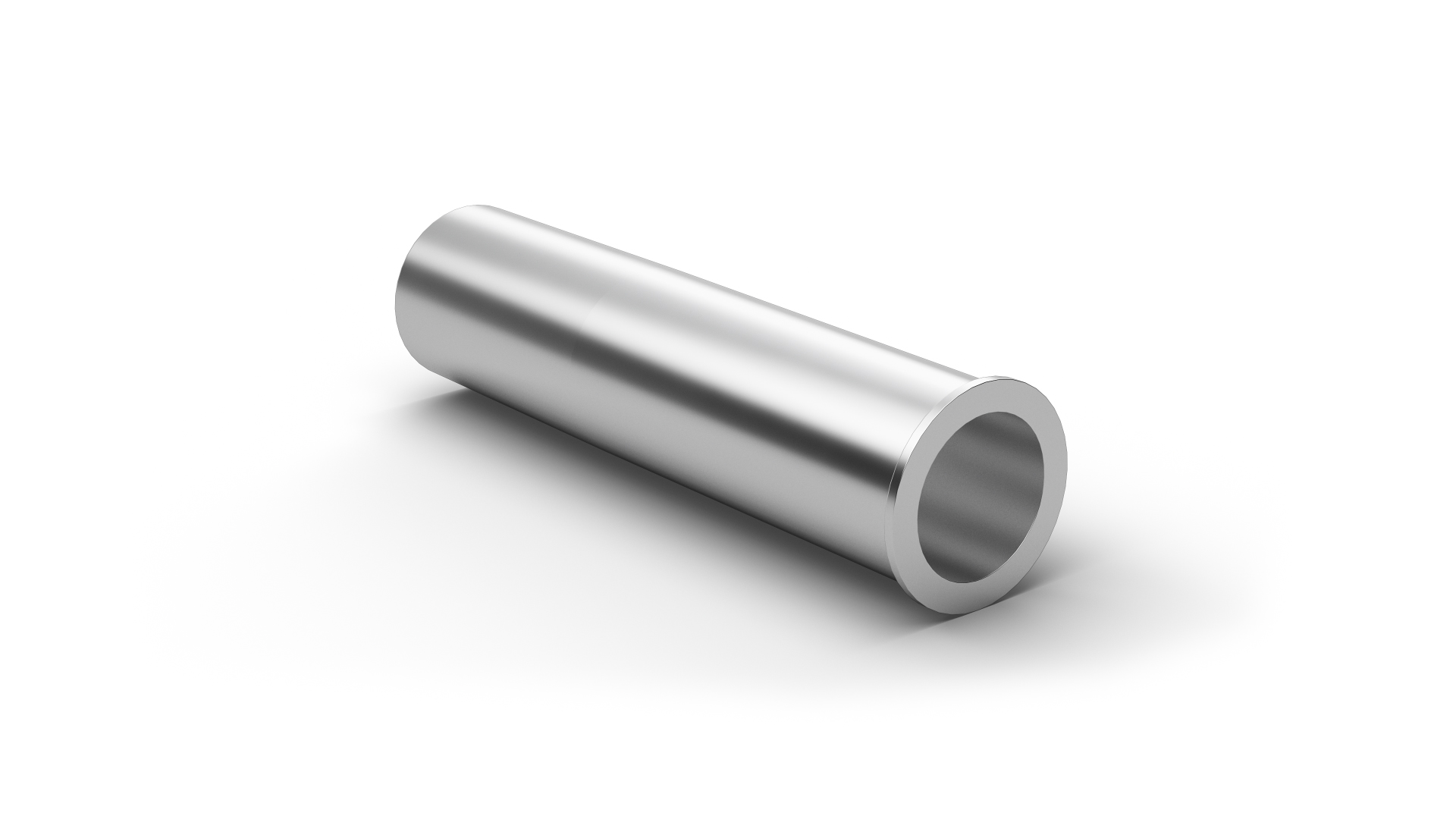

The receptacle H885IS (item number 1003079) is designed for the compatible Switch Probe in the test fixture. As a Receptacle, H885IS guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H885IS, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
