Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F887-NO |
| Paso (mm/mil) | 4,00 / 157 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 24.5 |
| Altura sobresaliente (mm) | 9 |
| Diámetro del estilo de punta (mm) | 2 |
| Diámetro del casquillo (mm) | 2.46 |
| Diámetro del collar (mm) | 3.5 |
| Diámetro del anillo de presión (mm) | 3.5 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 60 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M3X0,35 |
| Tamaño de herramienta (mm) | 2,5 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 10 |
| Resistencia de contacto típica (mΩ) | 40 |
| Recorrido del interruptor (mm) | 1.7 |
| Corriente continua (A) 2 | 1 |
Gráficos
Beschreibung des Produkts

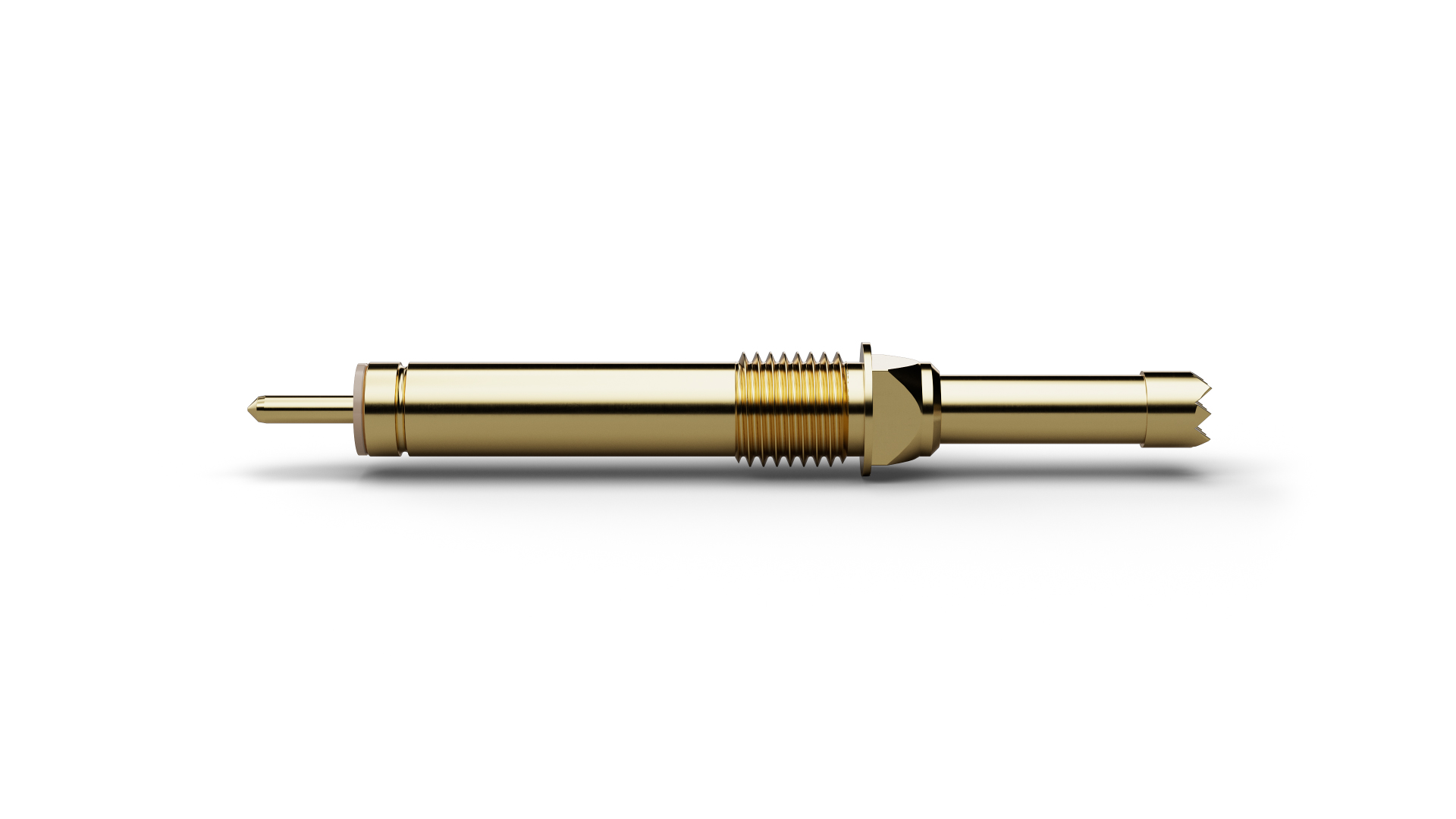

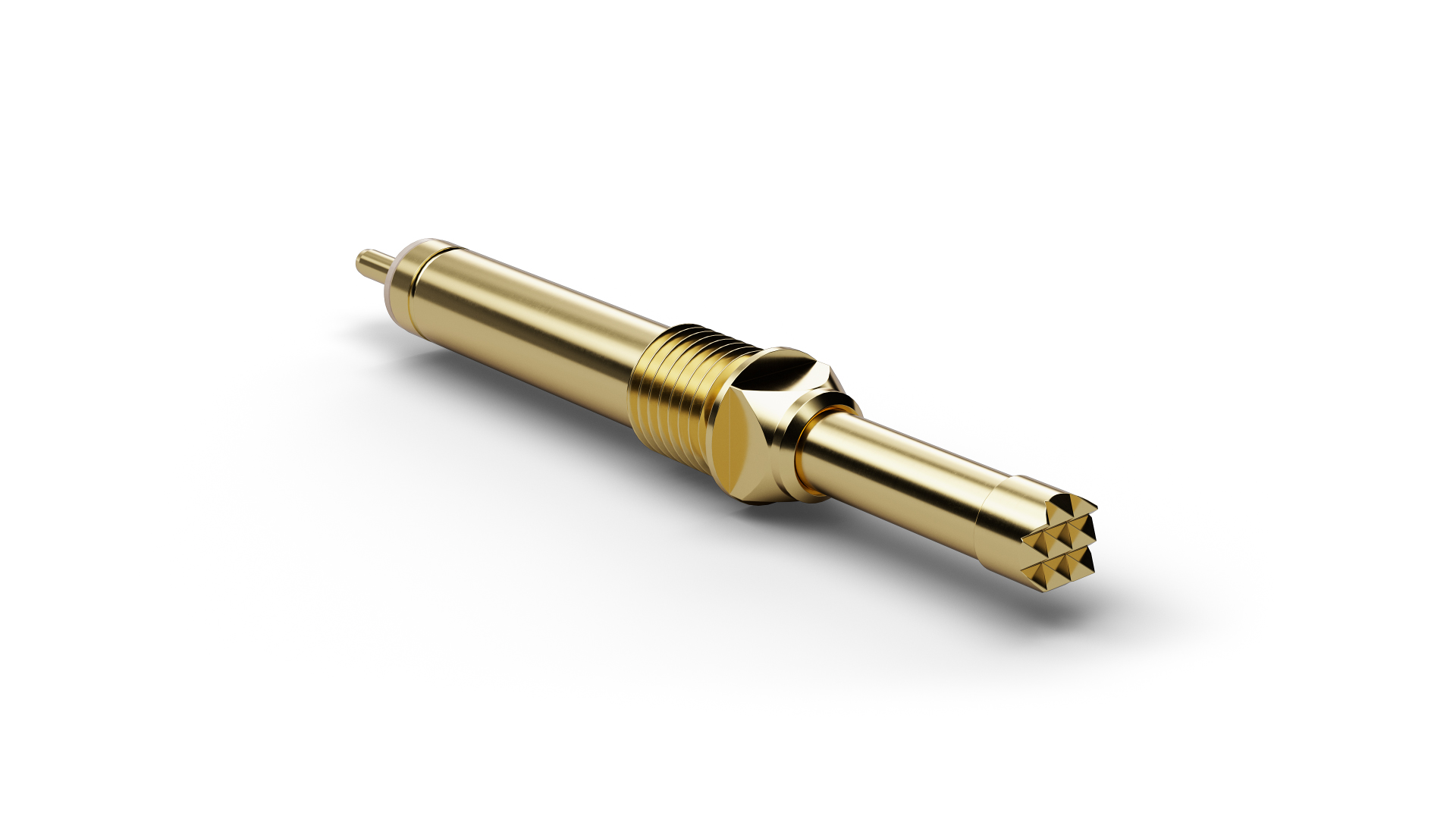

The Normally Open Switch Probe F88706B200G150 (item number 1004964) combines spring-loaded contacting with a defined switching or sensing function. F88706B200G150 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88706B200G150, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F88706B200G150, spring force is 150 cN at a nominal travel of 4 mm. F88706B200G150 is rated for 10 A continuous current with a typical contact resistance of 40 mΩ. F88706B200G150 combines a pitch of 4 mm / 157 mil with tip style 06 (Serrated stepped) and a tip diameter of 2 mm.
