Datos técnicos
| General | |
|---|---|
| Tipo/Familia | H775 |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 40 |
| Diámetro del anillo de presión (mm) | 4.3 |
| Diámetro exterior (mm) | 4 |
| Altura del collar (mm) | 0.3 |
| Materiales y superficies | |
|---|---|
| Material, Recubrimiento | Brass, Gold |
| Especificaciones mecánicas | |
|---|---|
| Conexión | Solder Connection |
Gráficos
Beschreibung des Produkts

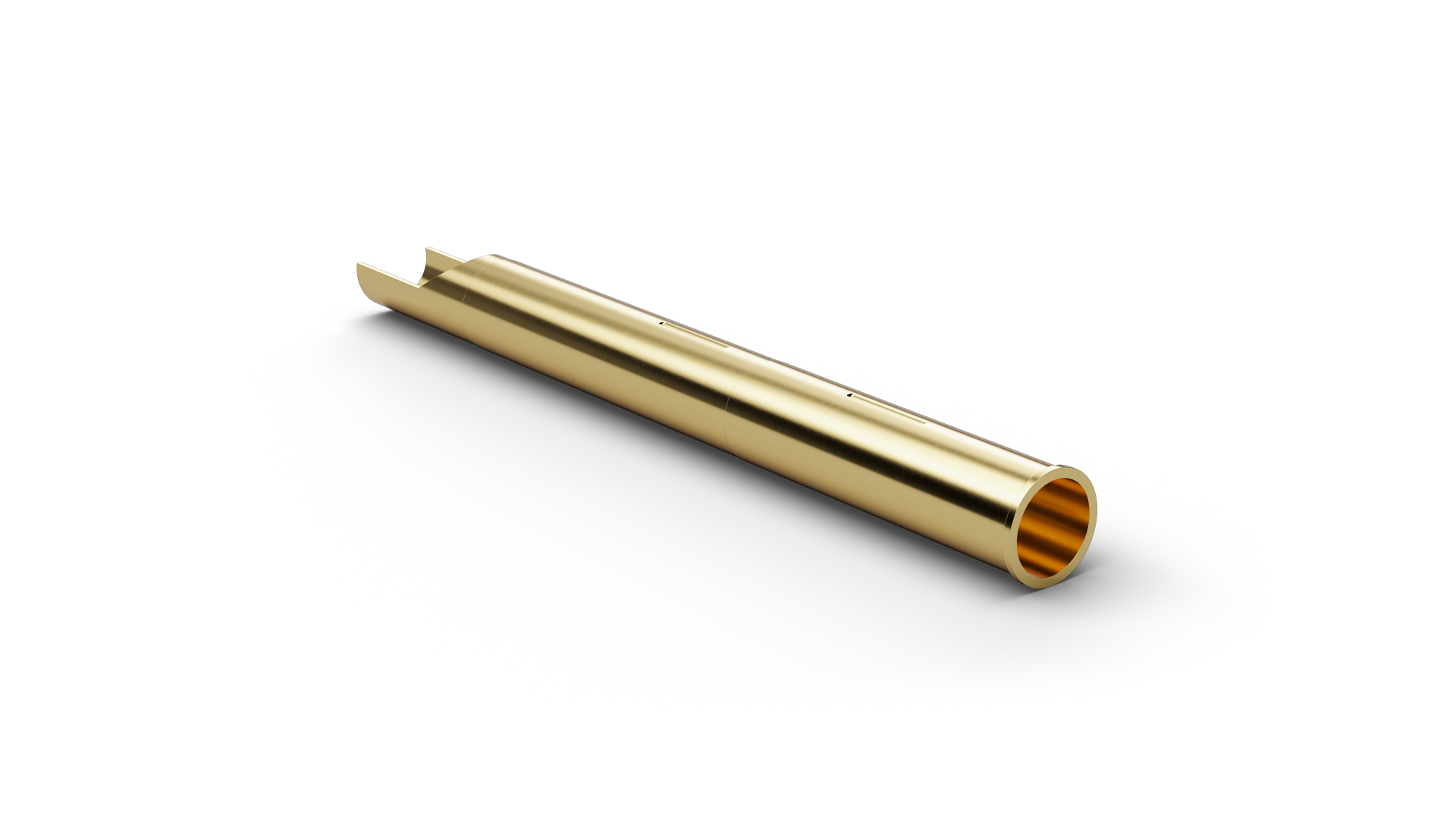

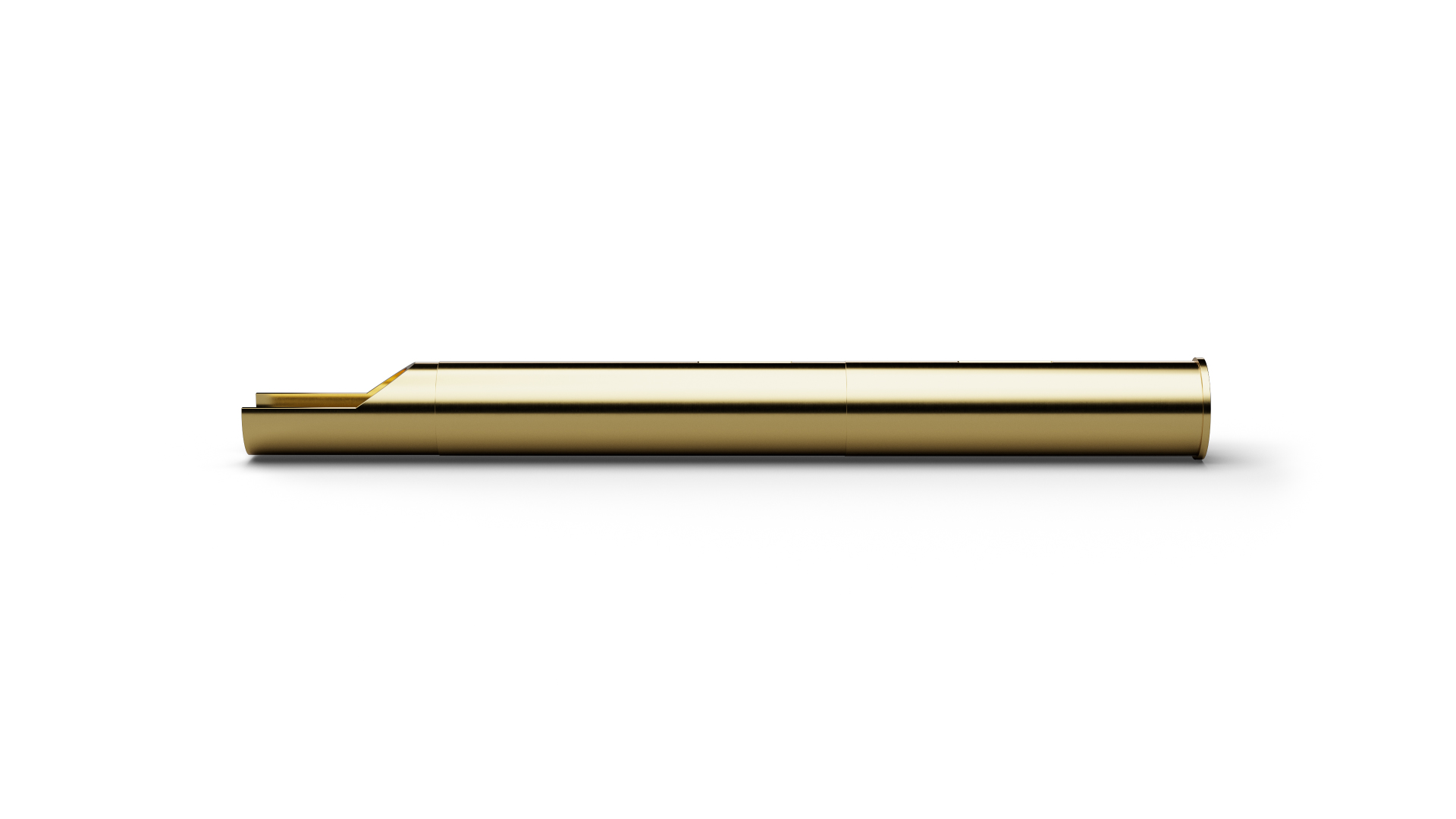

The receptacle H775LA (item number 1005064) is designed for the compatible High Current Probe in the test fixture. As a Receptacle, H775LA guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. When selecting H775LA, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
