Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | VF4 |
| Paso (mm/mil) | 4,00 / 157 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 69.7 |
| Altura sobresaliente (mm) | 34.8 |
| Diámetro del estilo de punta (mm) | 1.8 |
| Diámetro del casquillo (mm) | 3 |
| Diámetro del collar (mm) | 3.6 |
| Diámetro del anillo de presión (mm) | 3.6 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 16 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 300 |
| Fuerza del resorte (cN) | 1000 |
| Recorrido nominal (mm) | 5 |
| Recorrido máximo (mm) | 5.5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M2,5X0,35 |
| Tamaño de herramienta (mm) | 2,5 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 10 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos
Beschreibung des Produkts

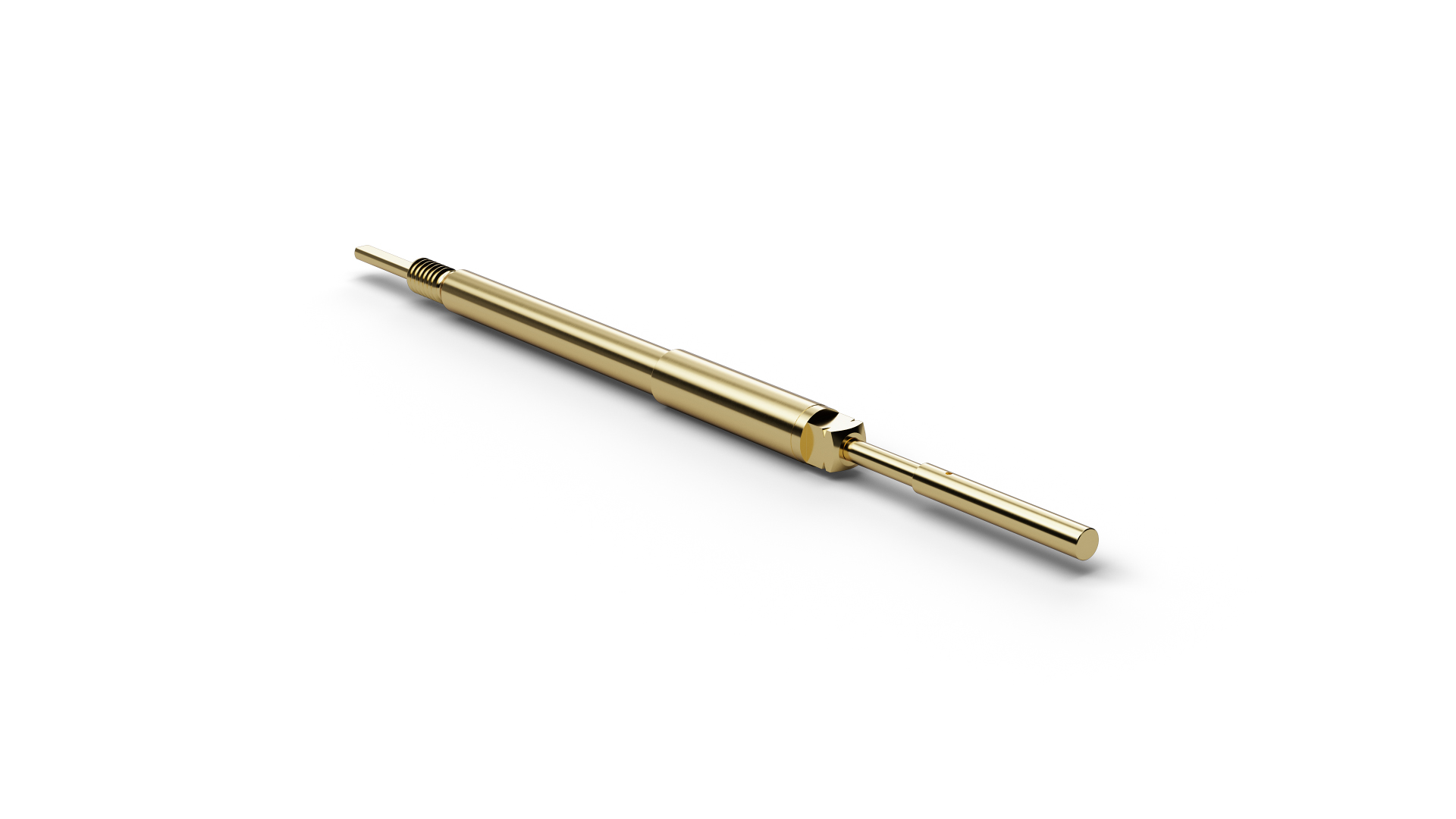

The Push Back Probe VF416B180G10 (item number 1005149) is designed to verify that terminals are correctly locked in connector housings. VF416B180G10 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. For VF416B180G10, spring force is 1000 cN at a nominal travel of 5 mm. Pointing accuracy for VF416B180G10 is specified as ±0.1 mm. The electrical rating of VF416B180G10 combines 10 A continuous current with 30 mΩ typical contact resistance. For installation, VF416B180G10 uses an M2.5 x 0.35 thread.
