Datos técnicos

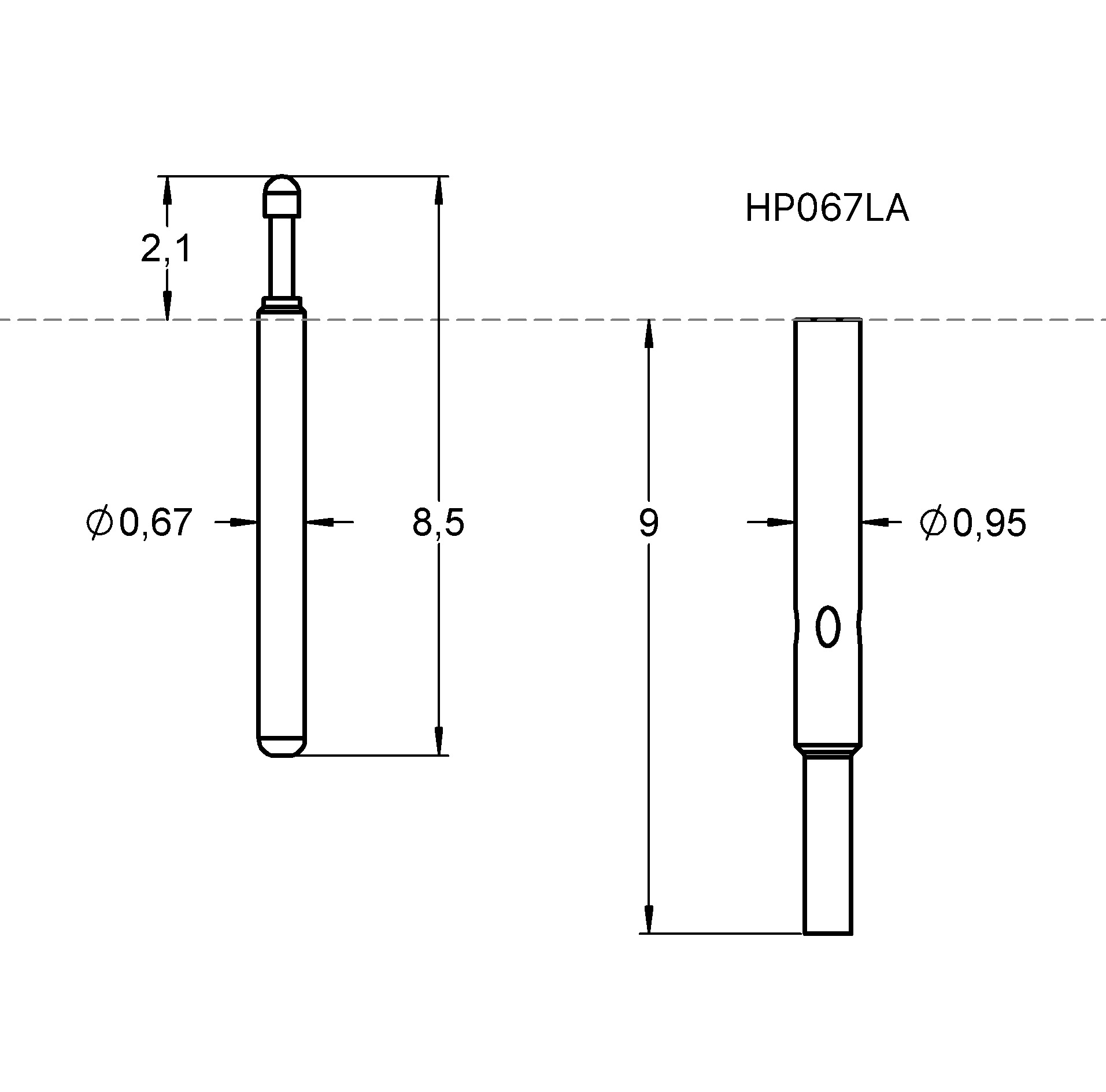

| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | P / P067-L085 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+200°C |
| Definición adicional | H |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 8.5 |
| Altura sobresaliente (mm) | 2.4 |
| Diámetro del estilo de punta (mm) | 0.5 |
| Diámetro del casquillo (mm) | 0.67 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 12 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 34 |
| Fuerza del resorte (cN) | 60 |
| Recorrido nominal (mm) | 0.6 |
| Recorrido máximo (mm) | 1.1 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

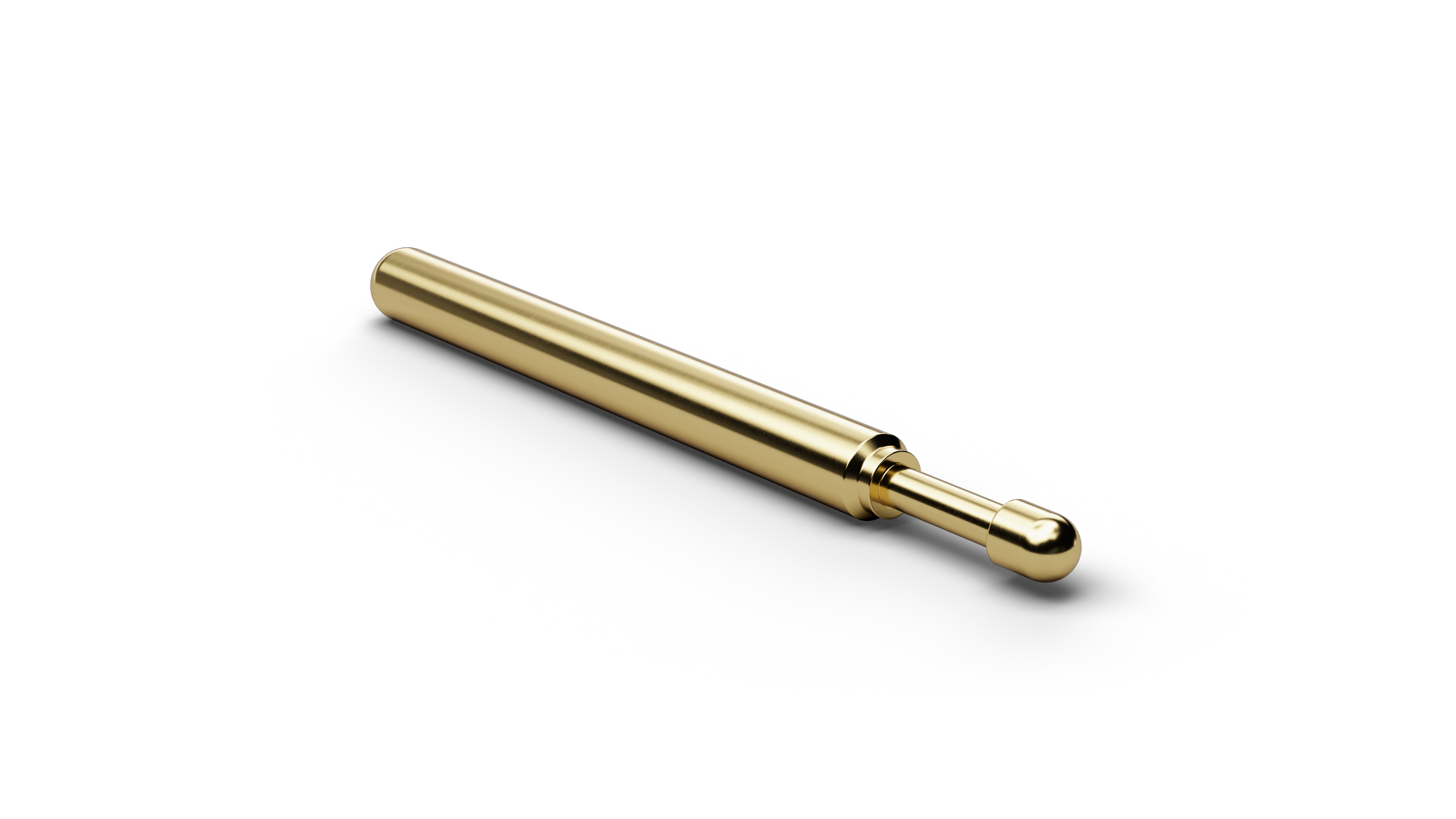

The Pogo Connector P06712B050G060L085H (item number 1006012) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P06712B050G060L085H is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P06712B050G060L085H is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. For a pitch of 1.27 mm / 50 mil, spring force is 60 cN at a nominal travel of 0.6 mm. P06712B050G060L085H is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. Tip style 12 (Spherical stepped) has a diameter of 0.5 mm. The H suffix on P06712B050G060L085H denotes the high-temperature variant, designed for applications up to 200 °C.
