Datos técnicos
| General | |
|---|---|
| Tipo/Familia | F883-NC |
| Paso (mm/mil) | 3,50 / 138 |
| Temperatura | -45°C...+100°C |
| Definición adicional | SM |

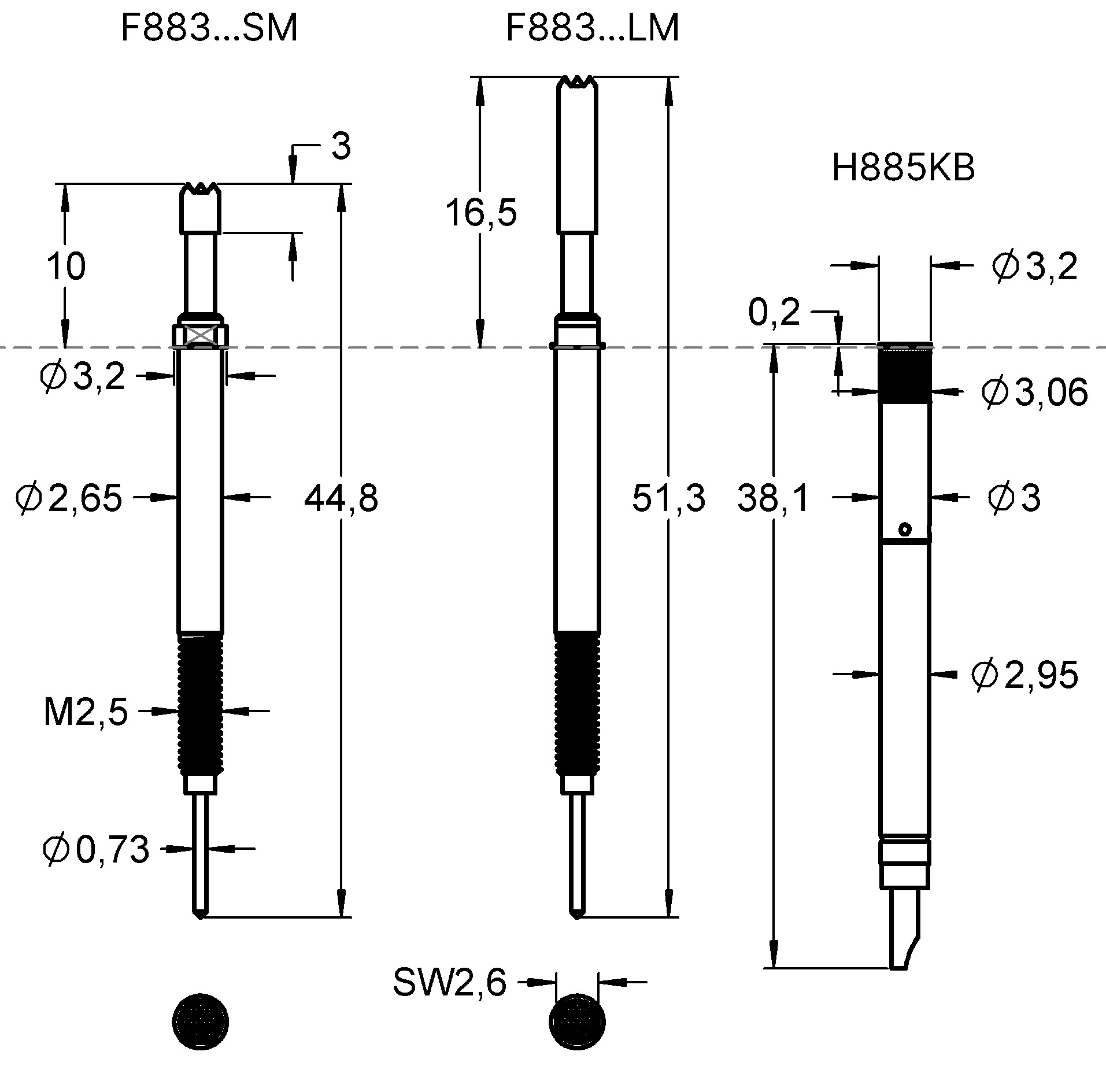

| Dimensiones | |
|---|---|
| Longitud total (mm) | 44.8 |
| Altura sobresaliente (mm) | 10 |
| Diámetro del estilo de punta (mm) | 1.8 |
| Diámetro del casquillo (mm) | 2.65 |
| Diámetro del collar (mm) | 3.2 |
| Diámetro del anillo de presión (mm) | 3.2 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 16 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 40 |
| Fuerza del resorte (cN) | 230 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.09 |
| Rosca | M2,5 |
| Tamaño de herramienta (mm) | 2,6 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 10 |
| Resistencia de contacto típica (mΩ) | 50 |
| Tipo de interruptor | NC (Normal Close) |
| Recorrido del interruptor (mm) | 1.7 |
| Corriente continua (A) 2 | 1 |
Gráficos
Beschreibung des Produkts

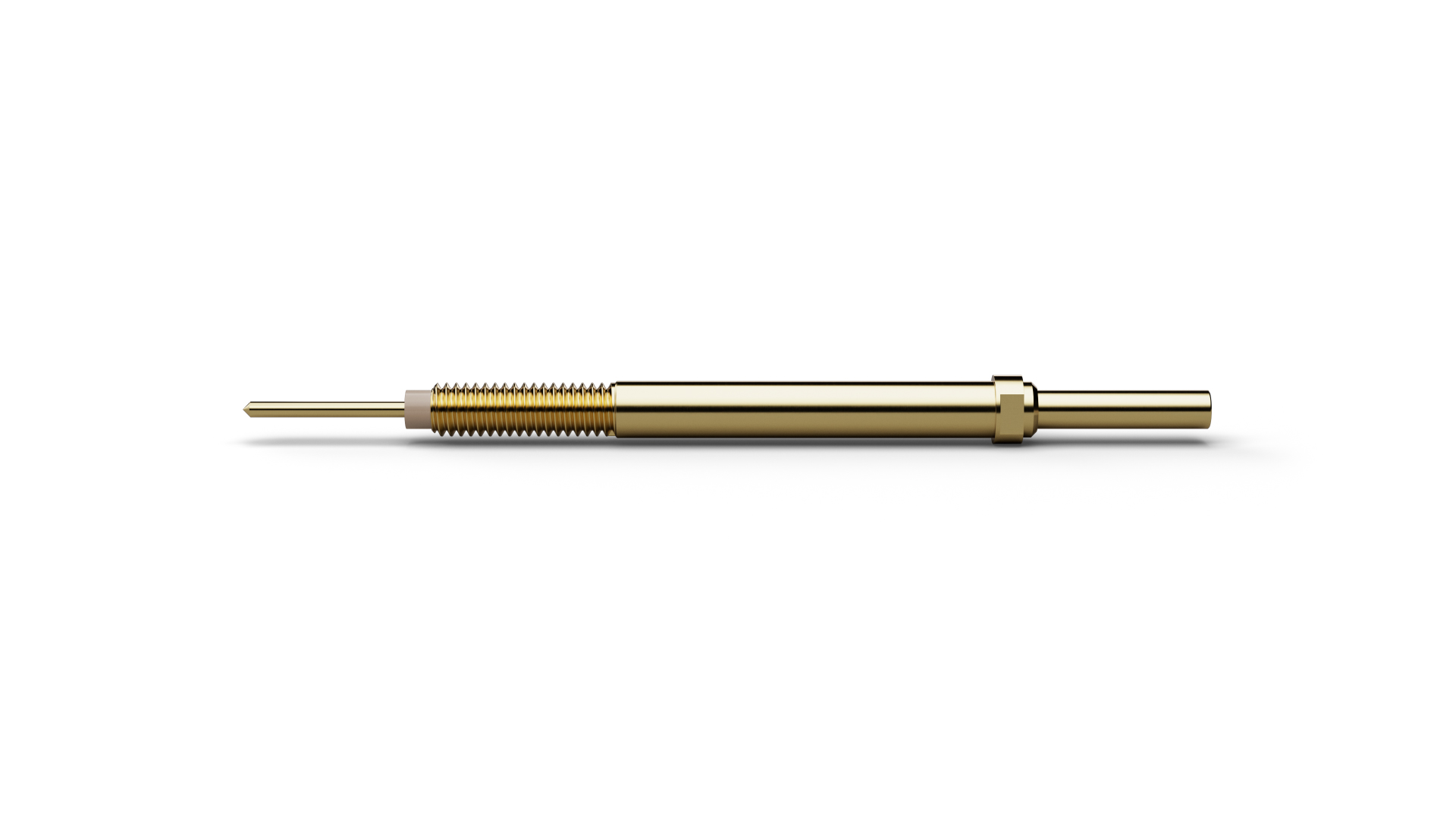

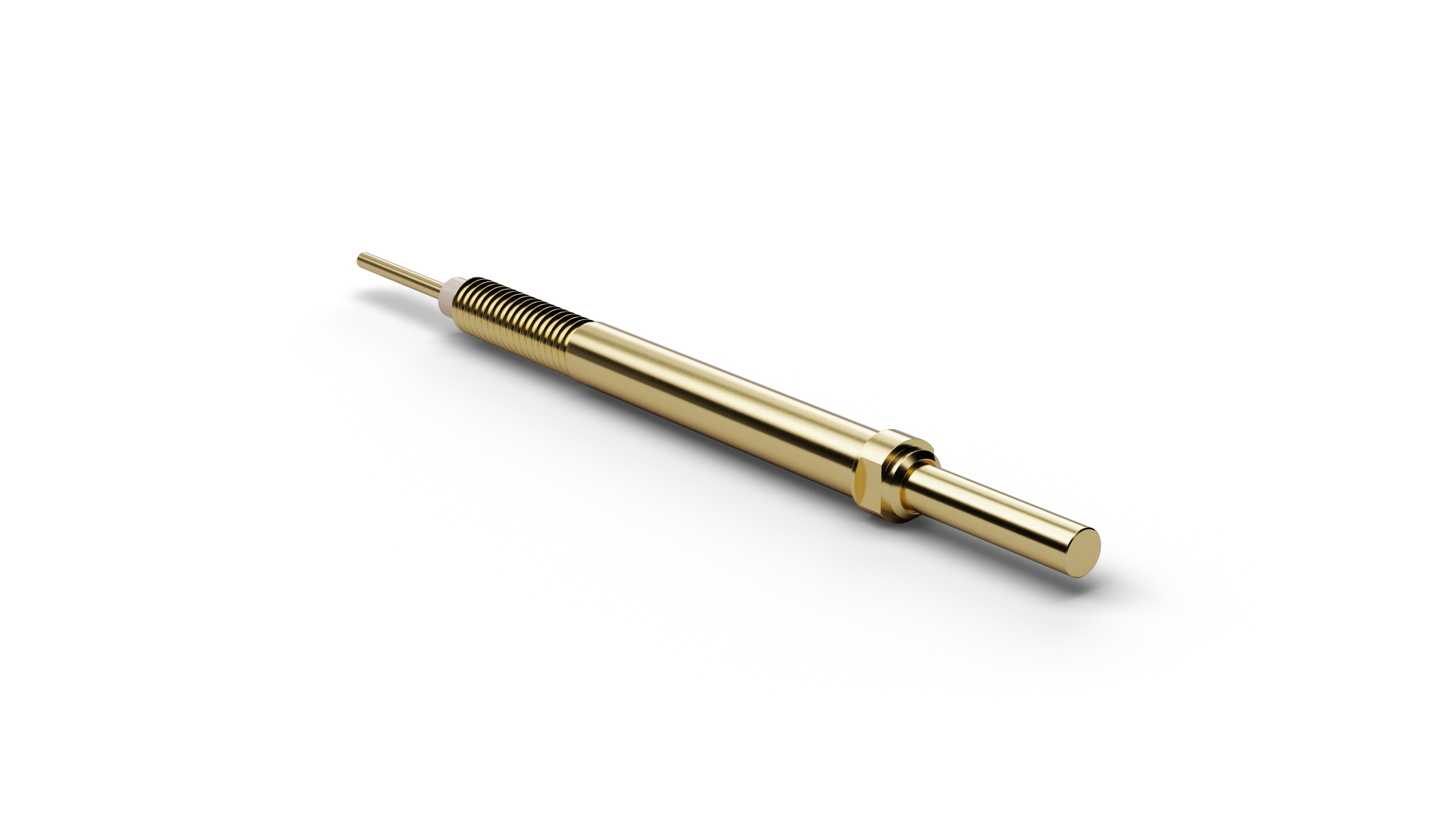

The Normally Closed Switch Probe F88316B180G230SM (item number 1006367) combines spring-loaded contacting with a defined switching or sensing function. F88316B180G230SM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88316B180G230SM, the normally closed function opens an initially closed contact at the defined actuation travel, allowing the test system to detect a mechanical state electrically. F88316B180G230SM operates with 230 cN spring force and 4 mm nominal travel. F88316B180G230SM is rated for 10 A continuous current with a typical contact resistance of 50 mΩ. F88316B180G230SM combines a pitch of 3.5 mm / 138 mil with tip style 16 (Flat) and a tip diameter of 1.8 mm.
