Datos técnicos
| General | |
|---|---|
| Tipo/Familia | H112 |
| Paso (mm/mil) | 1,27 / 50 |

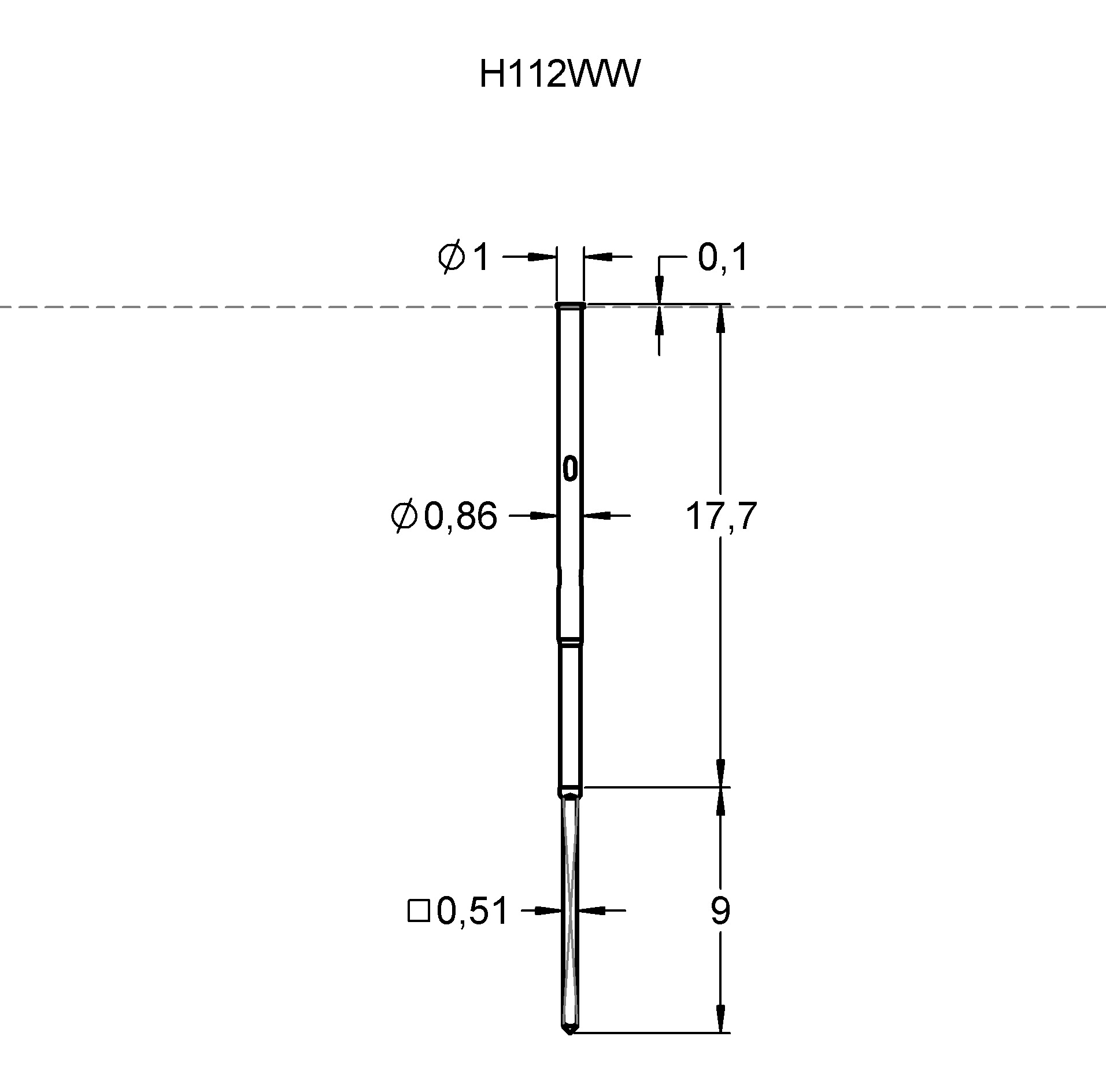

| Dimensiones | |
|---|---|
| Longitud total (mm) | 26.7 |
| Diámetro del anillo de presión (mm) | 1 |
| Diámetro exterior (mm) | 0.85 |
| Altura del collar (mm) | 0.1 |
| Materiales y superficies | |
|---|---|
| Material, Recubrimiento | Bronze, Gold |
| Especificaciones mecánicas | |
|---|---|
| Conexión | Wire Wrap |
Gráficos
Beschreibung des Produkts

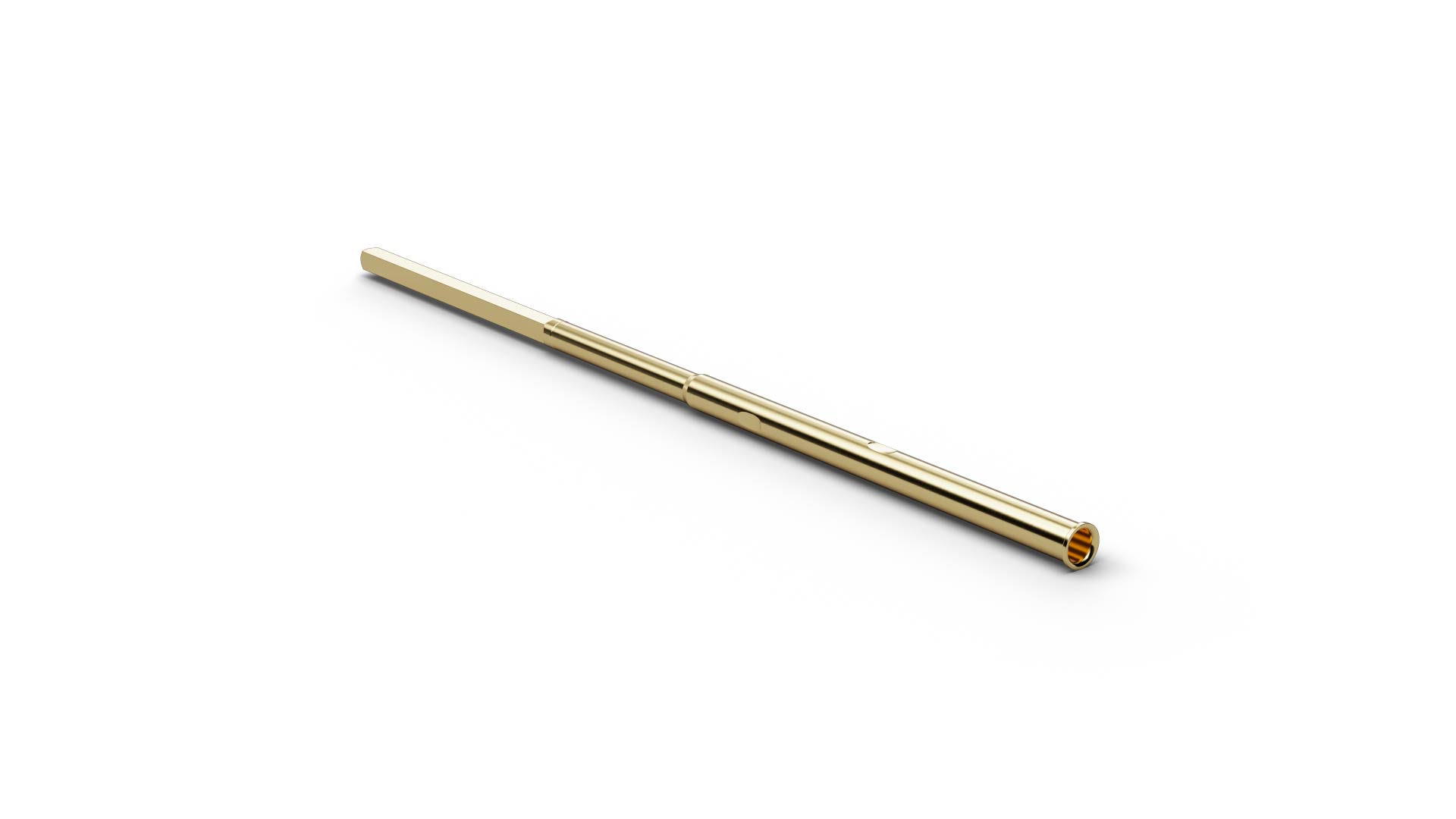

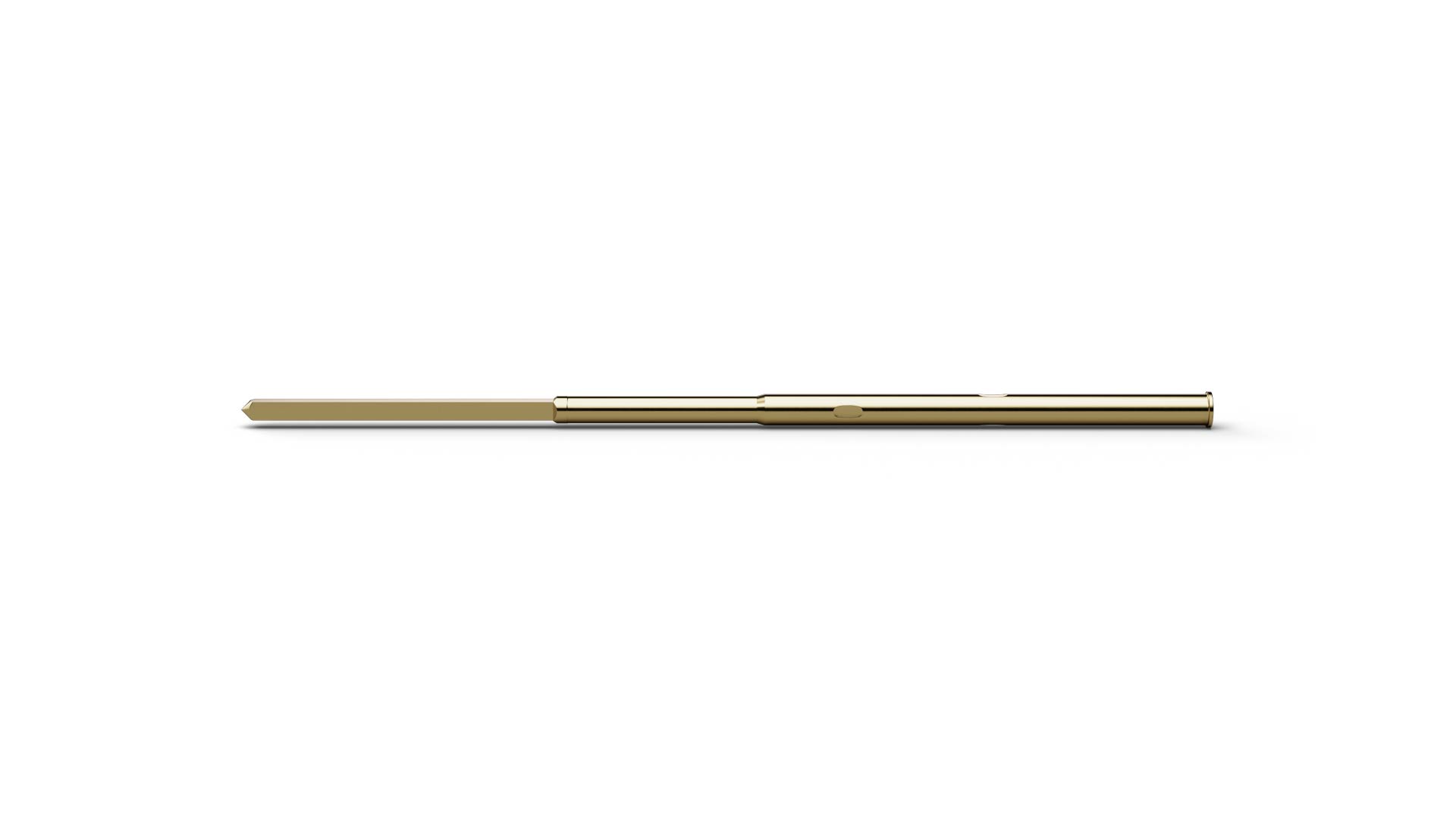

As a receptacle for a compatible Contact Probe, H112WW (item number 1006645) provides mechanical guidance and positioning within the test fixture or contacting module. The electrical connection of H112WW uses a wire wrap. Key installation dimensions are outside diameter 0.85 mm, length 26.7 mm. The Receptacle H112WW is designed for a pitch of 1.27 mm / 50 mil. The Receptacle H112WW is made of bronze and is gold-plated.
