Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F875-NO |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+100°C |
| Definición adicional | L |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 57.1 |
| Altura sobresaliente (mm) | 10.2 |
| Diámetro del estilo de punta (mm) | 1 |
| Diámetro del casquillo (mm) | 1.65 |
| Diámetro del collar (mm) | 2.3 |
| Diámetro del anillo de presión (mm) | 2.3 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 16 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Rosca | M1,6 |
| Tamaño de herramienta (mm) | 1,7 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 65 |
| Recorrido del interruptor (mm) | 1.5 |
| Corriente continua (A) 2 | 1 |
Gráficos
Beschreibung des Produkts

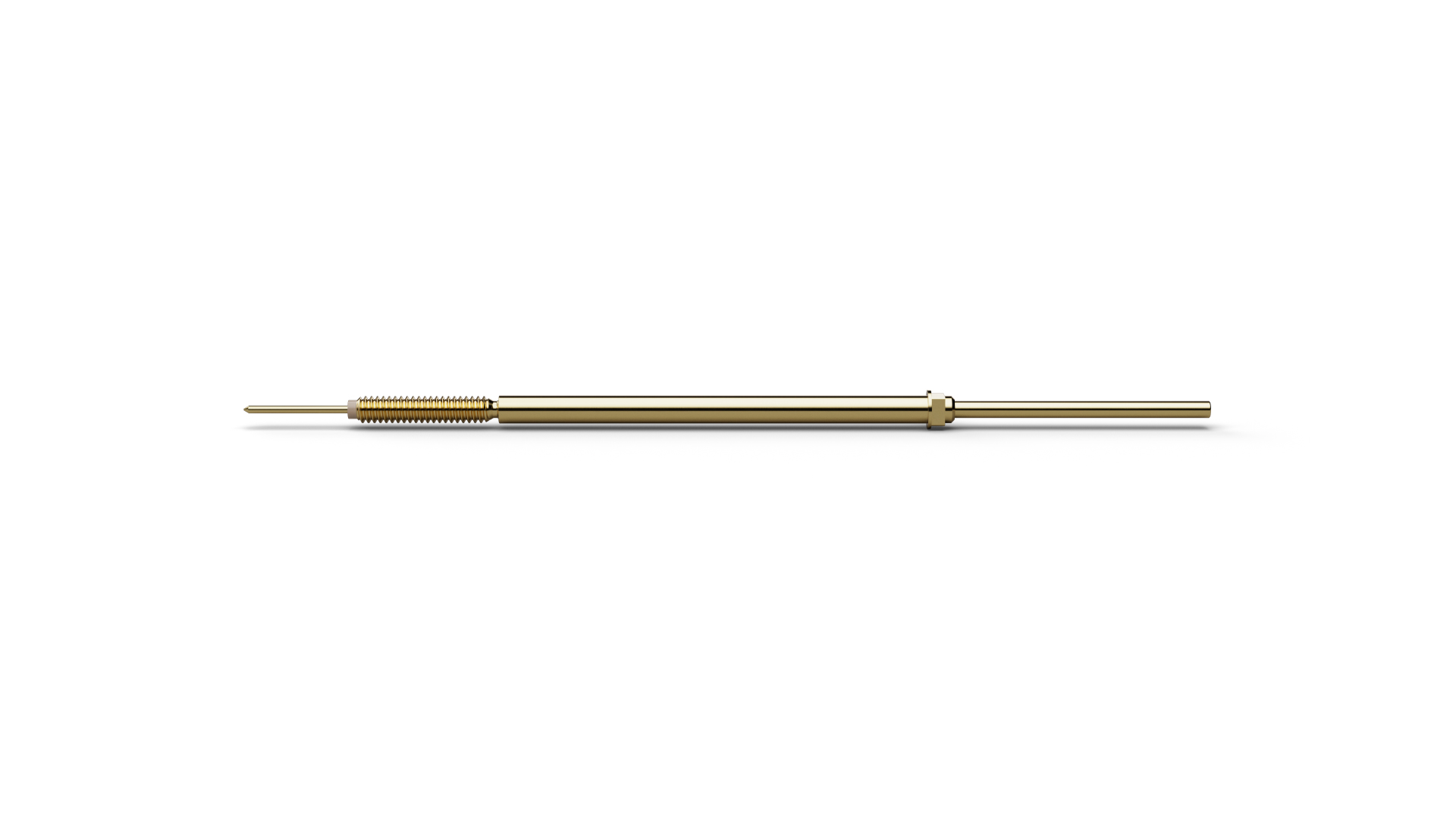

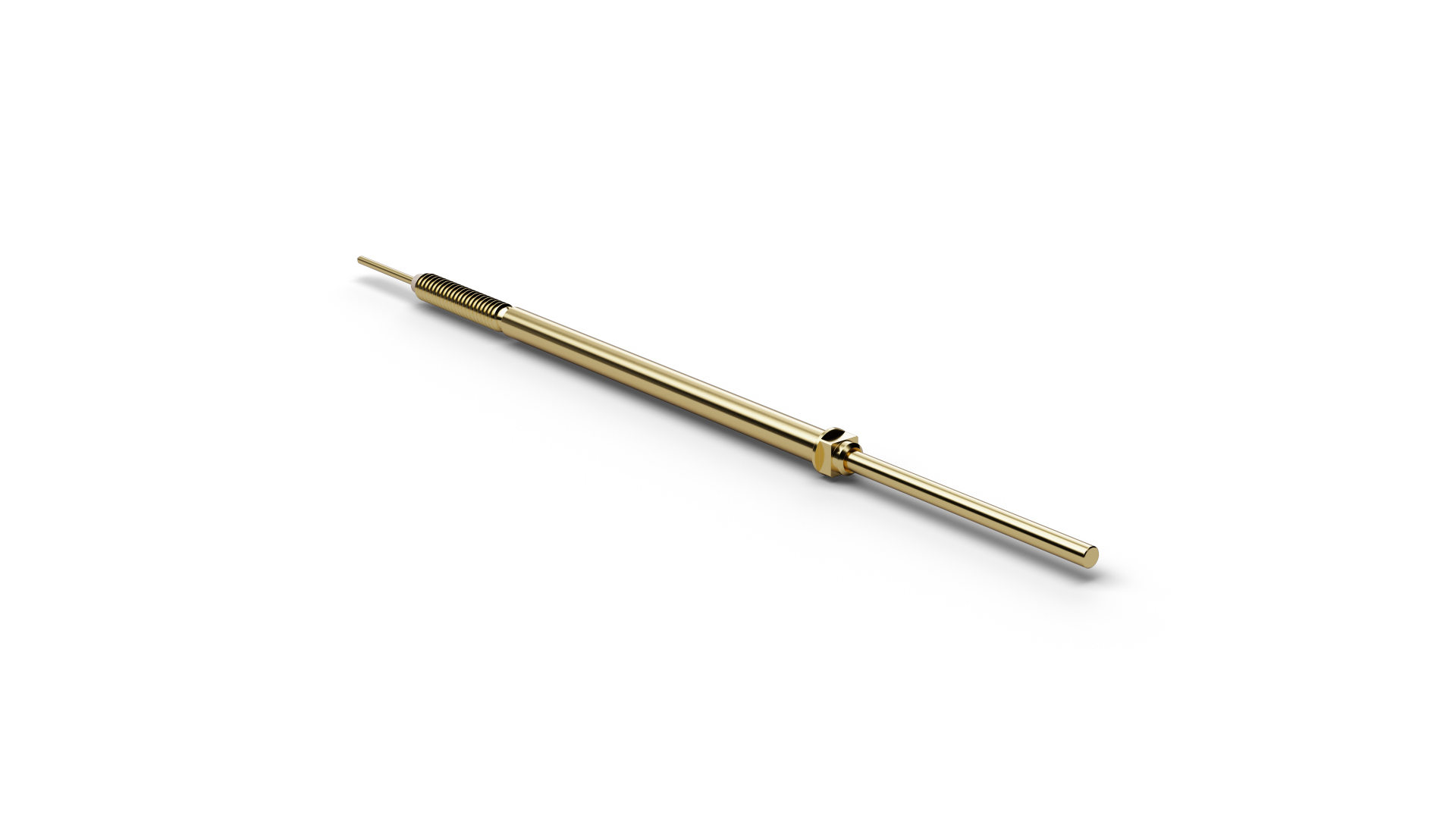

The Normally Open Switch Probe F87516B100G200L (item number 1007353) combines spring-loaded contacting with a defined switching or sensing function. F87516B100G200L combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F87516B100G200L, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F87516B100G200L, spring force is 200 cN at a nominal travel of 4 mm. F87516B100G200L is rated for 5 A continuous current with a typical contact resistance of 65 mΩ. F87516B100G200L combines a pitch of 2.54 mm / 100 mil with tip style 16 (Flat) and a tip diameter of 1 mm.
