Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F588 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 39 |
| Altura sobresaliente (mm) | 14.1 |
| Diámetro del estilo de punta (mm) | 0.76 |
| Diámetro del casquillo (mm) | 1.37 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 18 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 80 |
| Fuerza del resorte (cN) | 300 |
| Recorrido nominal (mm) | 9.3 |
| Recorrido máximo (mm) | 11.7 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos
Beschreibung des Produkts

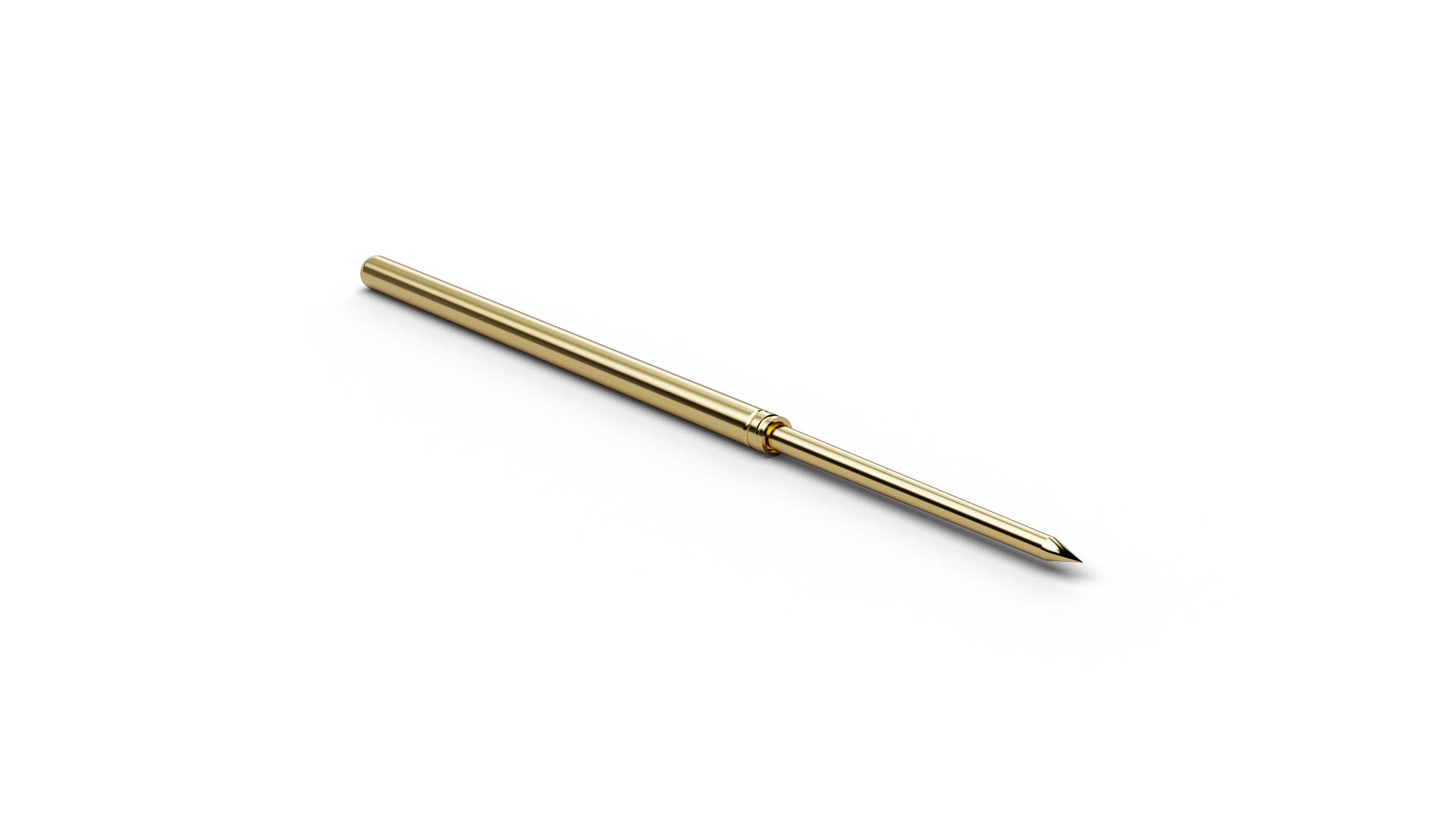

As a Basic Contact Probe, F58818B076G300 (item number 1007401) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F58818B076G300 combines ICT/FCT use with a geometry intended for solder pads and vias. F58818B076G300 combines a pitch of 2.54 mm / 100 mil with tip style 18 (Conical 30°) and a tip diameter of 0.76 mm. F58818B076G300 operates with 300 cN spring force and 9.3 mm nominal travel. F58818B076G300 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58818B076G300 is made of beryllium copper and is gold-plated.
