Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | VF3 |
| Paso (mm/mil) | 3,00 / 118 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 69.7 |
| Altura sobresaliente (mm) | 34.8 |
| Diámetro del estilo de punta (mm) | 2.3 |
| Diámetro del casquillo (mm) | 2.19 |
| Diámetro del collar (mm) | 2.6 |
| Diámetro del anillo de presión (mm) | 2.6 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 17 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 100 |
| Fuerza del resorte (cN) | 500 |
| Recorrido nominal (mm) | 5 |
| Recorrido máximo (mm) | 5.5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M2X0,2 |
| Tamaño de herramienta (mm) | 2,2 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 8 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos
Beschreibung des Produkts

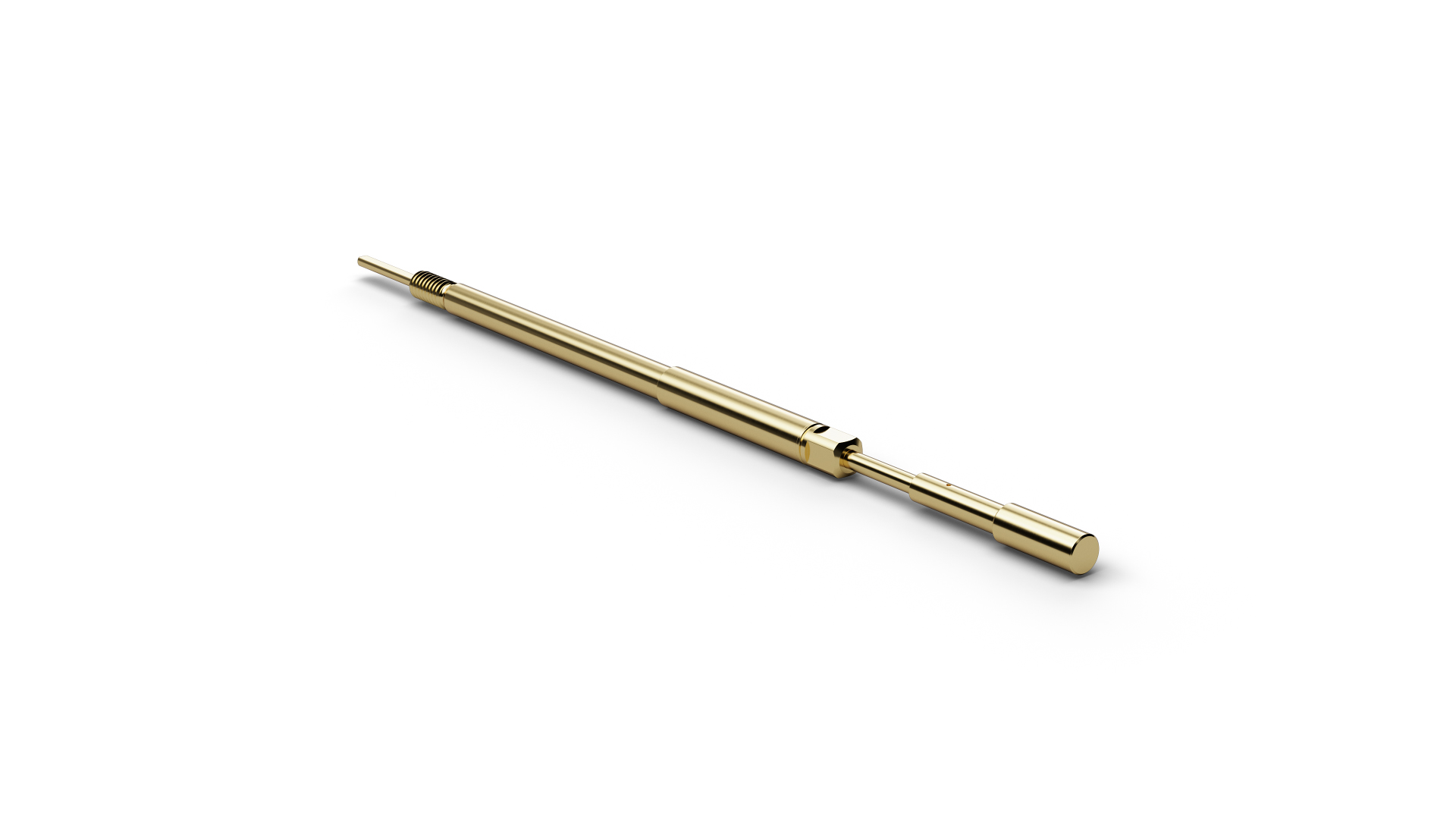

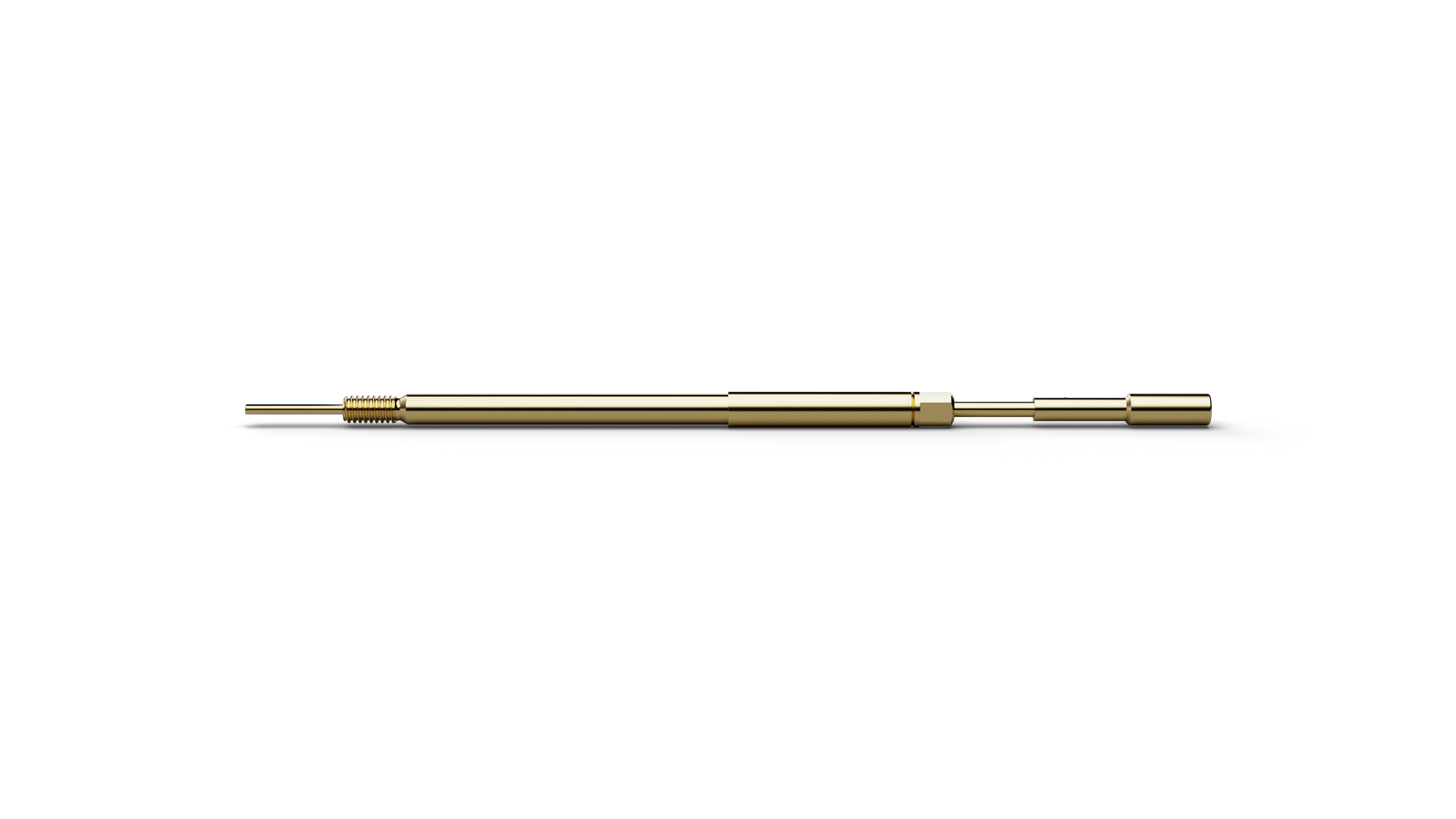

The Push Back Probe VF317B230G05 (item number 1008136) is designed to verify that terminals are correctly locked in connector housings. VF317B230G05 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. For VF317B230G05, spring force is 500 cN at a nominal travel of 5 mm. Pointing accuracy for VF317B230G05 is specified as ±0.1 mm. The electrical rating of VF317B230G05 combines 8 A continuous current with 30 mΩ typical contact resistance. For installation, VF317B230G05 uses an M2 x 0.2 thread.
