Datos técnicos
| General | |
|---|---|
| Tipo/Familia | F881-NO |
| Paso (mm/mil) | 3,50 / 138 |
| Temperatura | -45°C...+100°C |

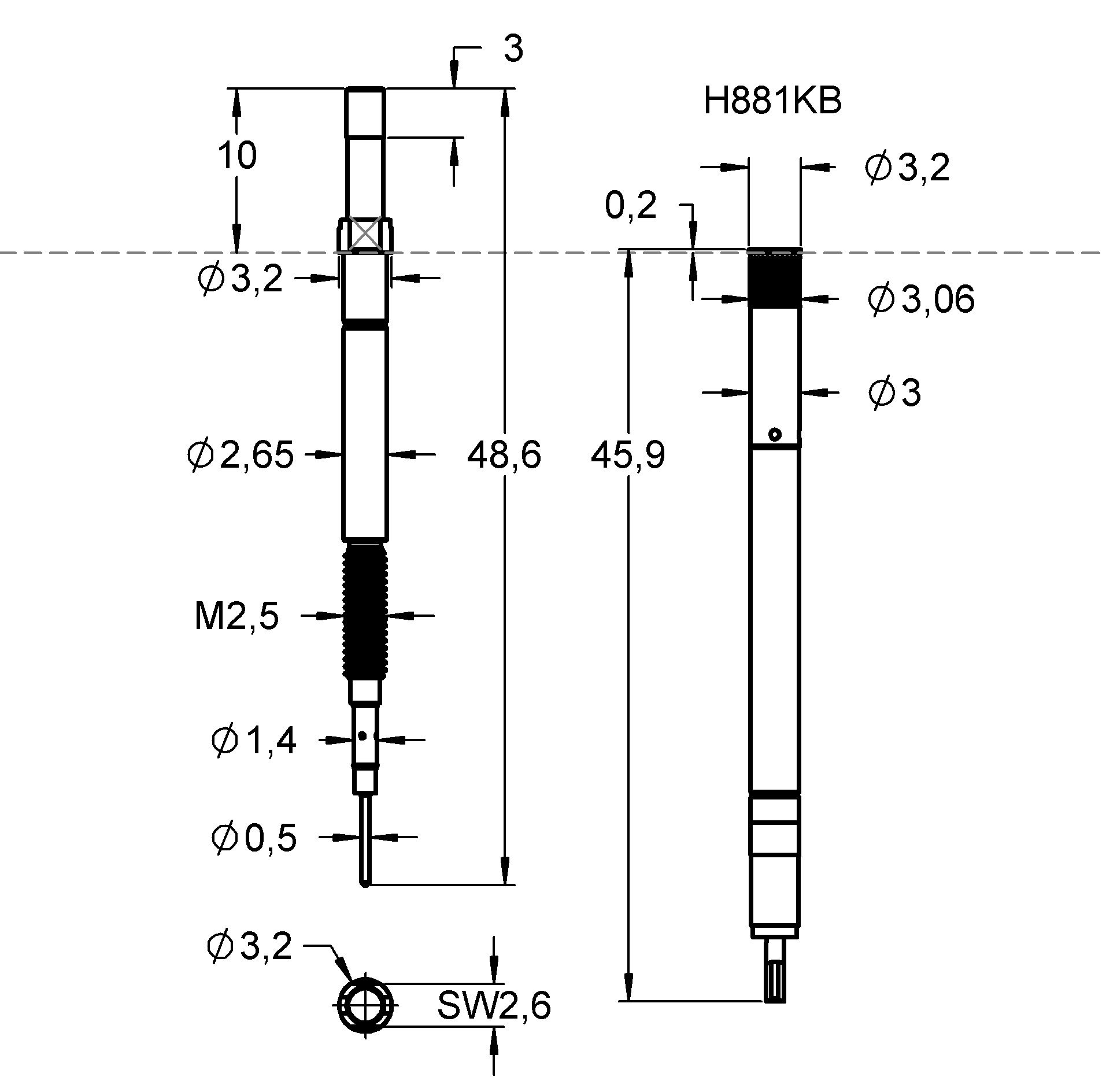

| Dimensiones | |
|---|---|
| Longitud total (mm) | 48.65 |
| Altura sobresaliente (mm) | 10 |
| Diámetro del estilo de punta (mm) | 2.3 |
| Diámetro del casquillo (mm) | 2.65 |
| Diámetro del collar (mm) | 3.2 |
| Diámetro del anillo de presión (mm) | 3.2 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 80 |
| Fuerza del resorte (cN) | 380 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Rosca | M2,5 |
| Tamaño de herramienta (mm) | 2,6 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 10 |
| Resistencia de contacto típica (mΩ) | 25 |
| Recorrido del interruptor (mm) | 1.7 |
| Corriente continua (A) 2 | 1 |
Gráficos
Beschreibung des Produkts

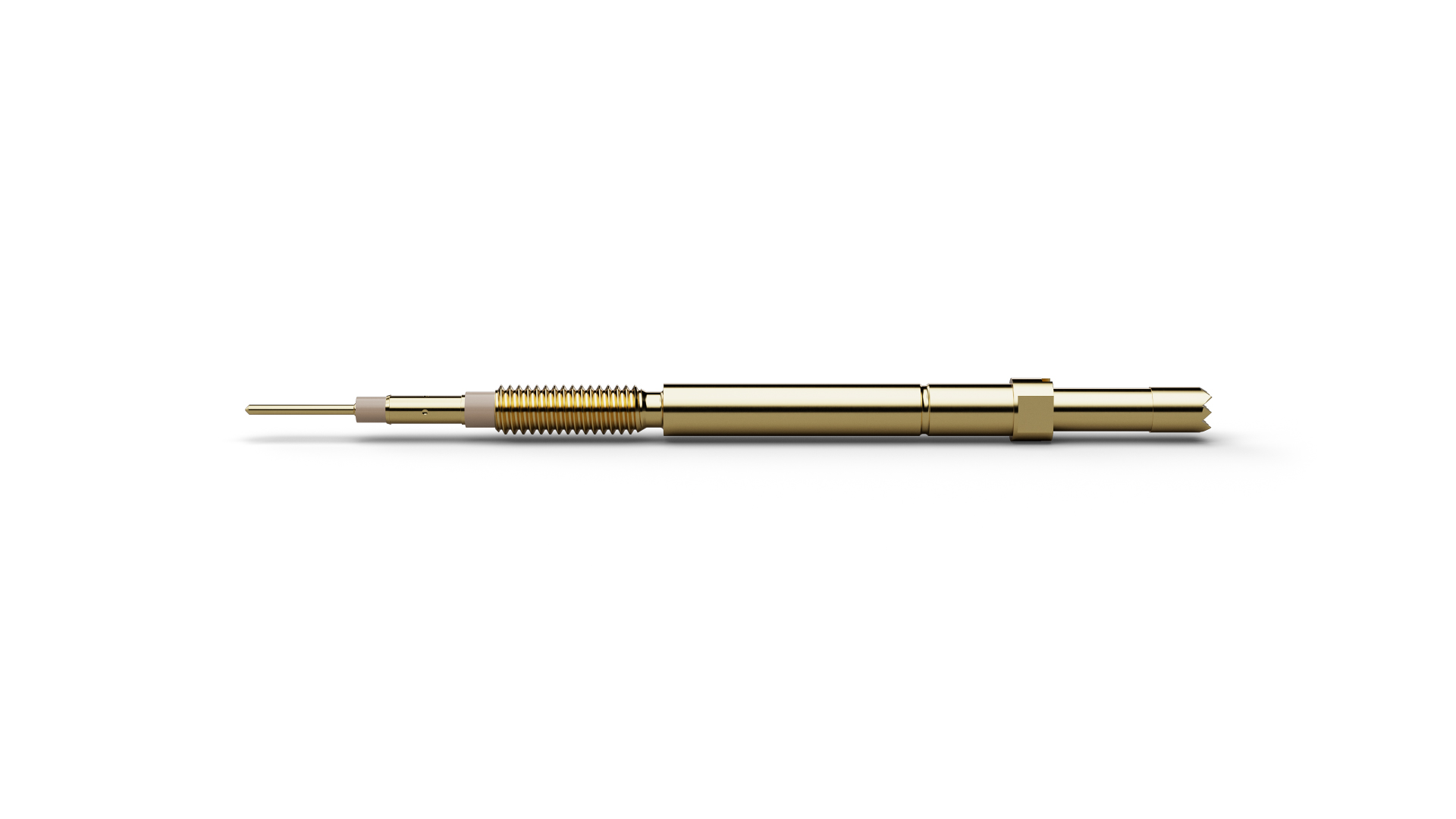

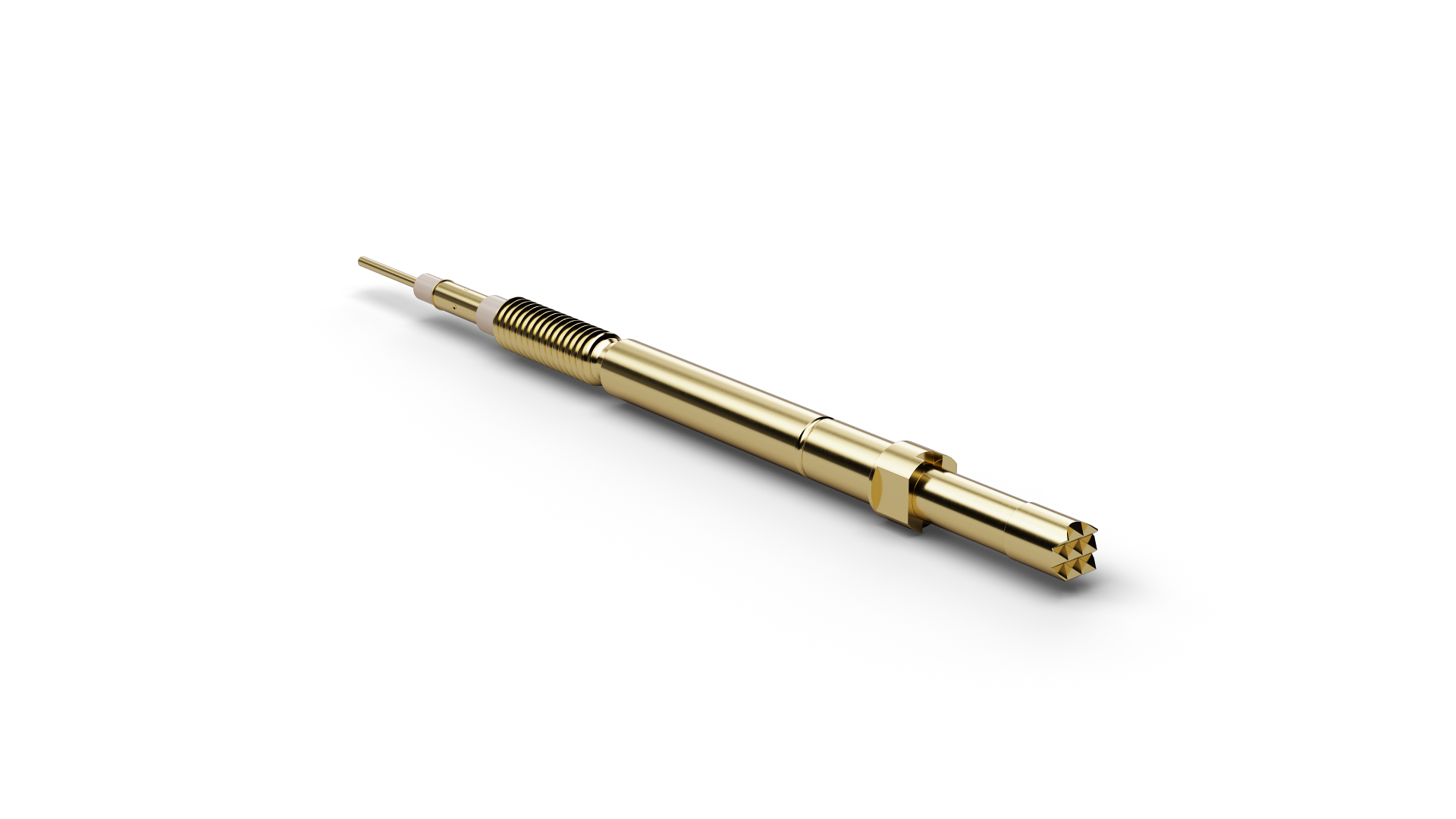

The Normally Open Switch Probe F88106B230G380 (item number 1008697) combines spring-loaded contacting with a defined switching or sensing function. F88106B230G380 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F88106B230G380, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F88106B230G380, spring force is 380 cN at a nominal travel of 4 mm. The electrical rating of F88106B230G380 combines 10 A continuous current with 25 mΩ typical contact resistance. F88106B230G380 combines a pitch of 3.5 mm / 138 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.3 mm.
