Datos técnicos
| General | |
|---|---|
| Estructura | Step Probe |
| Tipo/Familia | F732SP |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+100°C |
| Definición adicional | SP |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 34.9 |
| Altura sobresaliente (mm) | 9.5 |
| Diámetro del estilo de punta (mm) | 0.7 |
| Diámetro del casquillo (mm) | 1.65 |
| Diámetro del collar (mm) | 2.3 |
| Diámetro del anillo de presión (mm) | 2.3 |
| A – Diámetro del pin (mm) | 0.7 |
| B – Diámetro de la placa (mm) | 2.1 |
| C – Longitud del pin (mm) | 2 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 16 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 60 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Rosca | M1,6 |
| Tamaño de herramienta (mm) | 2,1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

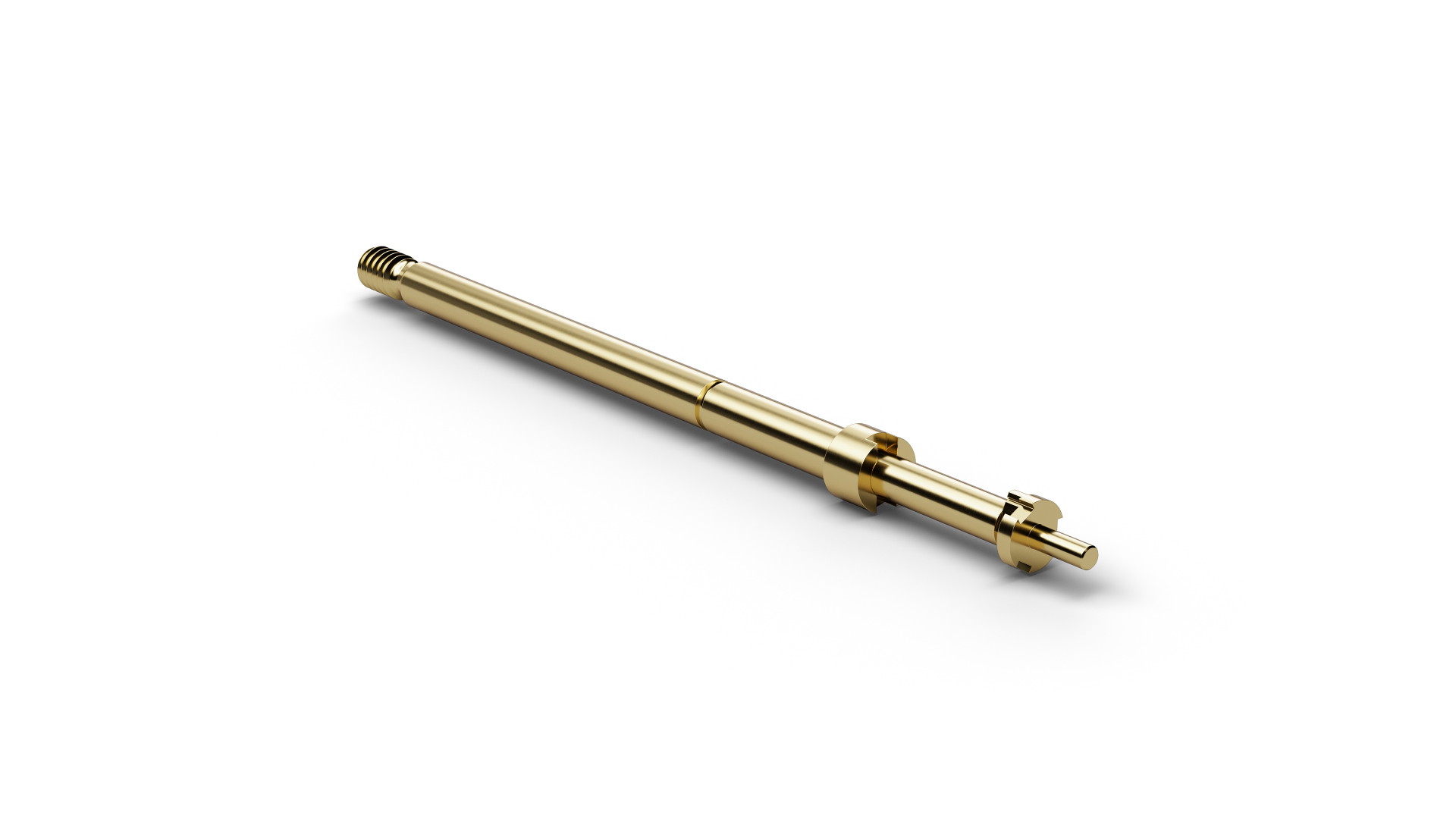

The Step Probe F73216B1043G150SP (item number 1008937) is a Spring Contact Probe with a disc-shaped contact area for position and presence testing. On F73216B1043G150SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. F73216B1043G150SP is suited to contacts located in housings, recesses or difficult-to-access areas because its disc head makes contact only at a defined penetration depth. Key mechanical specifications include pitch 2.54 mm / 100 mil, step diameter 2.1 mm, pin diameter 0.7 mm, pin length 2 mm, spring force 150 cN, pointing accuracy ±0.08 mm. The electrical rating of F73216B1043G150SP combines 5 A continuous current with 20 mΩ typical contact resistance. The stepped contact geometry of F73216B1043G150SP makes electrical contact only in the intended installation position and can therefore help detect missing or incorrectly positioned terminals.
