Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F755 |
| Paso (mm/mil) | 4,50 / 177 |
| Temperatura | -45°C...+200°C |
| Definición adicional | EXX |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 38 |
| Altura sobresaliente (mm) | 13 |
| Diámetro del estilo de punta (mm) | 3 |
| Diámetro del casquillo (mm) | 3 |
| Diámetro del collar (mm) | 3.5 |
| Diámetro del anillo de presión (mm) | 3.5 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 14 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 90 |
| Fuerza del resorte (cN) | 300 |
| Recorrido nominal (mm) | 5.6 |
| Recorrido máximo (mm) | 7 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M2,5 |
| Tamaño de herramienta (mm) | 3,0 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 10 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos
Beschreibung des Produkts

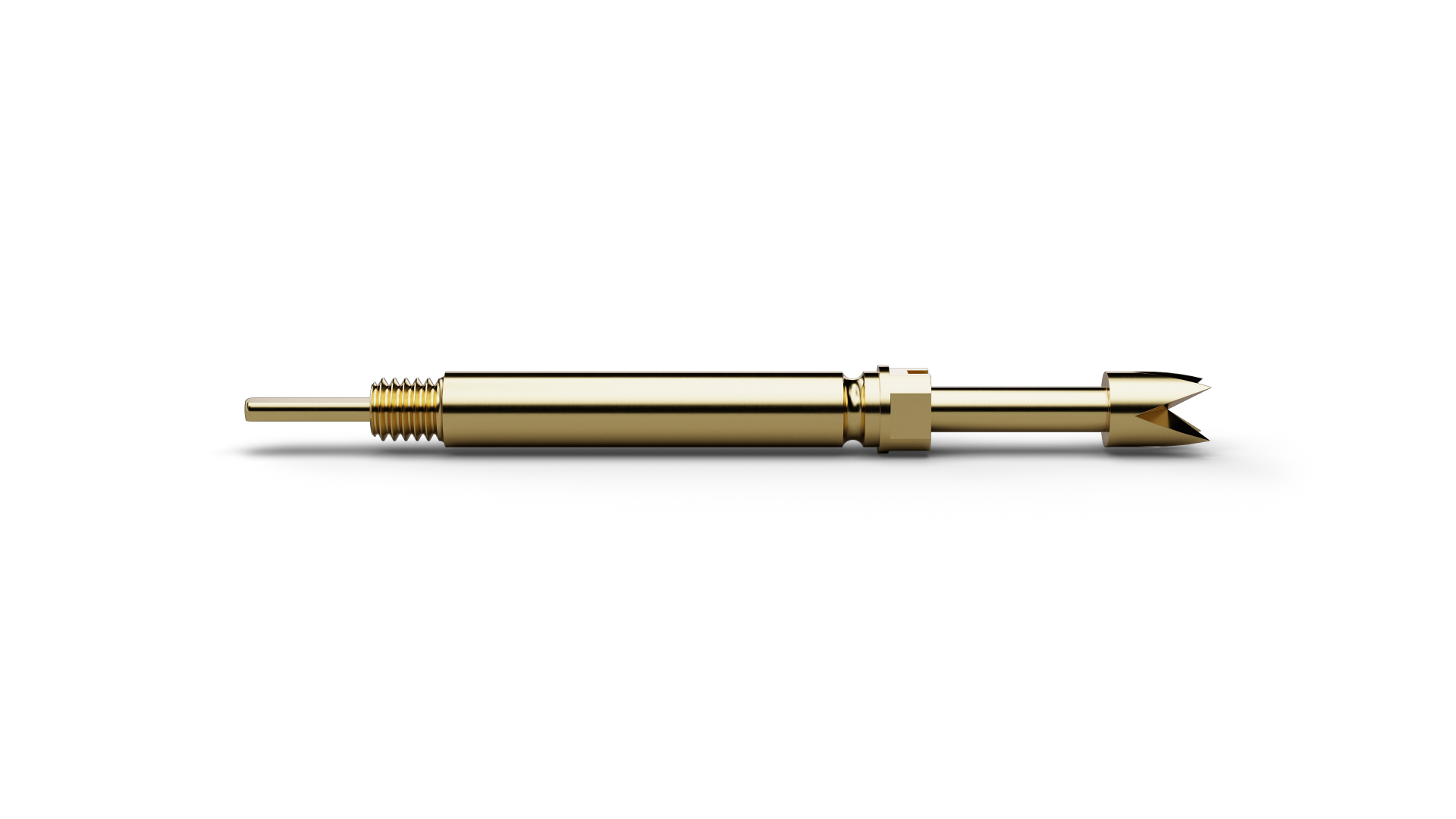

The Twist Proof Probe F75514B300G300E13 (item number 1009449) keeps its contact tip in a defined rotational orientation. The twist-proof design of F75514B300G300E13 keeps the contact geometry in a defined orientation and is therefore suited to direction-sensitive connector contacting. The twist-proof design of F75514B300G300E13 is useful in connector testing when elongated contours, contact tongues or direction-dependent tip geometries must remain precisely aligned. Tip style 14 (4-point crown stepped (self-cleaning)) has a diameter of 3 mm. For F75514B300G300E13, spring force is 300 cN at a nominal travel of 5.6 mm. Pointing accuracy for F75514B300G300E13 is specified as ±0.1 mm.
