Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCF775 |
| Paso (mm/mil) | 5,00 / 197 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 38.5 |
| Altura sobresaliente (mm) | 10.5 |
| Diámetro del estilo de punta (mm) | 3 |
| Diámetro del casquillo (mm) | 3.5 |
| Diámetro del collar (mm) | 4 |
| Diámetro del anillo de presión (mm) | 4 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 07 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 150 |
| Fuerza del resorte (cN) | 500 |
| Recorrido nominal (mm) | 4.4 |
| Recorrido máximo (mm) | 5.5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 50 |
| Resistencia de contacto típica (mΩ) | 5 |
Gráficos
Beschreibung des Produkts

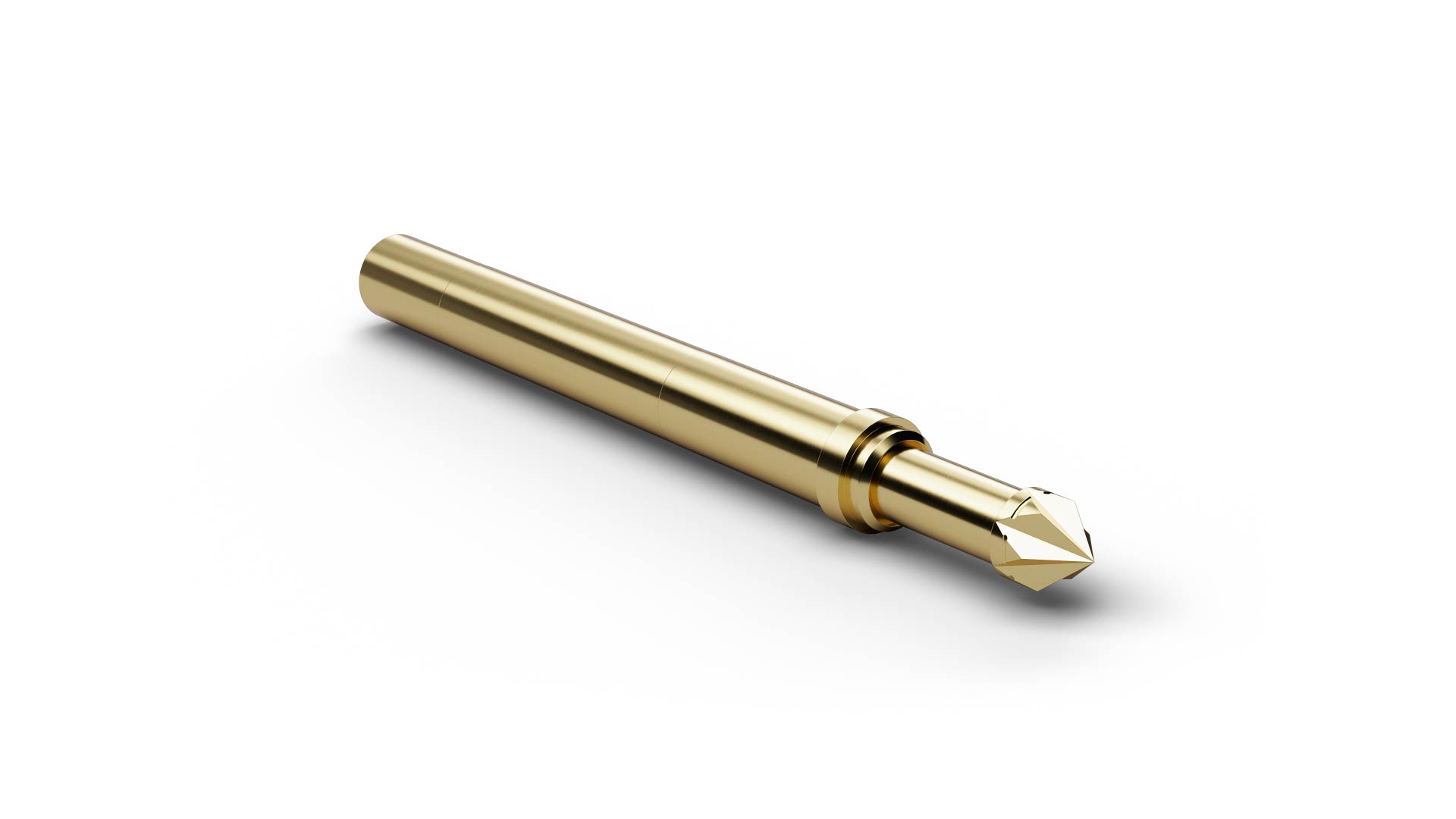

The High Current Probe HCF77507B300G500 (item number 1009671) is designed for safe transmission of high electrical currents in test and contacting applications. HCF77507B300G500 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF77507B300G500, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF77507B300G500 includes power-electronics testing. The electrical rating of HCF77507B300G500 combines 50 A continuous current with 5 mΩ typical contact resistance. HCF77507B300G500 operates with 500 cN spring force and 4.4 mm nominal travel.
