Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F050 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+80°C |
| Definición adicional | HP |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 43.2 |
| Altura sobresaliente (mm) | 6.9 |
| Diámetro del estilo de punta (mm) | 0.5 |
| Diámetro del casquillo (mm) | 0.78 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 33 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Progressive |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 120 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 40 |
Gráficos
Beschreibung des Produkts

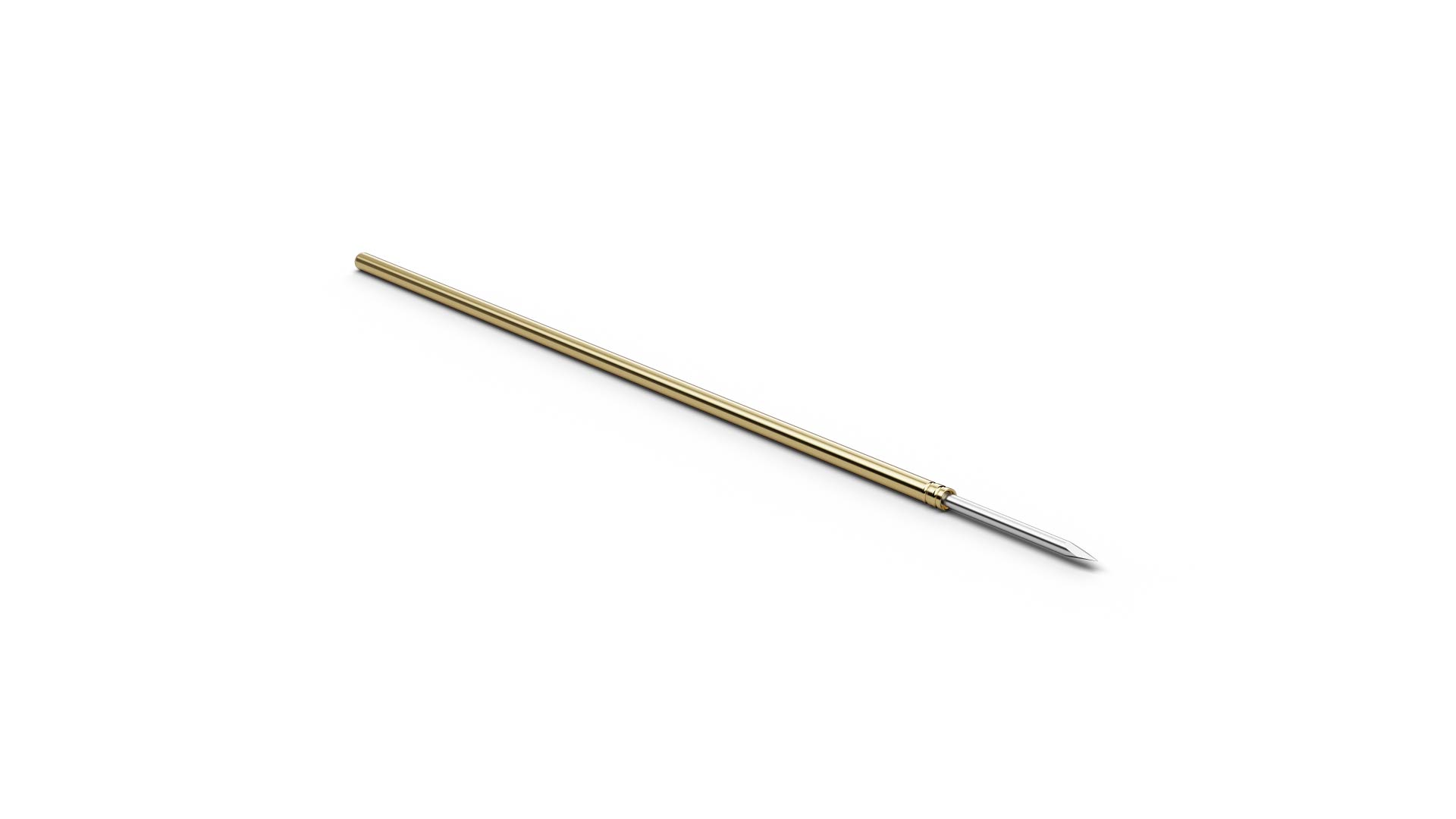

As a Basic Contact Probe, F05033S050P200HP (item number 1010224) establishes a spring-loaded electrical connection to the test point. With tip style 33 (Square lance 38°), F05033S050P200HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05033S050P200HP combines a pitch of 1.27 mm / 50 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.5 mm. For F05033S050P200HP, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F05033S050P200HP combines 3 A continuous current with 40 mΩ typical contact resistance. For demanding test points, F05033S050P200HP combines functional Progressive Coating with the higher preload of the HP spring, supporting reliable contact on OSP surfaces and areas affected by flux or contamination.
