Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | I- |
| Paso (mm/mil) | 4,20 / 165 |
| Temperatura | -45°C...+250°C |

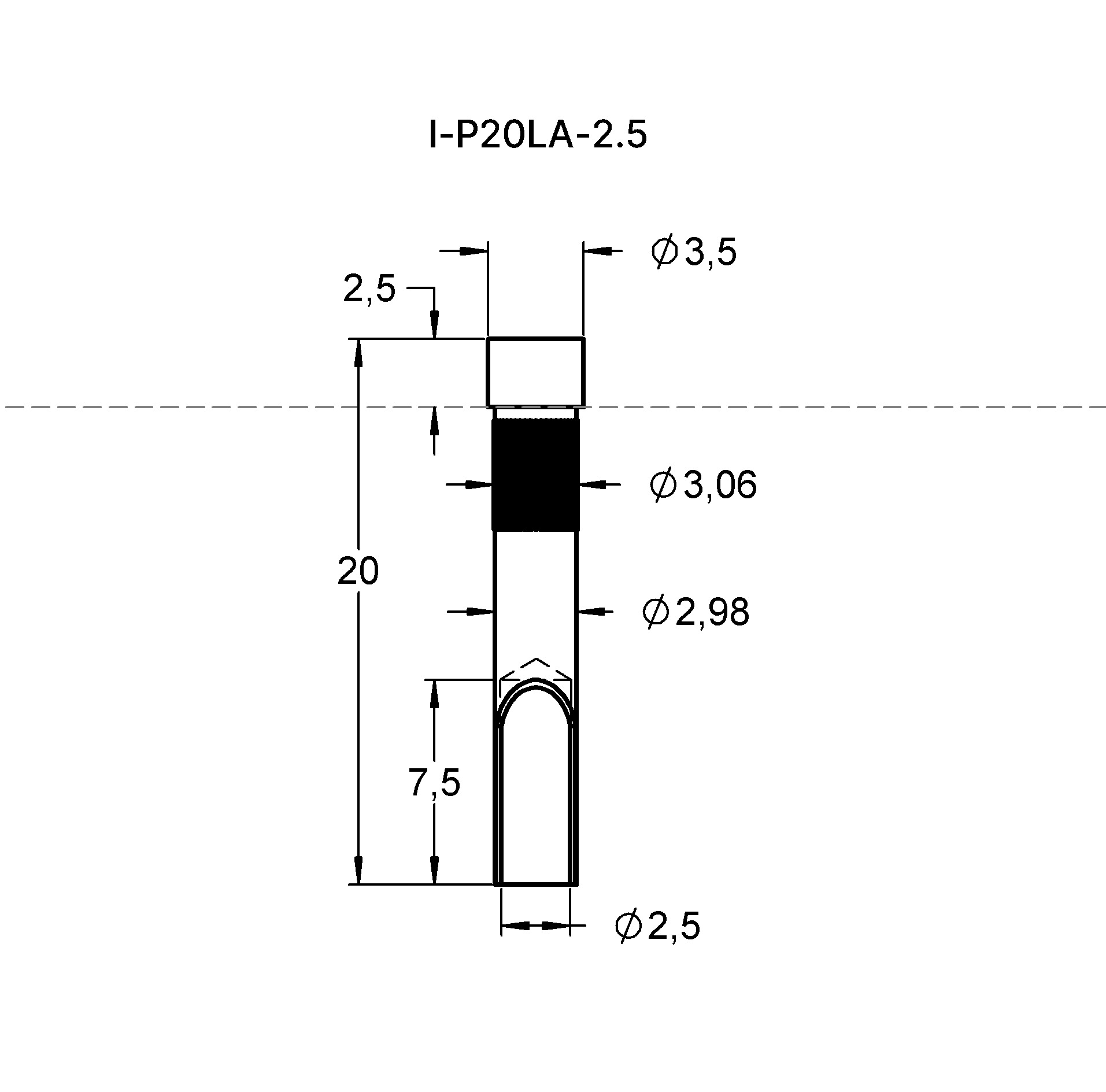

| Dimensiones | |
|---|---|
| Longitud total (mm) | 20 |
| Diámetro del estilo de punta (mm) | 3.5 |
| Diámetro del casquillo (mm) | 2.98 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 16 |
| Material del estilo de punta | Brass |
| Recubrimiento del estilo de punta | Gold |
| Material del émbolo | Brass |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 30 |
Gráficos
Beschreibung des Produkts

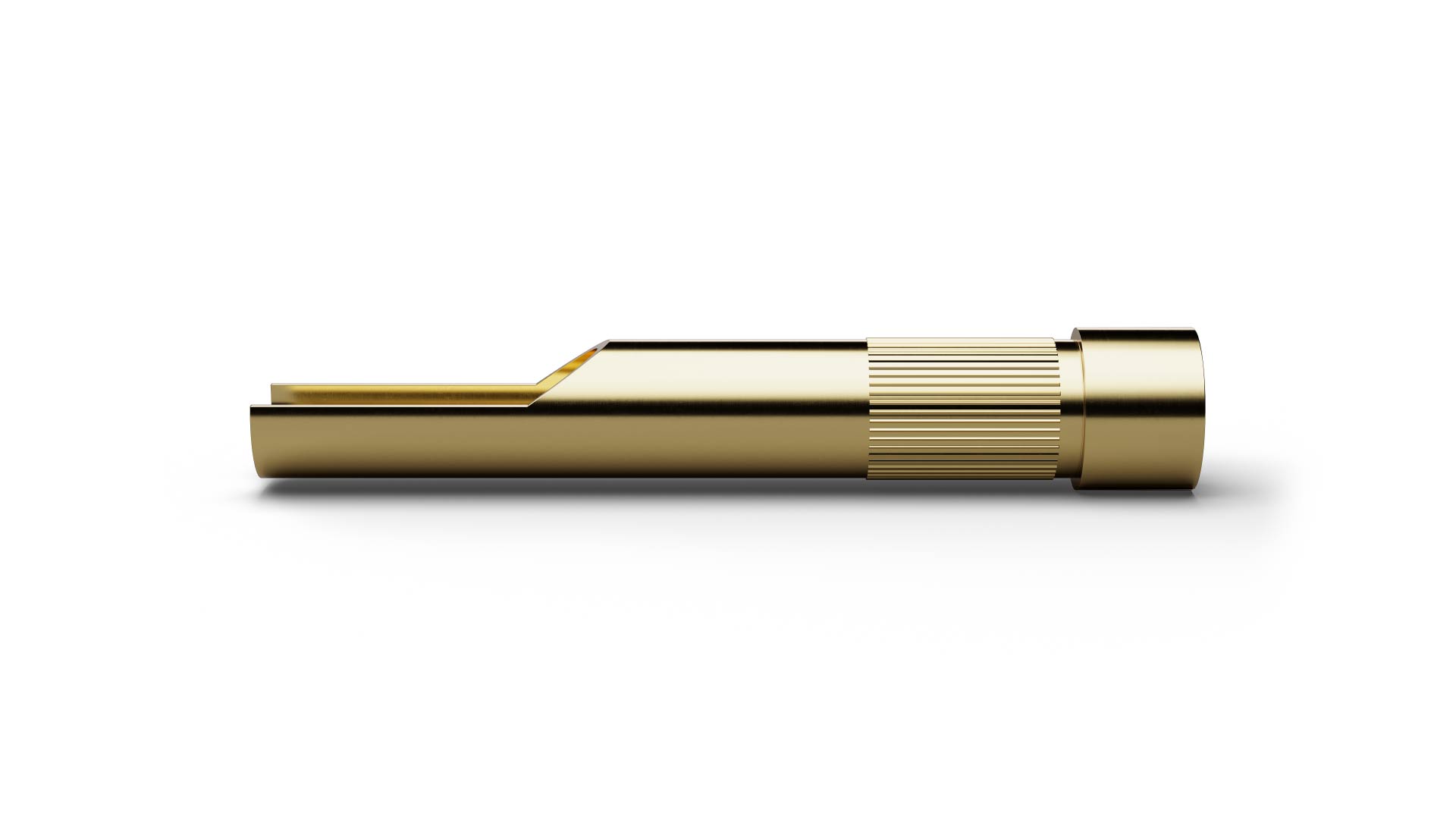

I-P20LA-2.5 (item number 1012256) is a Contact Probe for defined interfaces within electronic test setups. I-P20LA-2.5 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. The design combines a pitch of 4.2 mm / 165 mil with tip style 16 (Flat) and a tip diameter of 3.5 mm. The continuous-current rating of I-P20LA-2.5 is 30 A. The plunger in I-P20LA-2.5 is made of brass and is gold-plated.
