Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F086 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 36 |
| Altura sobresaliente (mm) | 4.7 |
| Diámetro del estilo de punta (mm) | 0.8 |
| Diámetro del casquillo (mm) | 0.75 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 02 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 75 |
| Fuerza del resorte (cN) | 130 |
| Recorrido nominal (mm) | 2 |
| Recorrido máximo (mm) | 3.7 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 25 |
Gráficos
Beschreibung des Produkts

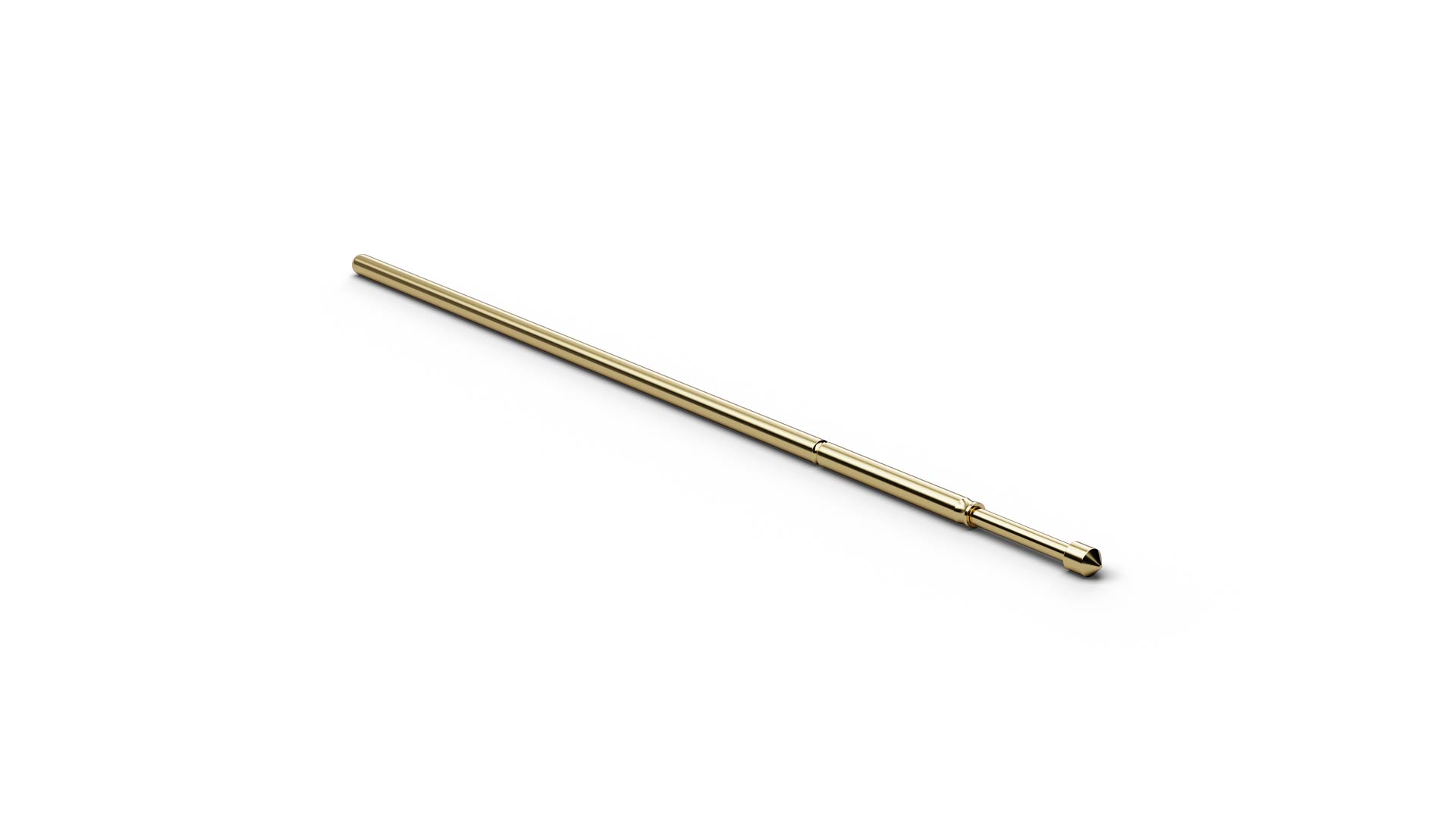

F08602B080G130 (item number 1012603) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 02 (Conical 90° stepped), F08602B080G130 combines ICT/FCT use with a geometry intended for solder pads and vias. F08602B080G130 combines a pitch of 1.27 mm / 50 mil with tip style 02 (Conical 90° stepped) and a tip diameter of 0.8 mm. F08602B080G130 operates with 130 cN spring force and 2 mm nominal travel. The electrical rating of F08602B080G130 combines 3 A continuous current with 25 mΩ typical contact resistance. The plunger in F08602B080G130 is made of beryllium copper and is gold-plated.
