Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | PS732 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 36.1 |
| Altura sobresaliente (mm) | 10.3 |
| Diámetro del estilo de punta (mm) | 1.8 |
| Diámetro del casquillo (mm) | 1.65 |
| Diámetro del collar (mm) | 2.3 |
| Diámetro del anillo de presión (mm) | 2.3 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 05 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 30 |
| Fuerza del resorte (cN) | 90 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Rosca | M1,6 |
| Tamaño de herramienta (mm) | 1,7 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

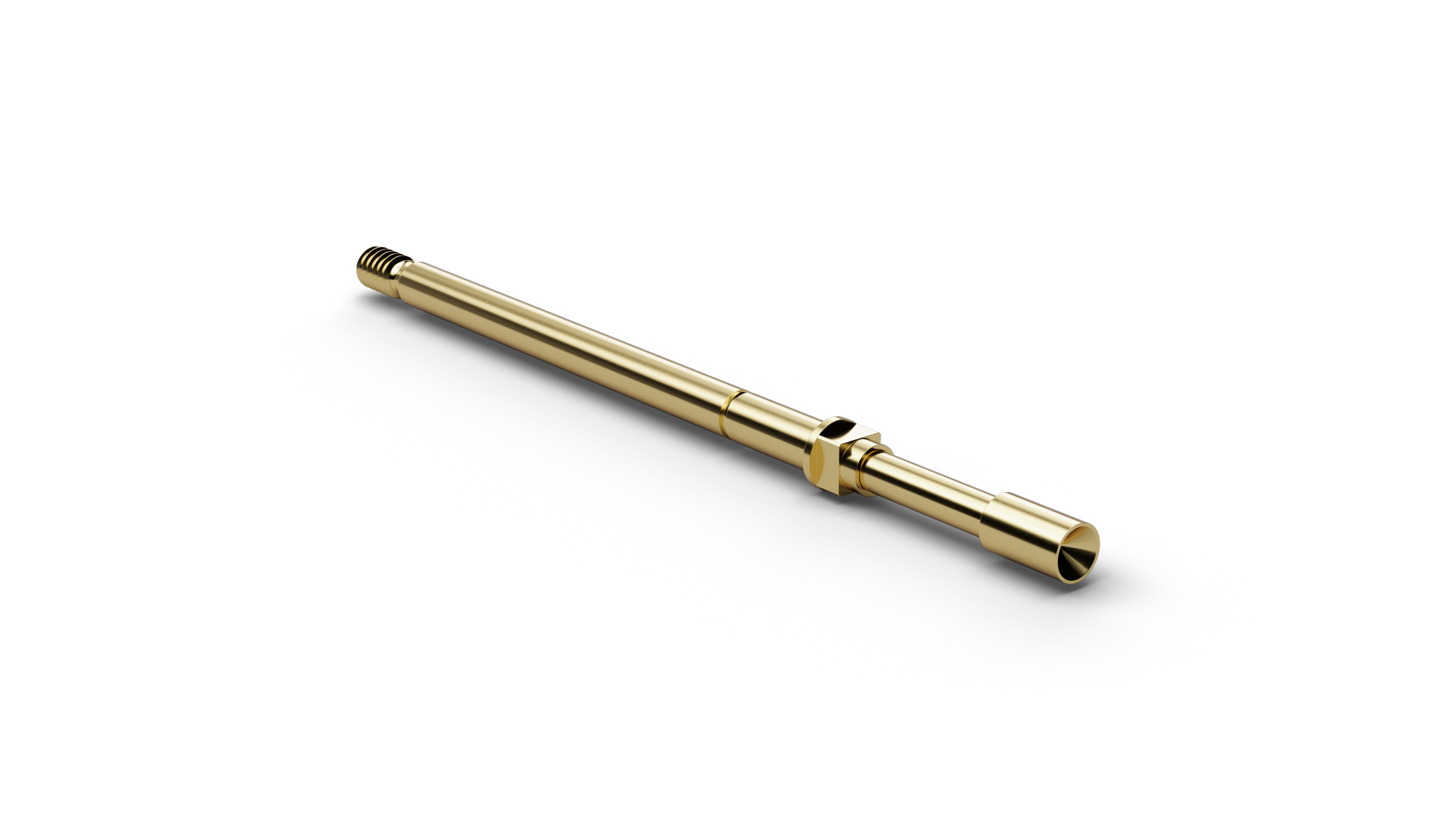

The Position Sensor Probe PS73205B180G090 (item number 1013602) combines spring-loaded contacting with a defined switching or sensing function. PS73205B180G090 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. PS73205B180G090 is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. For PS73205B180G090, spring force is 90 cN at a nominal travel of 4 mm. The electrical rating of PS73205B180G090 combines 5 A continuous current with 20 mΩ typical contact resistance. PS73205B180G090 combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.8 mm.
