Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | P-M / P090M-L053 |
| Paso (mm/mil) | 1,70 / 67 |
| Temperatura | -45°C...+200°C |
| Definición adicional | H |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 5.3 |
| Altura sobresaliente (mm) | 2.8 |
| Diámetro del estilo de punta (mm) | 0.6 |
| Diámetro del casquillo (mm) | 0.9 |
| Diámetro del collar (mm) | 1.15 |
| Diámetro del anillo de presión (mm) | 1.15 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 10 |
| Fuerza del resorte (cN) | 20 |
| Recorrido nominal (mm) | 1 |
| Recorrido máximo (mm) | 1.2 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 100 |
Gráficos
Beschreibung des Produkts

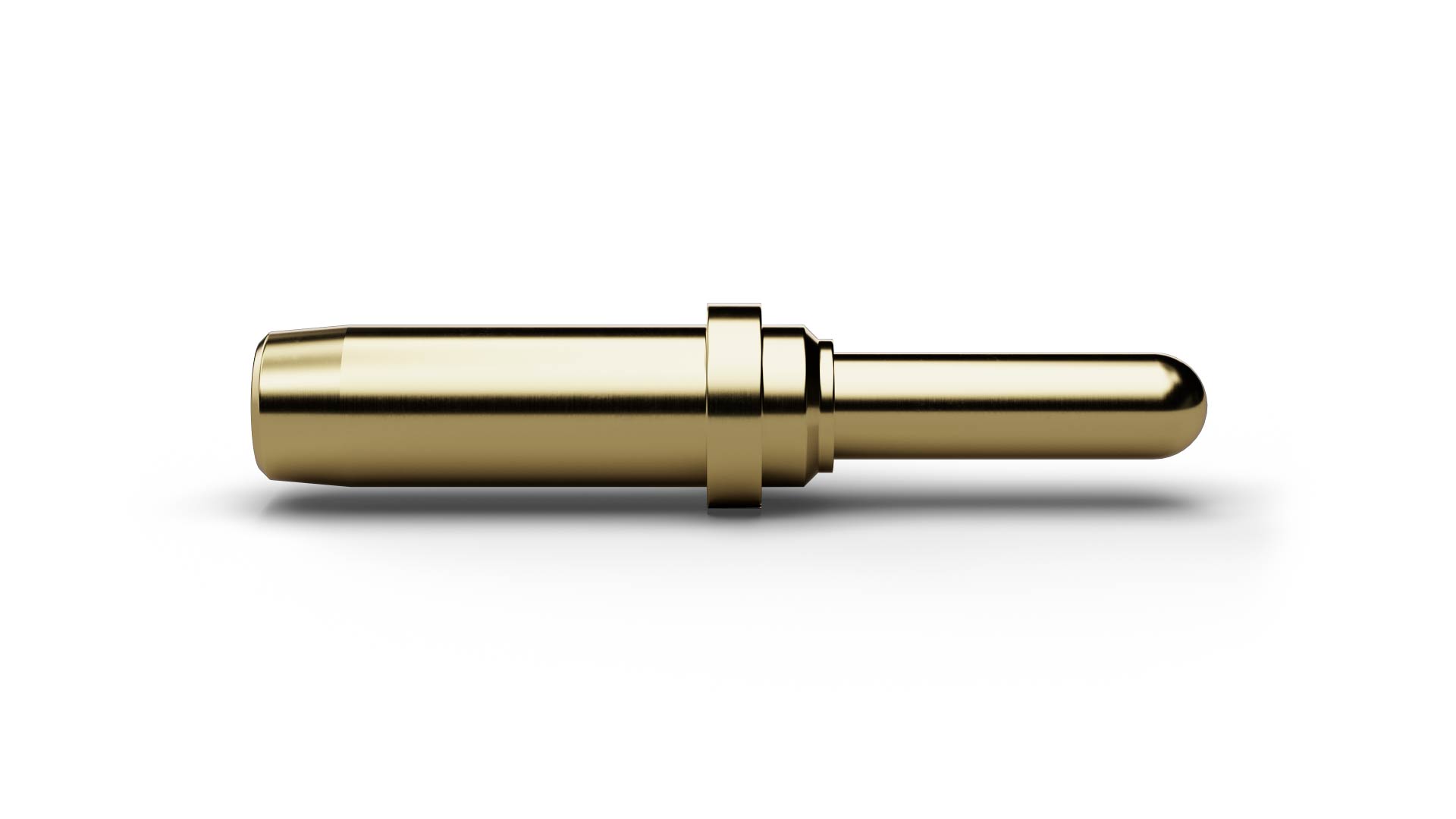

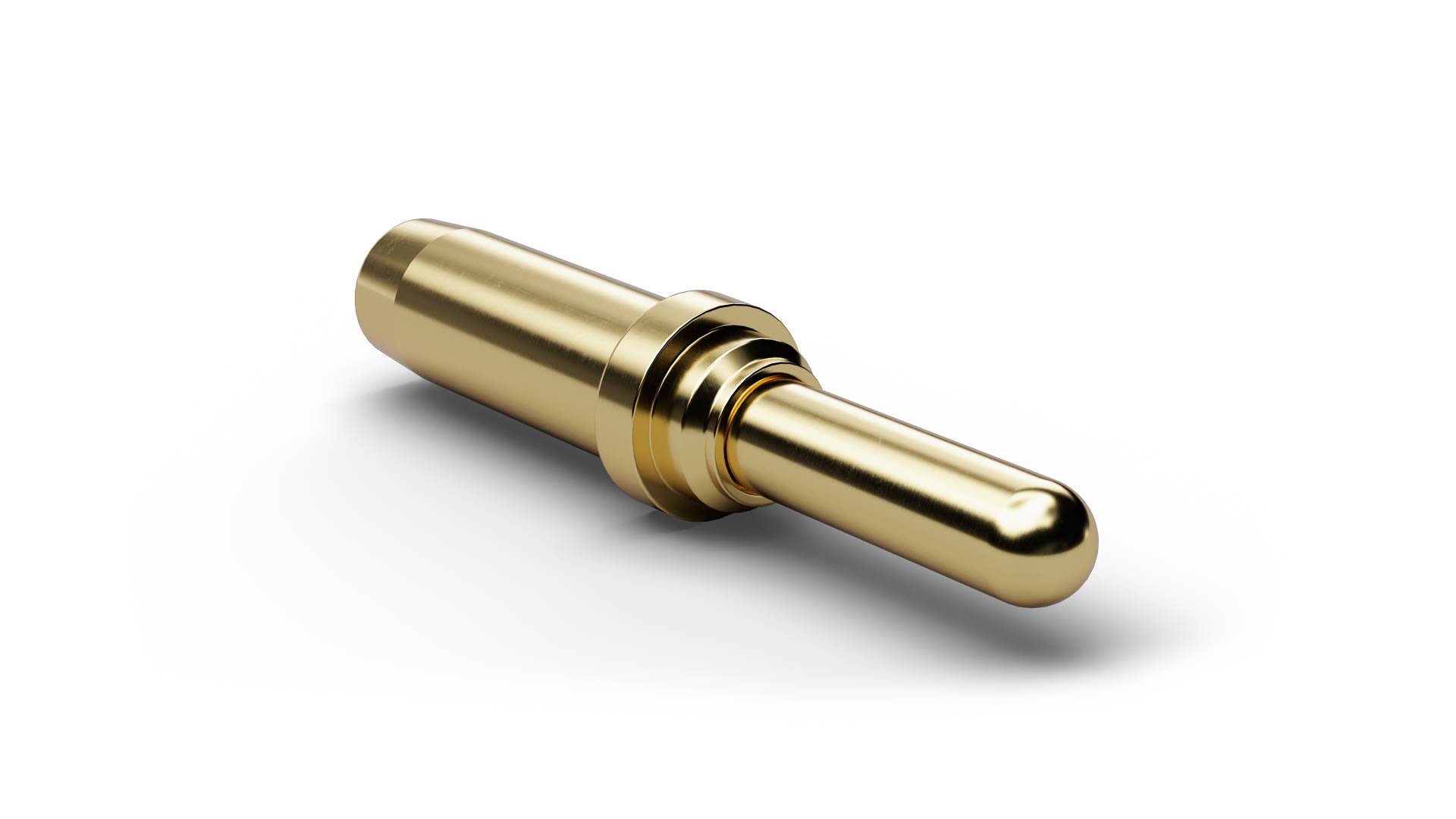

The Pogo Connector P09011B060G020ML053H (item number 1014092) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P09011B060G020ML053H is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P09011B060G020ML053H is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P09011B060G020ML053H, a pitch of 1.7 mm / 67 mil is combined with 20 cN spring force and 1 mm nominal travel. P09011B060G020ML053H is rated for 5 A continuous current with a typical contact resistance of 100 mΩ. On P09011B060G020ML053H, tip style 11 (Spherical) has a diameter of 0.6 mm. The final H identifies the high-temperature version; P09011B060G020ML053H is suitable for applications up to 200 °C.
