Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F888 |
| Paso (mm/mil) | 6,00 / 236 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 11 |
| Diámetro del estilo de punta (mm) | 3 |
| Diámetro del casquillo (mm) | 5 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 90 |
| Material del émbolo | Brass |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 100 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 0.8 |
| Recorrido máximo (mm) | 0.9 |
| Rosca | M5 |
| Tamaño de herramienta (mm) | 5 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 10 |
| Resistencia de contacto típica (mΩ) | 20 |

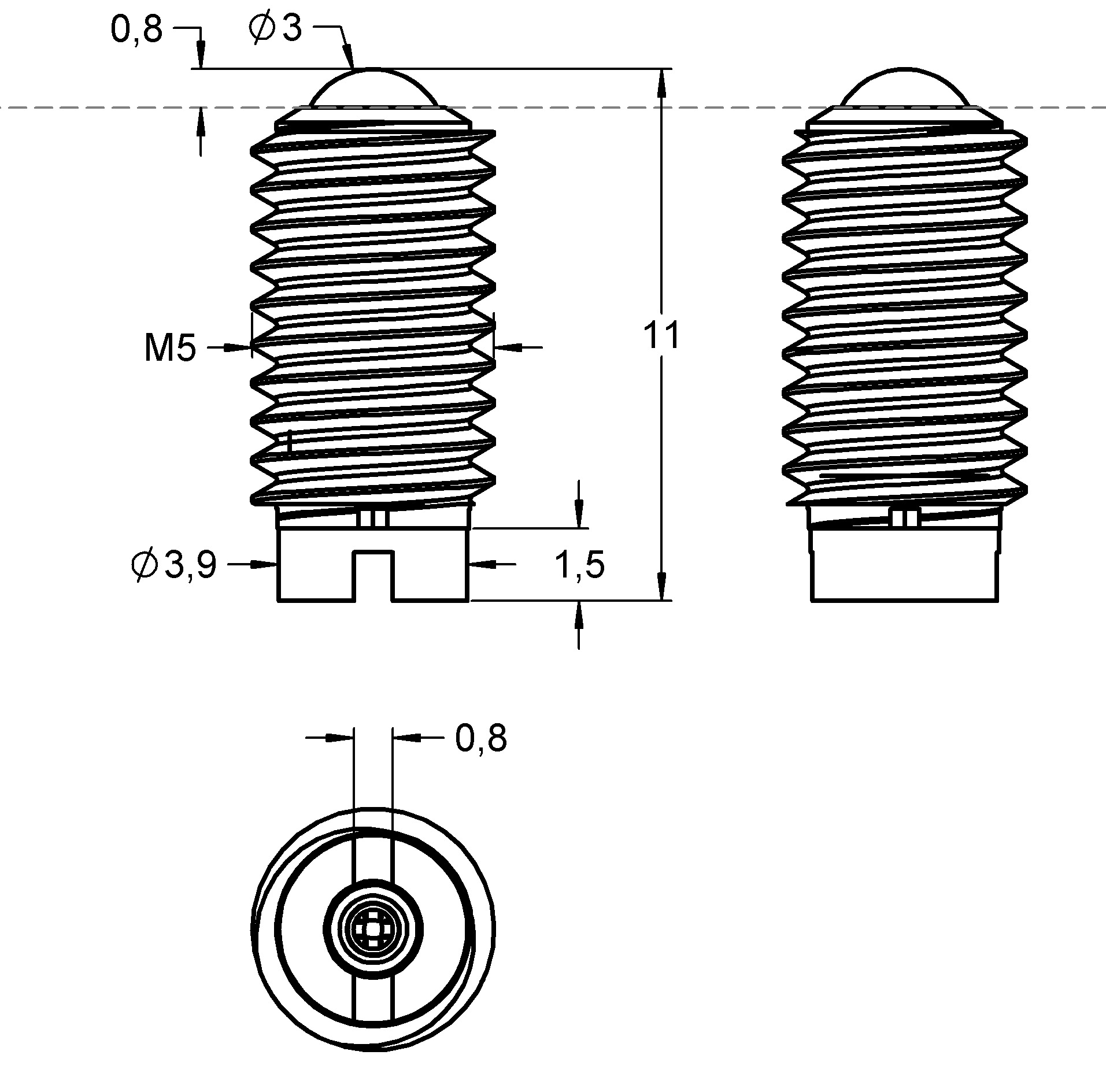

Gráficos
Beschreibung des Produkts

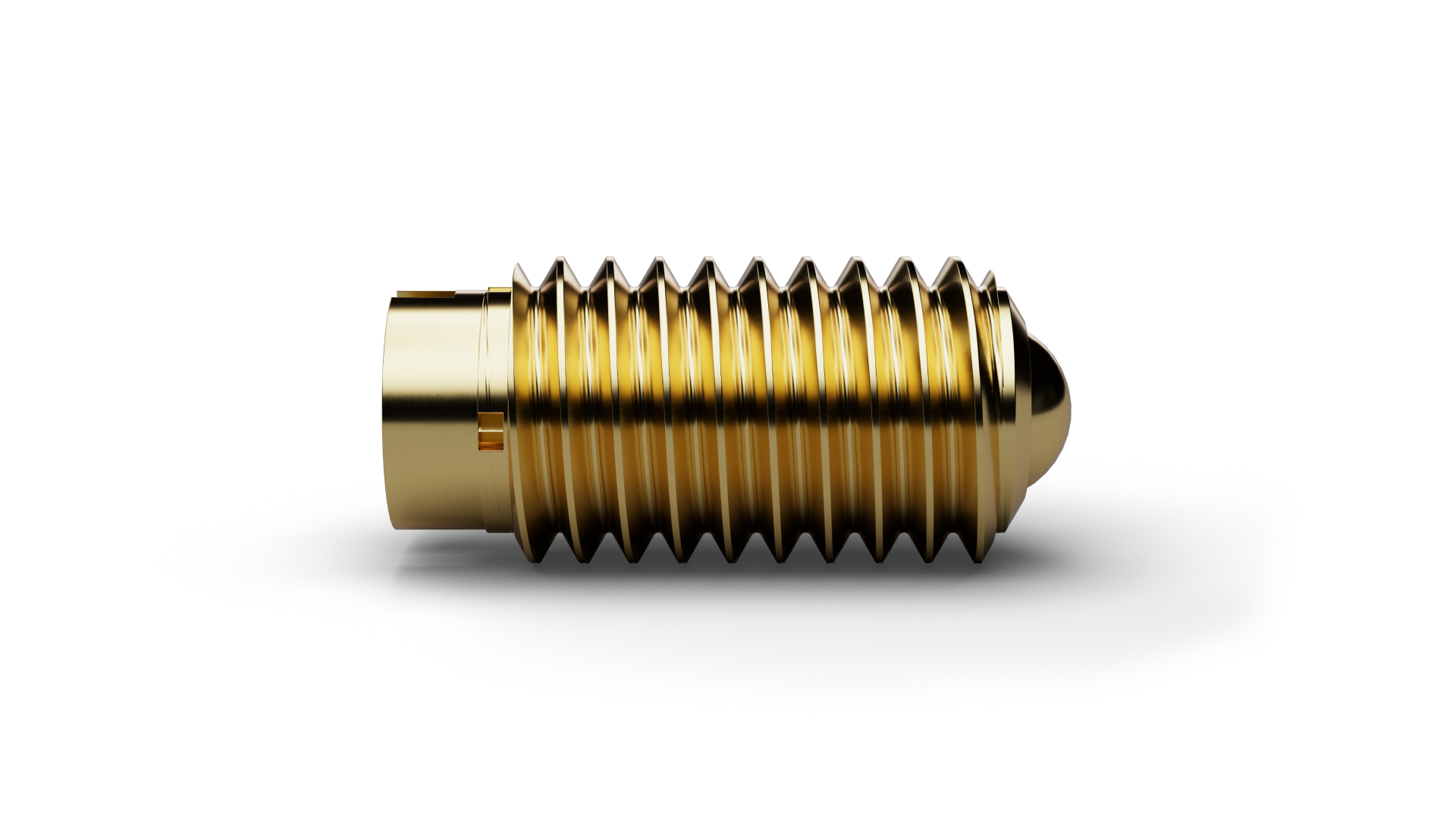

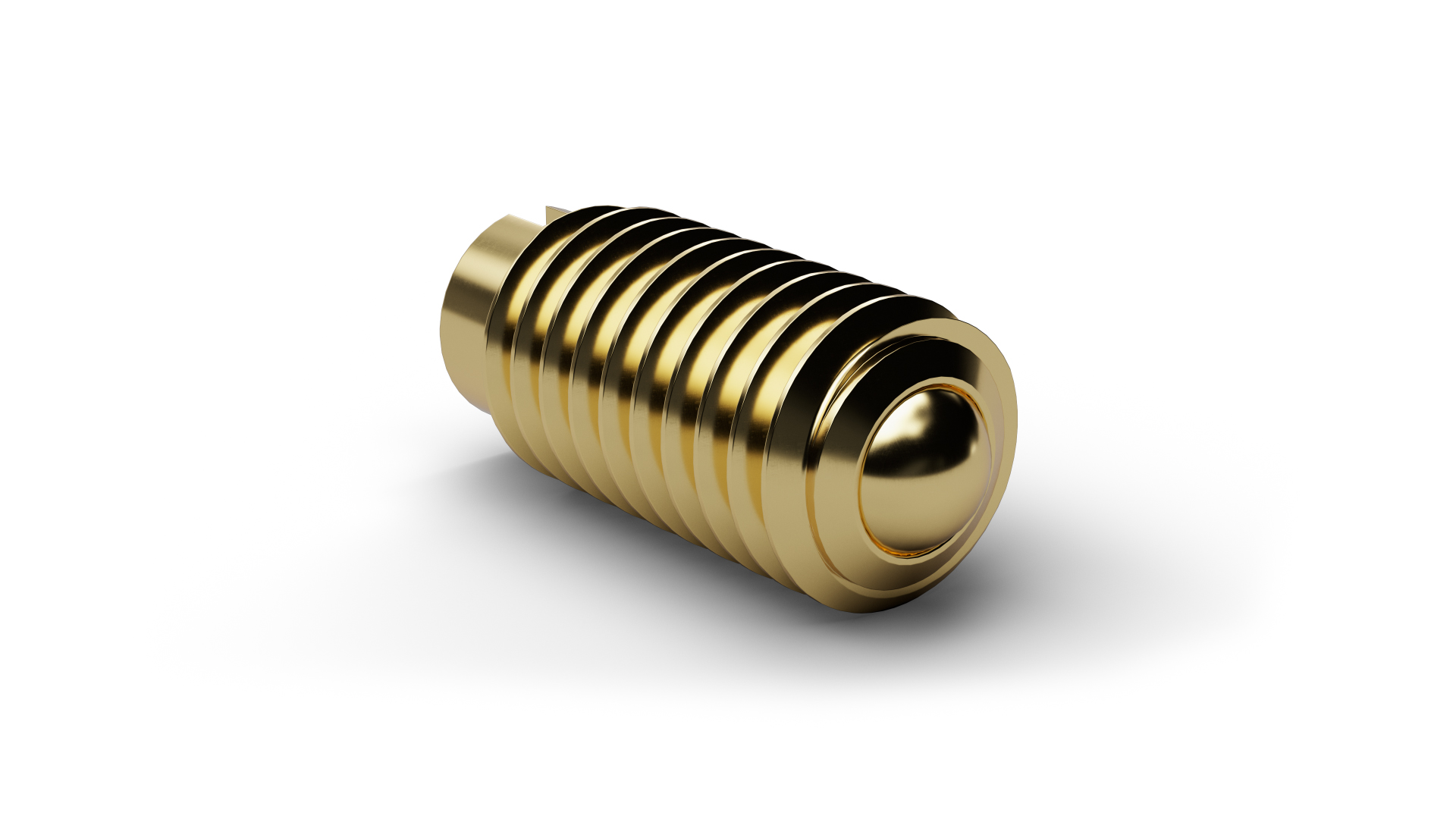

The Basic Threaded Probe F88890M2104G150 (item number 1014734) is a spring-loaded Contact Probe with threaded installation. The threaded mounting of F88890M2104G150 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F88890M2104G150 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, the design uses an M5 thread. For a pitch of 6 mm / 236 mil, spring force is 150 cN at a nominal travel of 0.8 mm. The electrical rating of F88890M2104G150 combines 10 A continuous current with 20 mΩ typical contact resistance.
