Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCB095 |
| Paso (mm/mil) | 12,0 / 472 |
| Temperatura | -45°C...+200°C |
| Definición adicional | A |

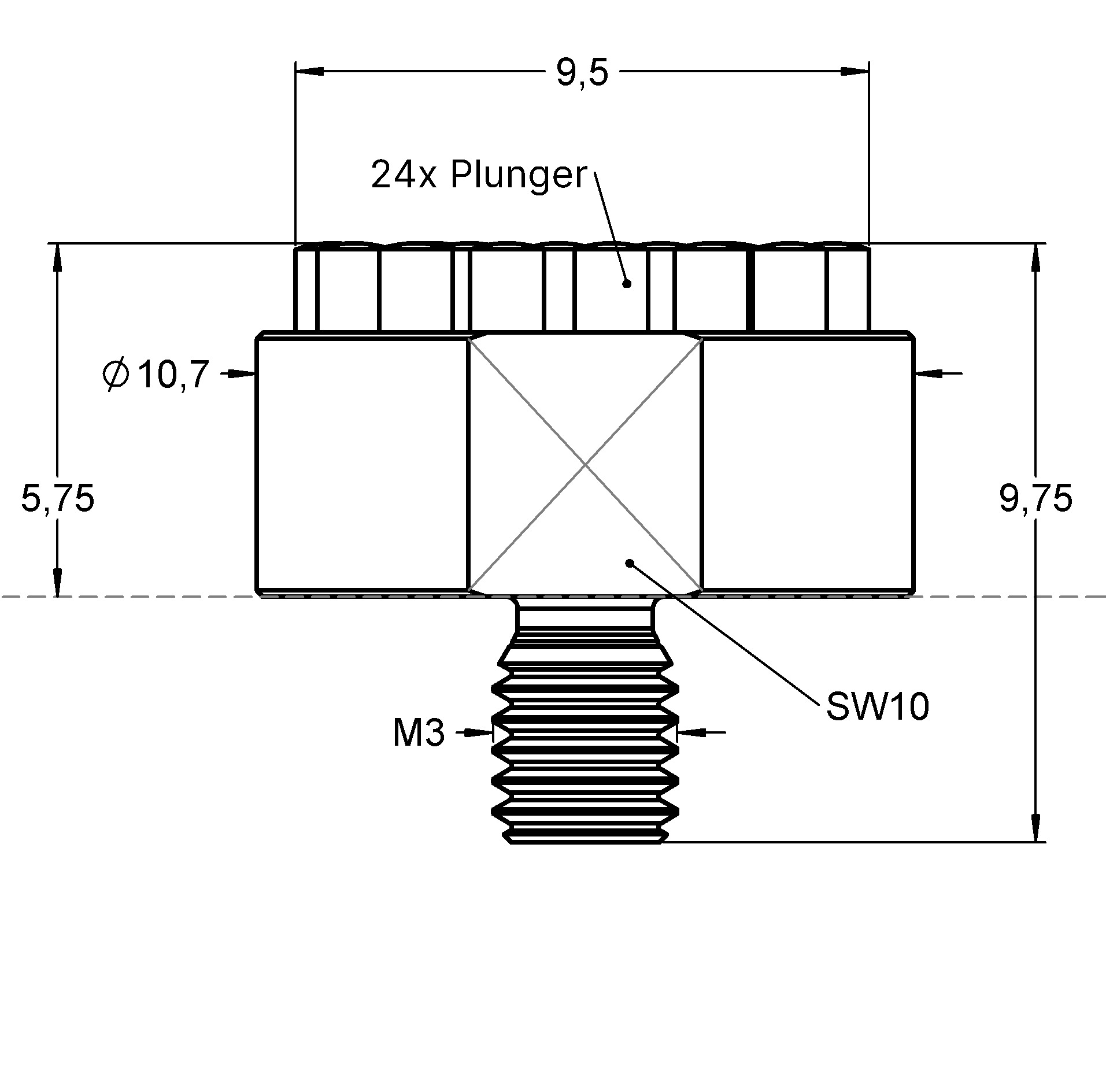

| Dimensiones | |
|---|---|
| Longitud total (mm) | 7.7 |
| Altura sobresaliente (mm) | 4.85 |
| Diámetro del estilo de punta (mm) | 1.2 |
| Diámetro del casquillo (mm) | 10.7 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Copper |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 960 |
| Fuerza del resorte (cN) | 1920 |
| Recorrido nominal (mm) | 0.9 |
| Recorrido máximo (mm) | 1.2 |
| Rosca | M3 |
| Tamaño de herramienta (mm) | 10,0 |
| Conexión | Thread |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 100 |
| Resistencia de contacto típica (mΩ) | 2 |

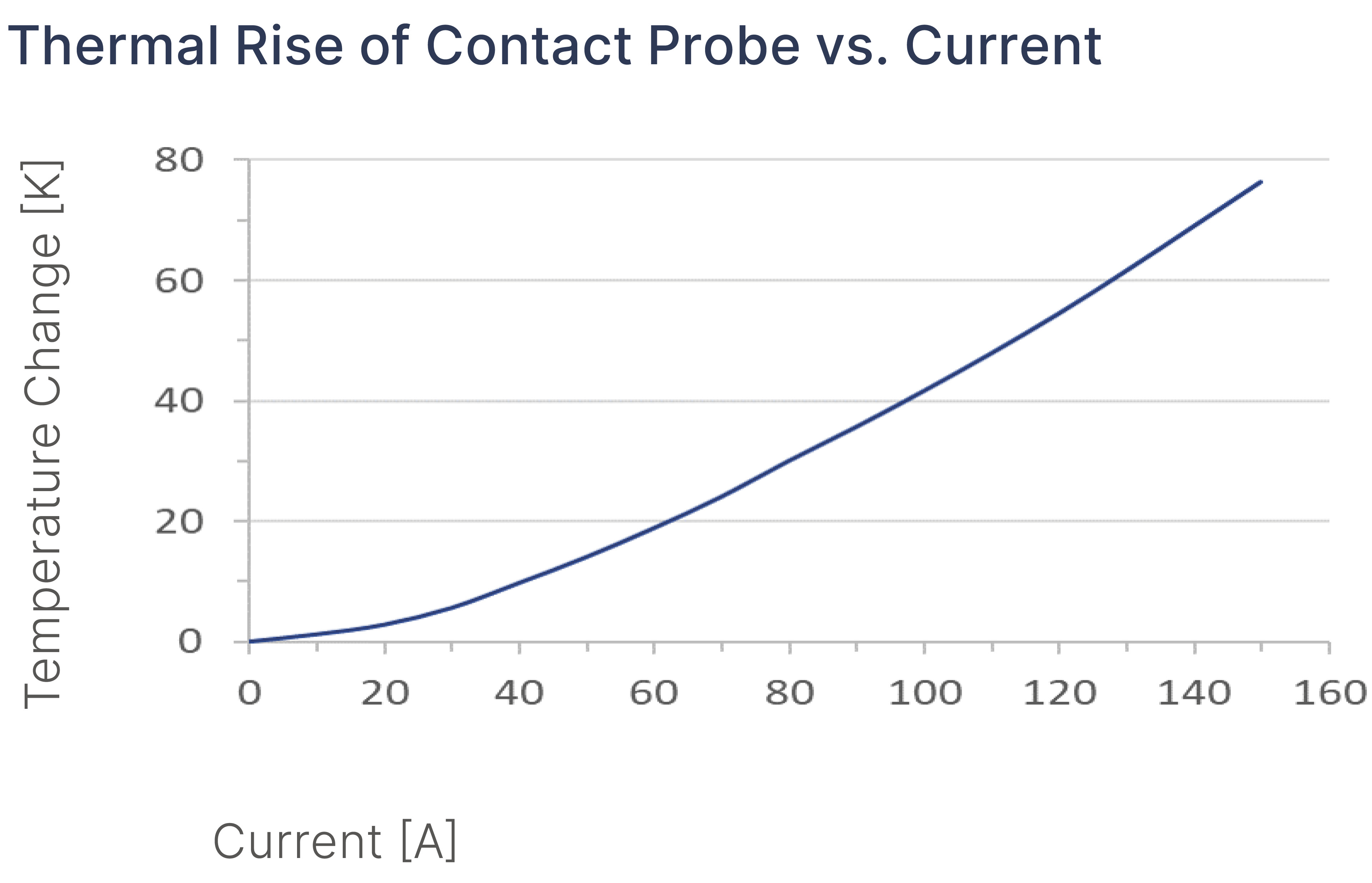

Gráficos
Beschreibung des Produkts

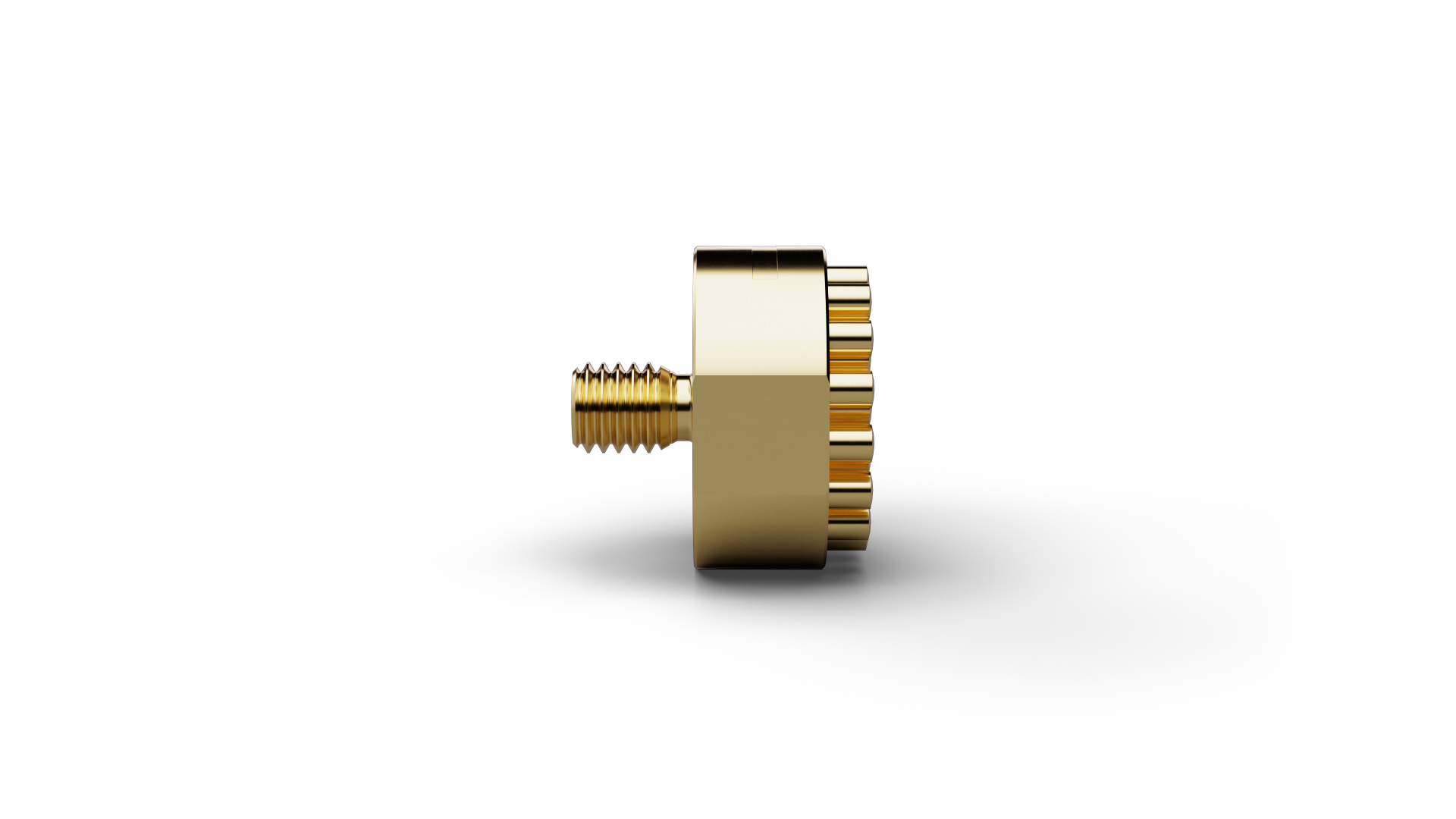

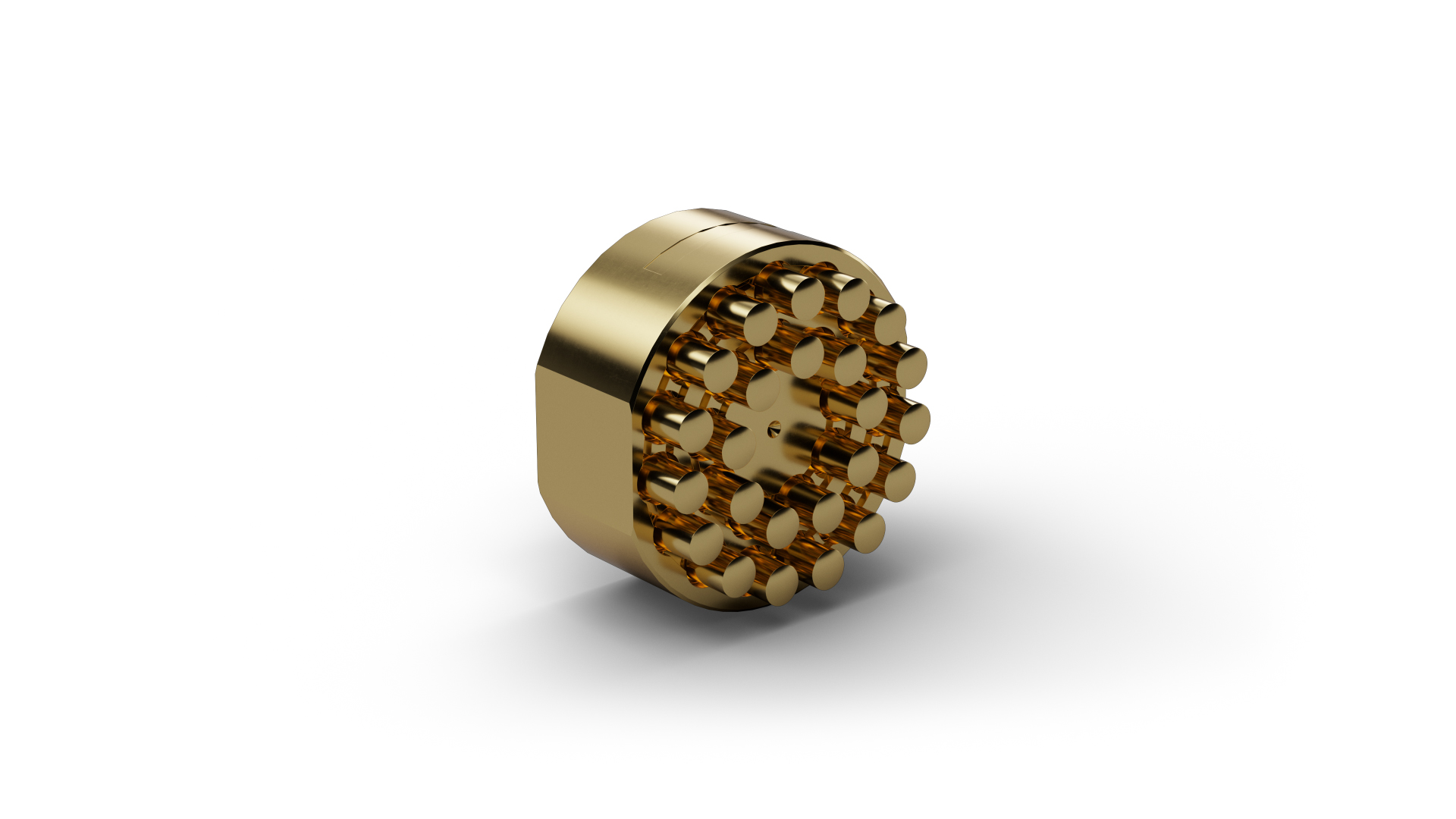

The High Current Probe HCB095A11CUG19 (item number 1015191) is designed for safe transmission of high electrical currents in test and contacting applications. HCB095A11CUG19 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCB095A11CUG19, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCB095A11CUG19 includes battery and power-electronics testing. The probe is rated for 100 A continuous current with a typical contact resistance of 2 mΩ. Spring force is 1920 cN at a nominal travel of 0.9 mm.
