Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F100 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 33.3 |
| Altura sobresaliente (mm) | 8.5 |
| Diámetro del estilo de punta (mm) | 1.5 |
| Diámetro del casquillo (mm) | 1.37 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 35 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 80 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

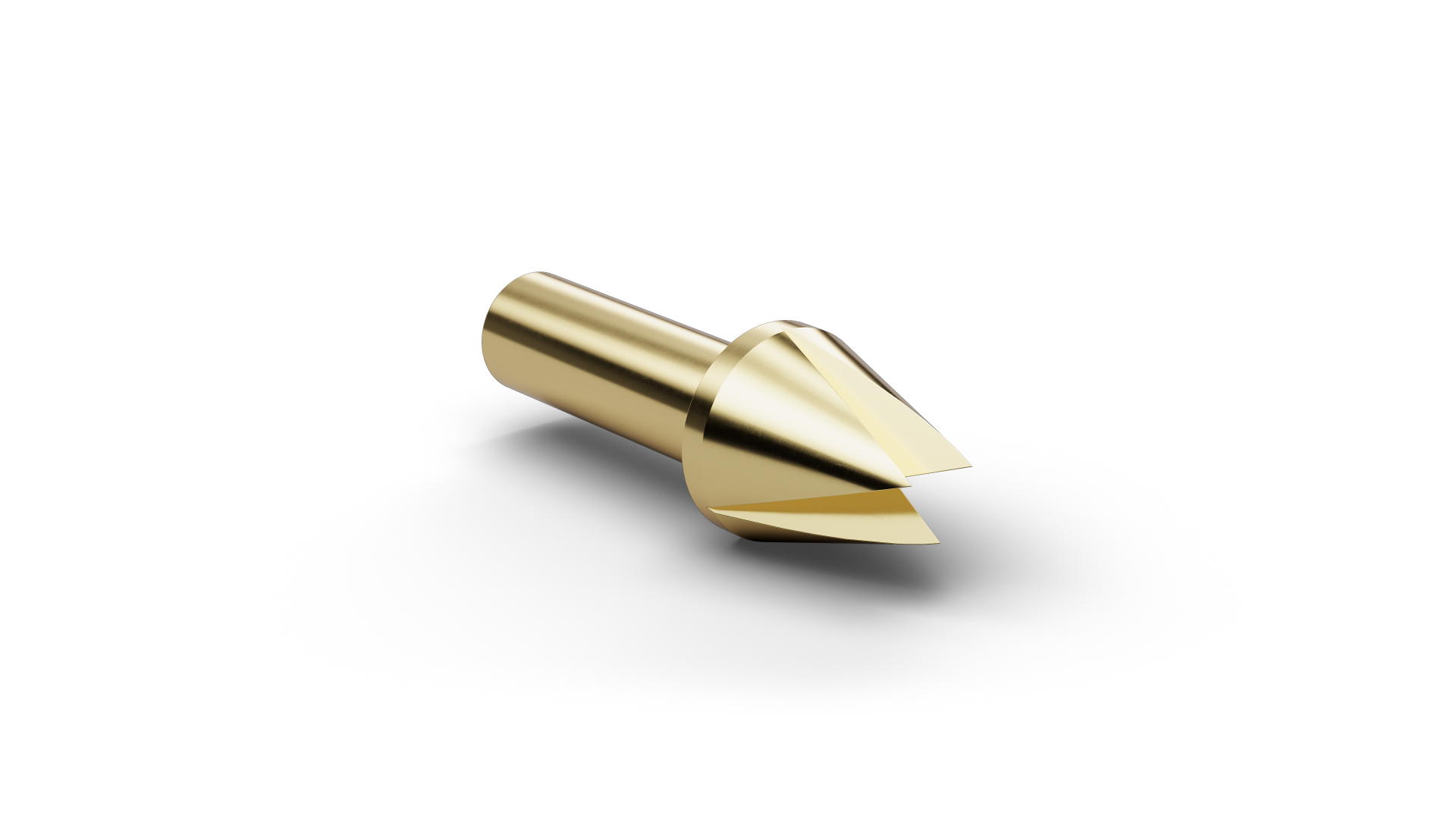

The Basic Contact Probe F10035S150L150 (item number 1017545) is a spring-loaded probe for temporary electrical contact with test points. With tip style 35 (3-point crown stepped (self-cleaning)), F10035S150L150 combines ICT/FCT use with a geometry intended for solder pads and vias. F10035S150L150 combines a pitch of 2.54 mm / 100 mil with tip style 35 (3-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F10035S150L150, spring force is 150 cN at a nominal travel of 4.3 mm. The electrical rating of F10035S150L150 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F10035S150L150 is made of steel and uses Longtime Gold plating.
