Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F588 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Definición adicional | S1 |

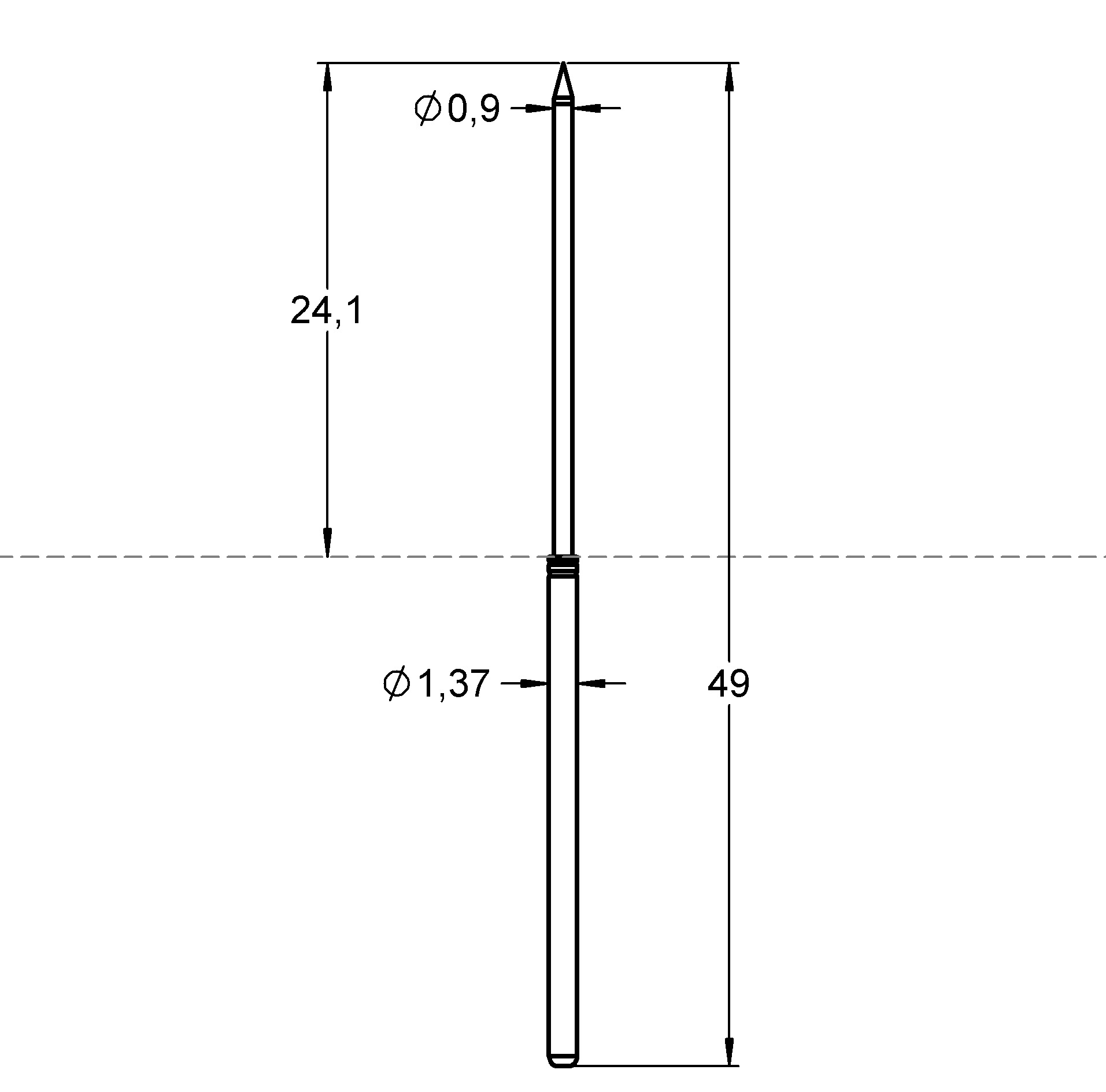

| Dimensiones | |
|---|---|
| Longitud total (mm) | 49 |
| Altura sobresaliente (mm) | 24.1 |
| Diámetro del estilo de punta (mm) | 0.9 |
| Diámetro del casquillo (mm) | 1.37 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 18 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 180 |
| Recorrido nominal (mm) | 9.3 |
| Recorrido máximo (mm) | 11.7 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos

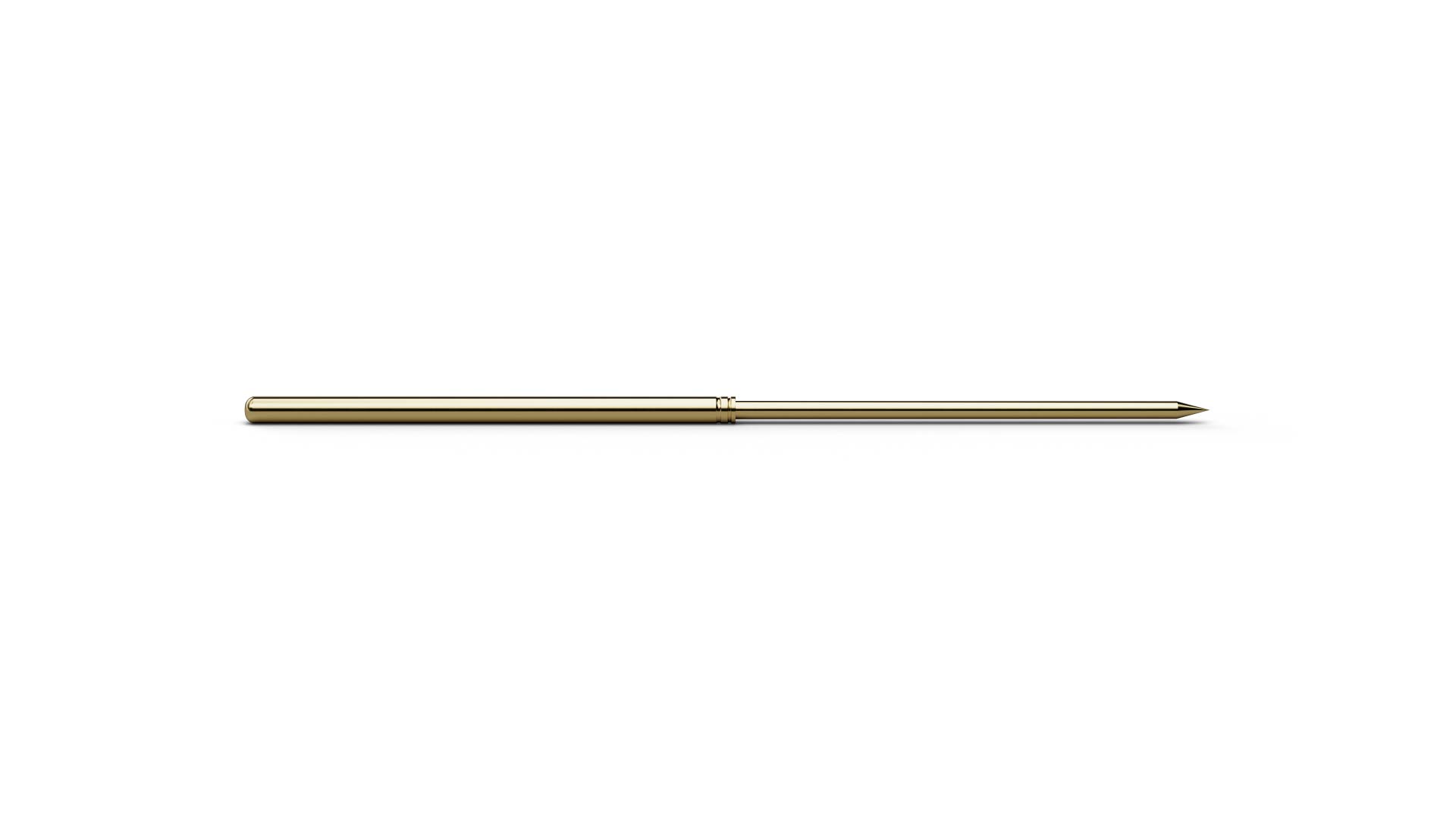

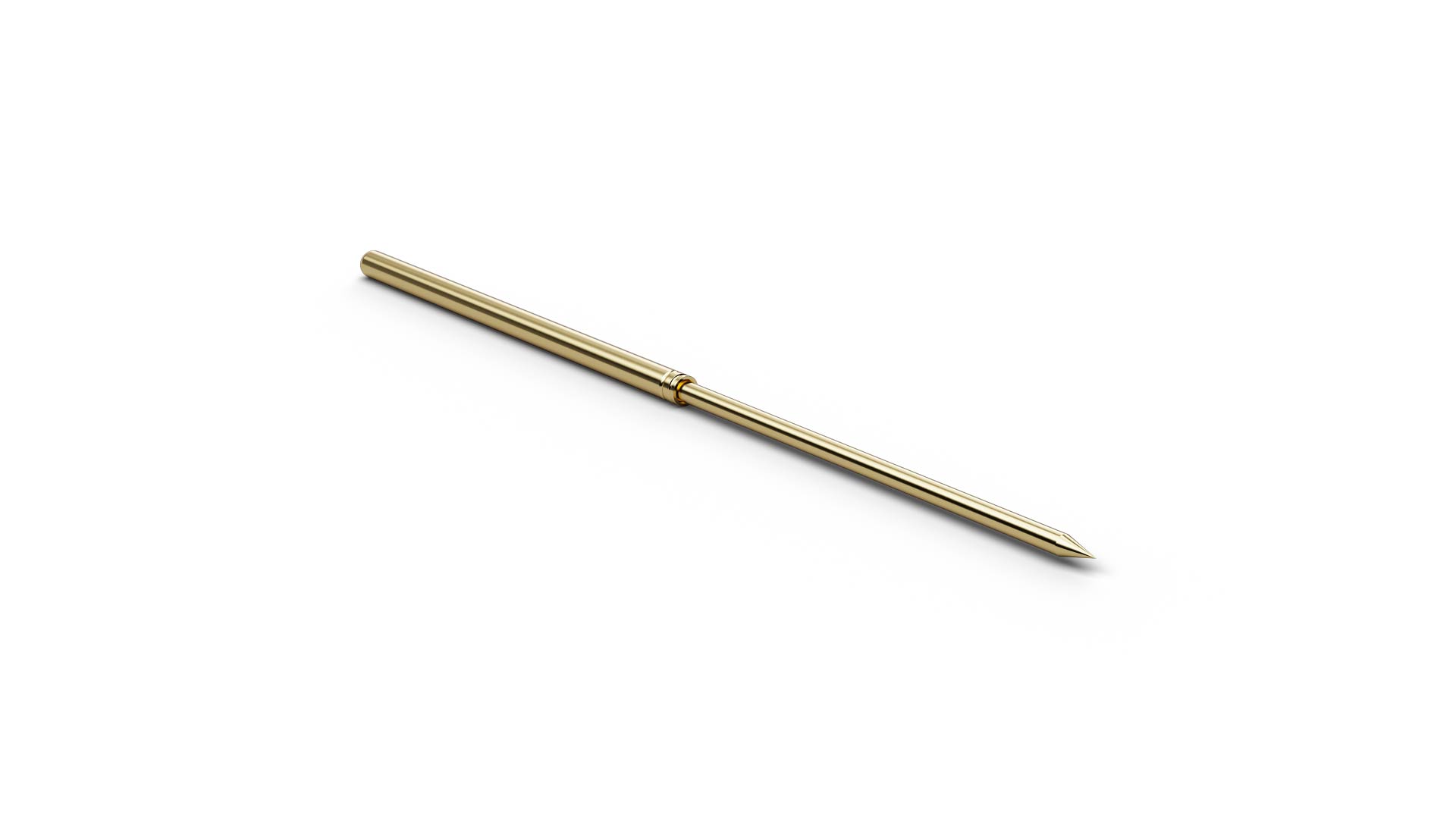

Beschreibung des Produkts
F58818B090G180S1 (item number 1018933) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 18 (Conical 30°), F58818B090G180S1 combines ICT/FCT use with a geometry intended for solder pads and vias. F58818B090G180S1 combines a pitch of 2.54 mm / 100 mil with tip style 18 (Conical 30°) and a tip diameter of 0.9 mm. F58818B090G180S1 operates with 180 cN spring force and 9.3 mm nominal travel. F58818B090G180S1 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58818B090G180S1 is made of beryllium copper and is gold-plated.
