Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F561 |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 17 |
| Altura sobresaliente (mm) | 4.5 |
| Diámetro del estilo de punta (mm) | 1.5 |
| Diámetro del casquillo (mm) | 1 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 05 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 70 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 2.4 |
| Recorrido máximo (mm) | 3 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

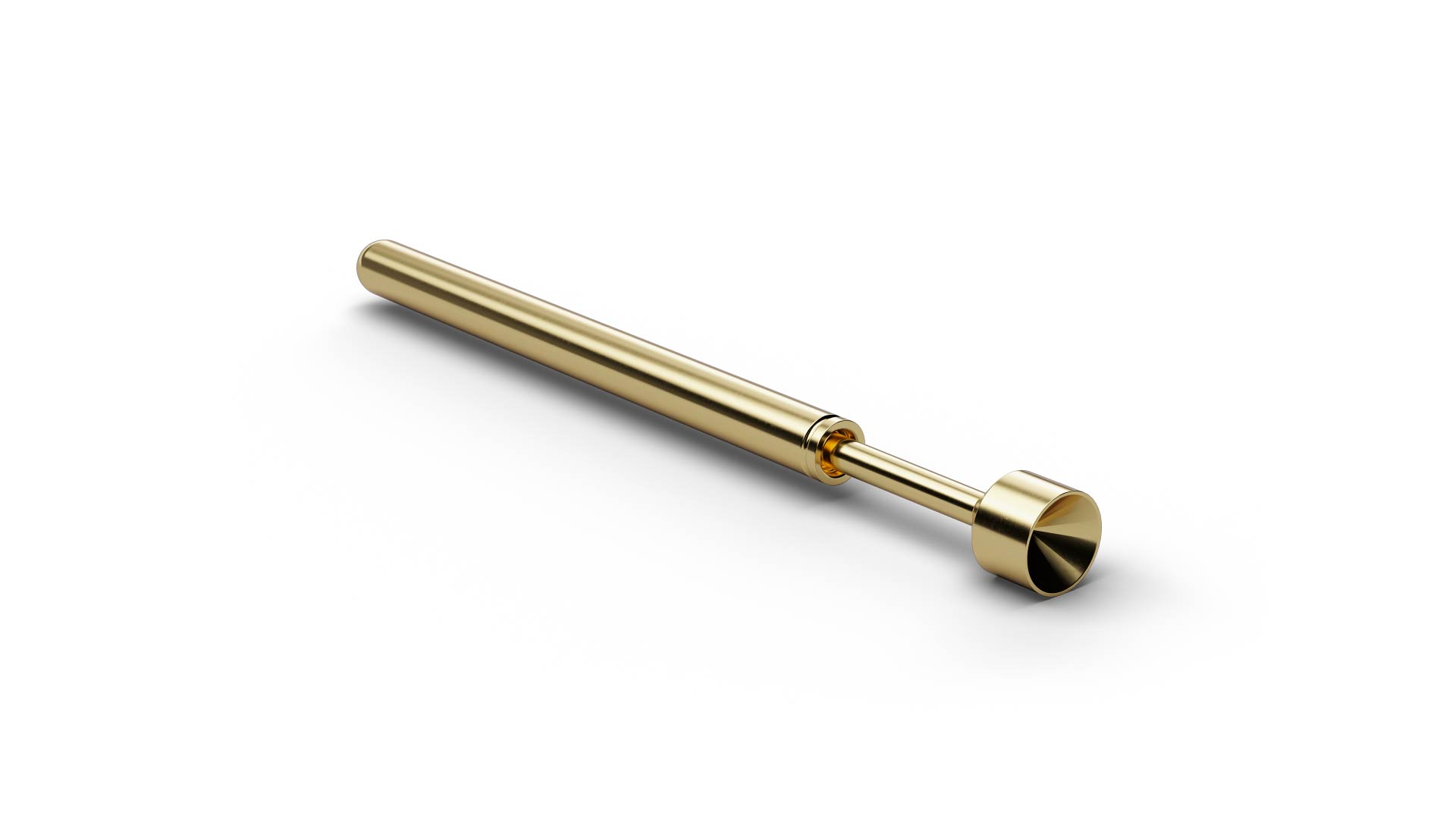

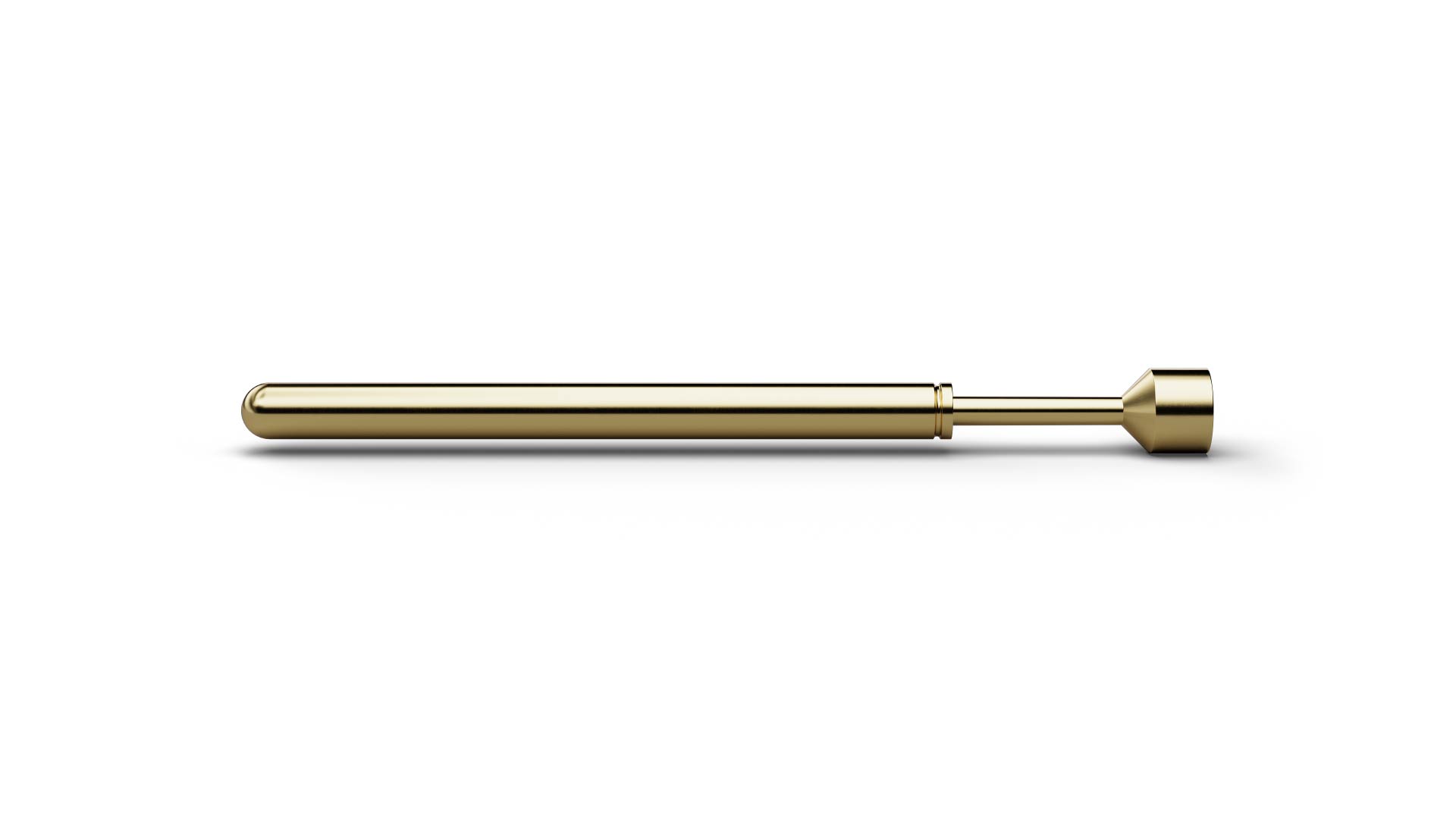

As a Basic Contact Probe, F56105B150G150 (item number 1019562) establishes a spring-loaded electrical connection to the test point. With tip style 05 (Concave stepped), F56105B150G150 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F56105B150G150 combines a pitch of 1.9 mm / 75 mil with tip style 05 (Concave stepped) and a tip diameter of 1.5 mm. F56105B150G150 operates with 150 cN spring force and 2.4 mm nominal travel. F56105B150G150 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F56105B150G150 is made of beryllium copper and is gold-plated.
