Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | P-T / P197T-L106 |
| Paso (mm/mil) | 3,00 / 118 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 10.6 |
| Altura sobresaliente (mm) | 5.1 |
| Diámetro del estilo de punta (mm) | 1.3 |
| Diámetro del casquillo (mm) | 1.97 |
| Diámetro del collar (mm) | 2.5 |
| Diámetro del anillo de presión (mm) | 2.5 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 75 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 1.5 |
| Recorrido máximo (mm) | 3 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 9 |
| Resistencia de contacto típica (mΩ) | 100 |
Gráficos
Beschreibung des Produkts

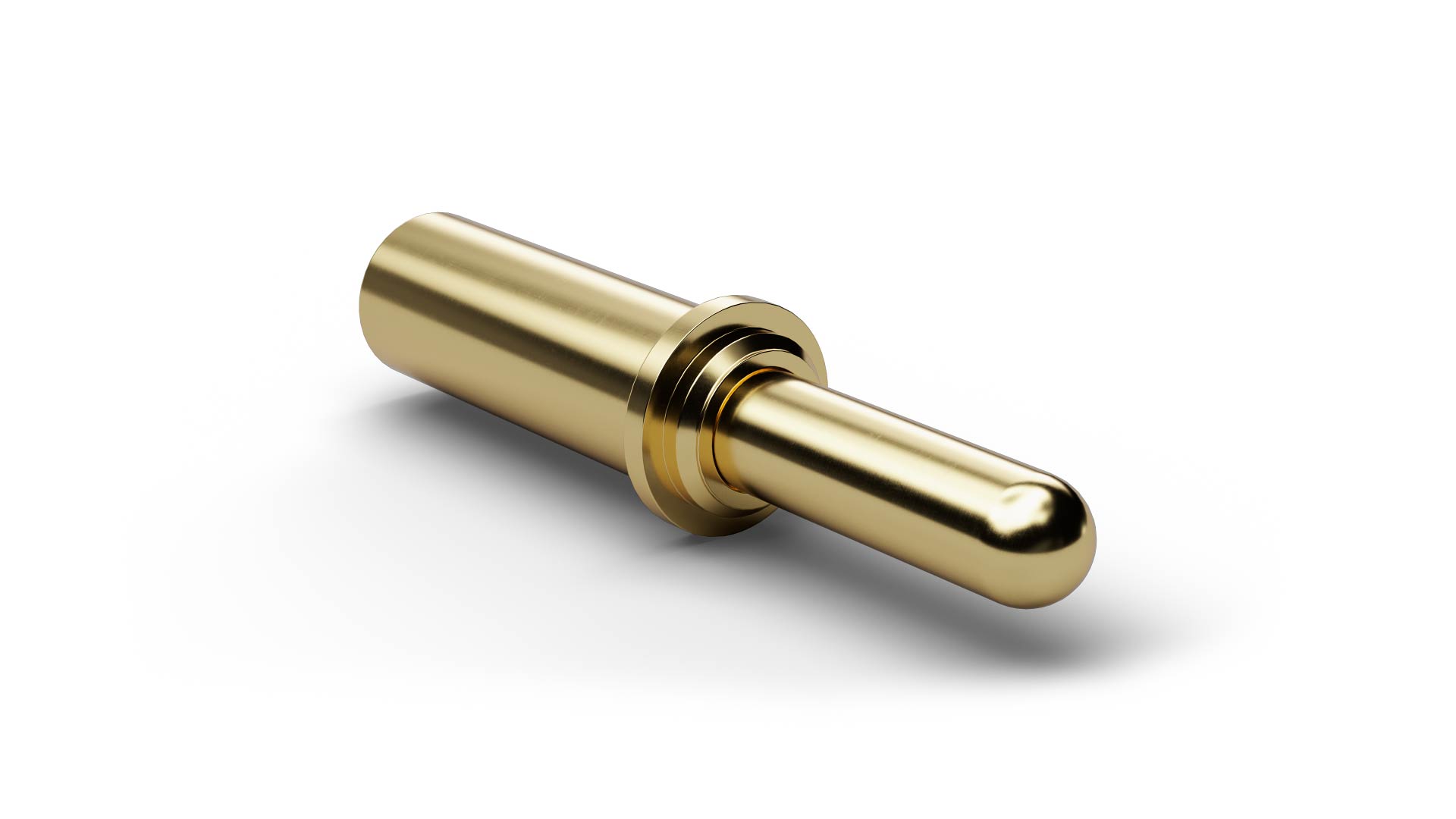

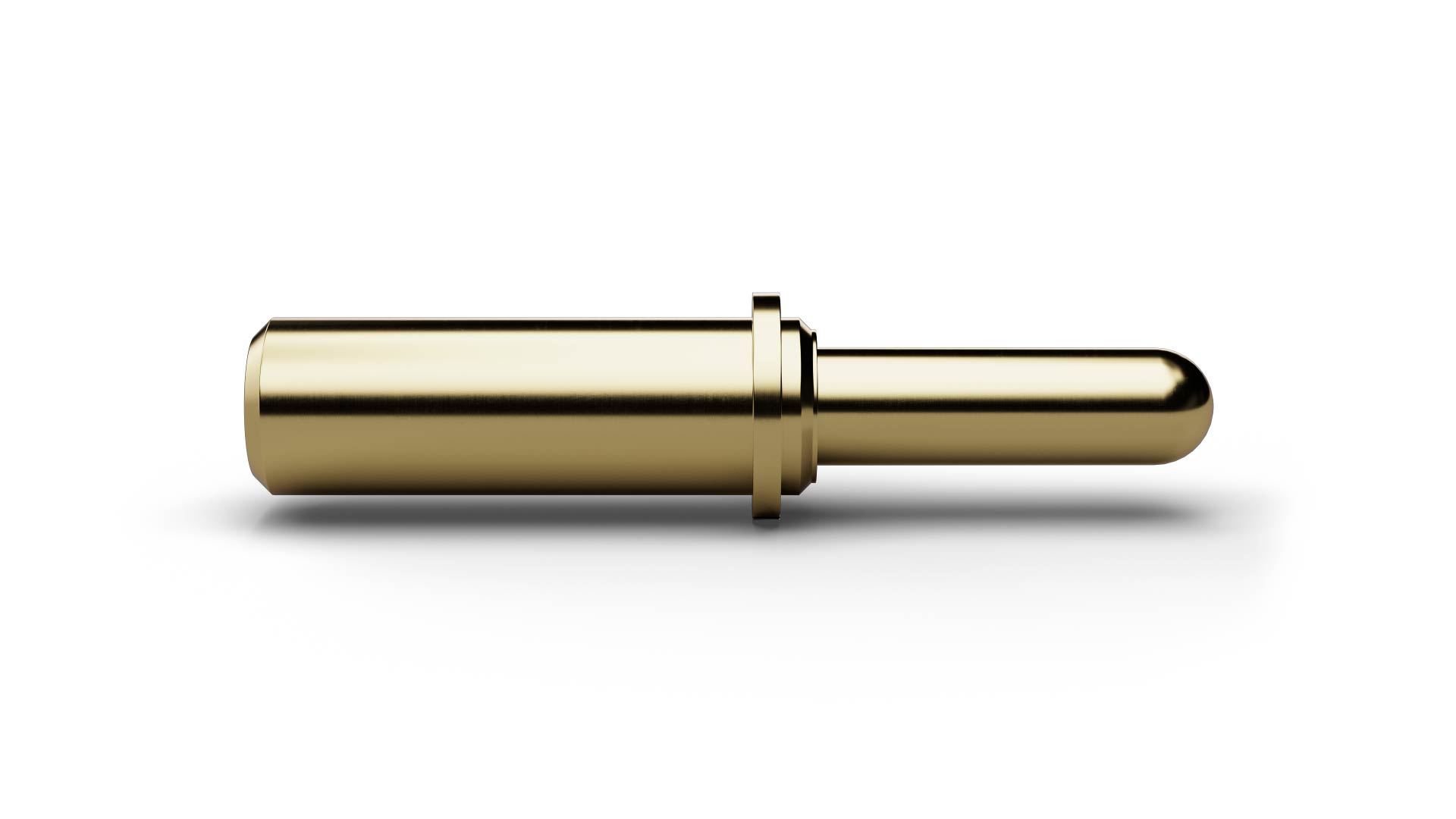

The Pogo Connector P19711B130G200TL106ST (item number 1019859) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P19711B130G200TL106ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P19711B130G200TL106ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P19711B130G200TL106ST, a pitch of 3 mm / 118 mil is combined with 200 cN spring force and 1.5 mm nominal travel. The electrical rating of P19711B130G200TL106ST combines 9 A continuous current with 100 mΩ typical contact resistance. On P19711B130G200TL106ST, tip style 11 (Spherical) has a diameter of 1.3 mm.
