Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F899-NO |
| Paso (mm/mil) | 10,0 / 394 |
| Temperatura | -45°C...+100°C |

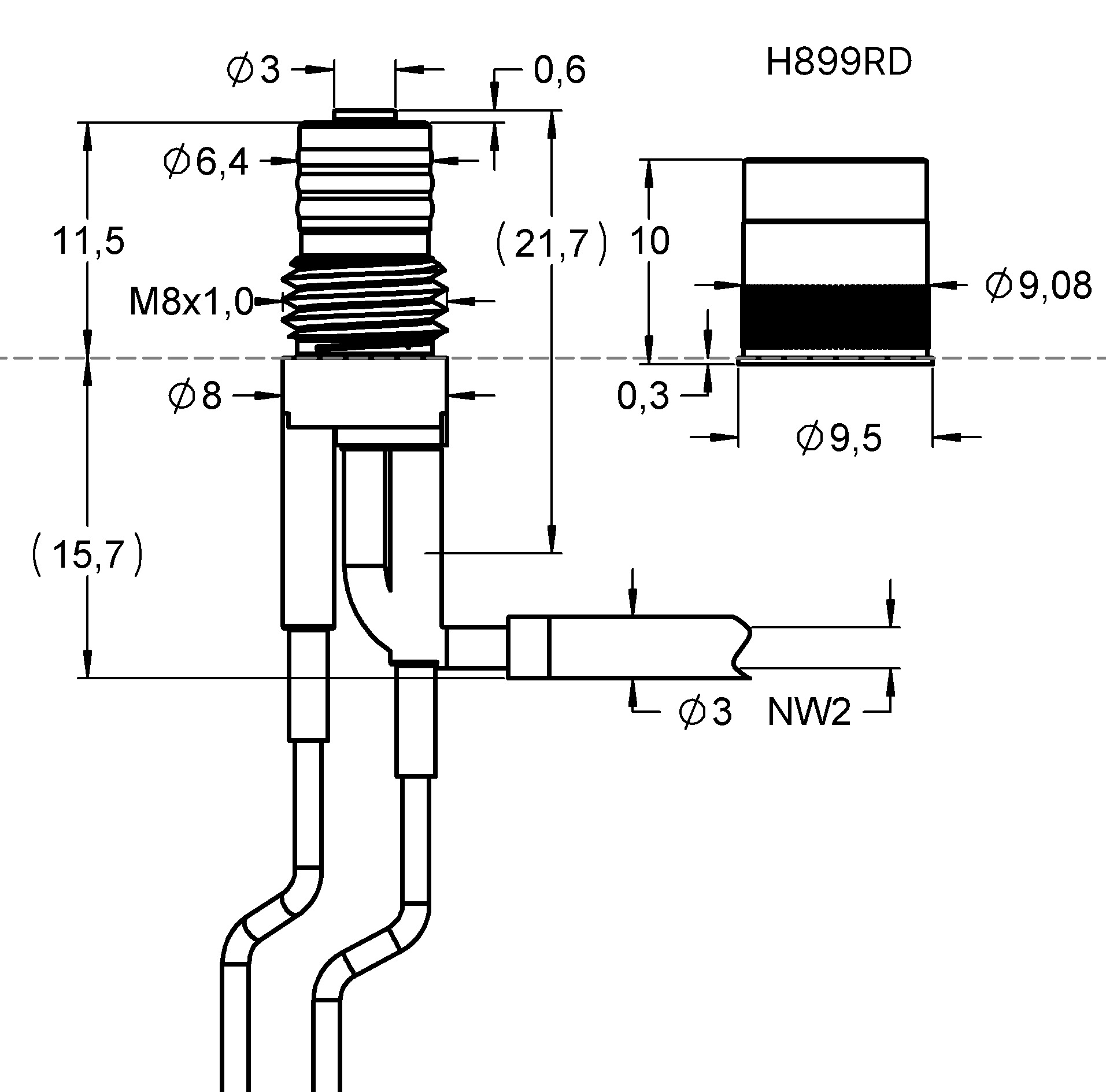

| Dimensiones | |
|---|---|
| Longitud total (mm) | 28 |
| Altura sobresaliente (mm) | 0.5 |
| Diámetro del estilo de punta (mm) | 3 |
| Diámetro del casquillo (mm) | 6 |
| Diámetro del collar (mm) | 7.3 |
| Diámetro del anillo de presión (mm) | 7.3 |
| Materiales y superficies | |
|---|---|

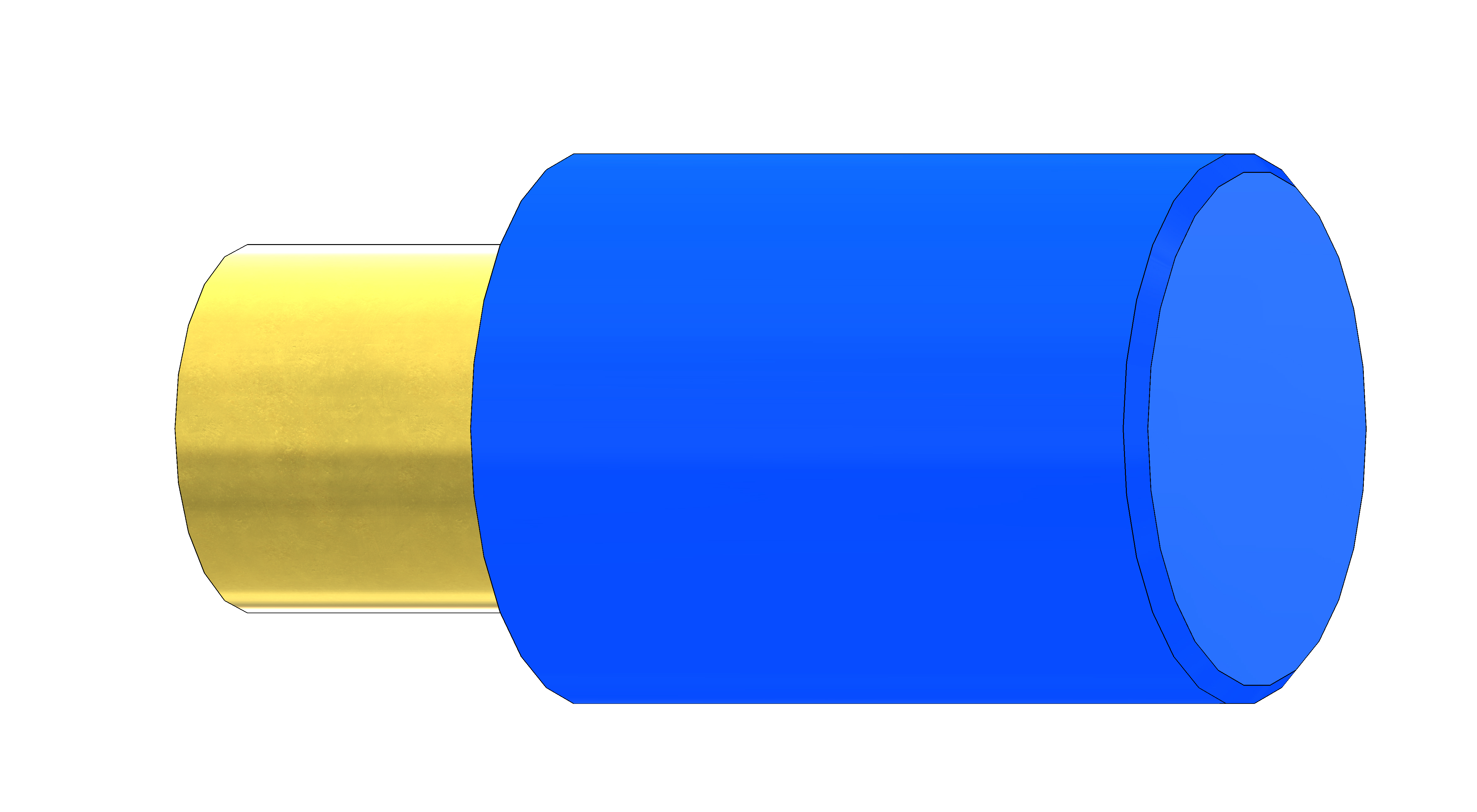

| Estilo de punta | 17K |
| Material del estilo de punta | Plastic |
| Recubrimiento del estilo de punta | Uncoated |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 190 |
| Fuerza del resorte (cN) | 350 |
| Recorrido nominal (mm) | 3.8 |
| Recorrido máximo (mm) | 5.3 |
| Rosca | M8X1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 100 |
| Tipo de interruptor | NO (Off-On-Off) |
| Recorrido del interruptor (mm) | 2 |
Gráficos
Beschreibung des Produkts

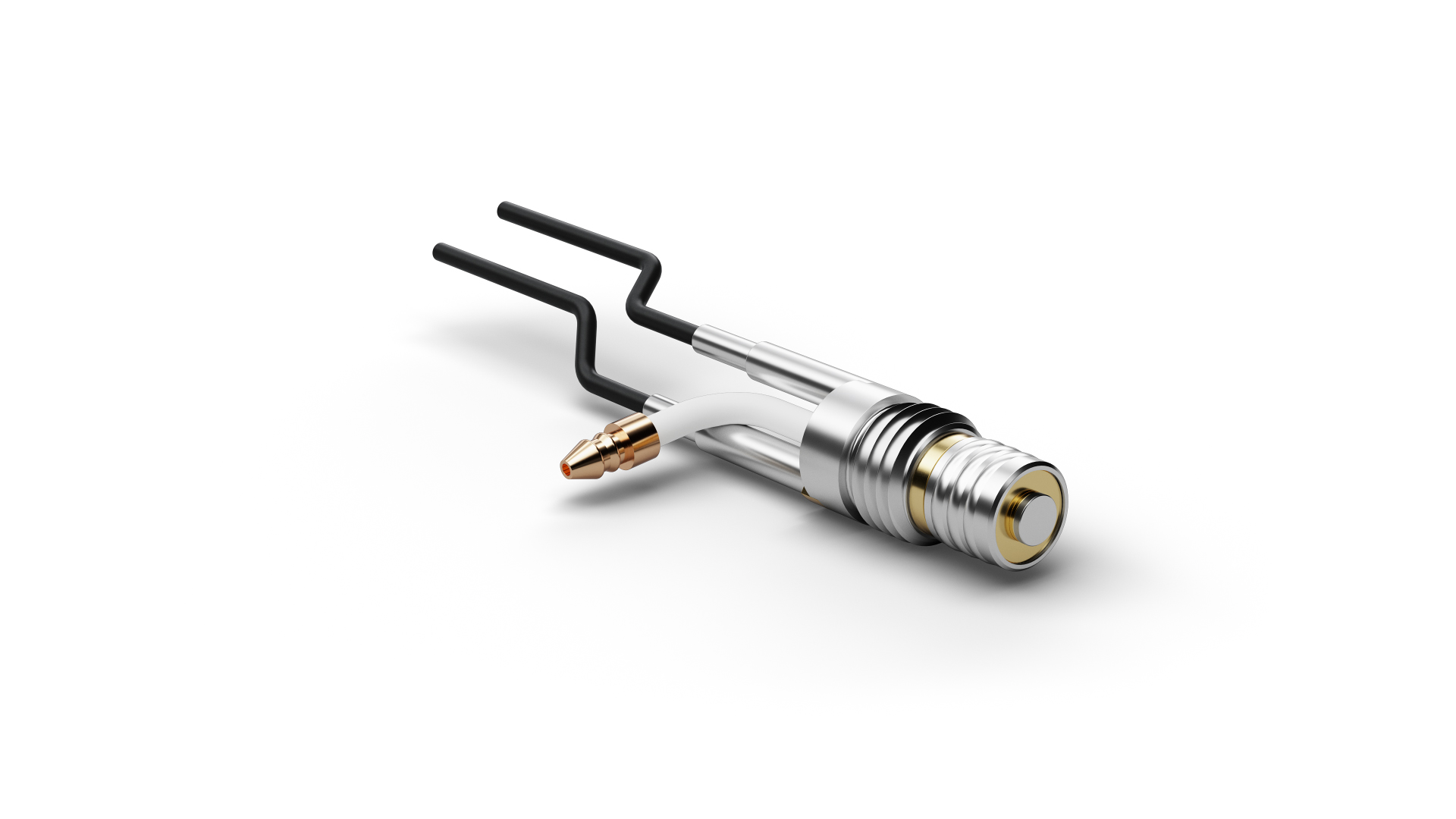

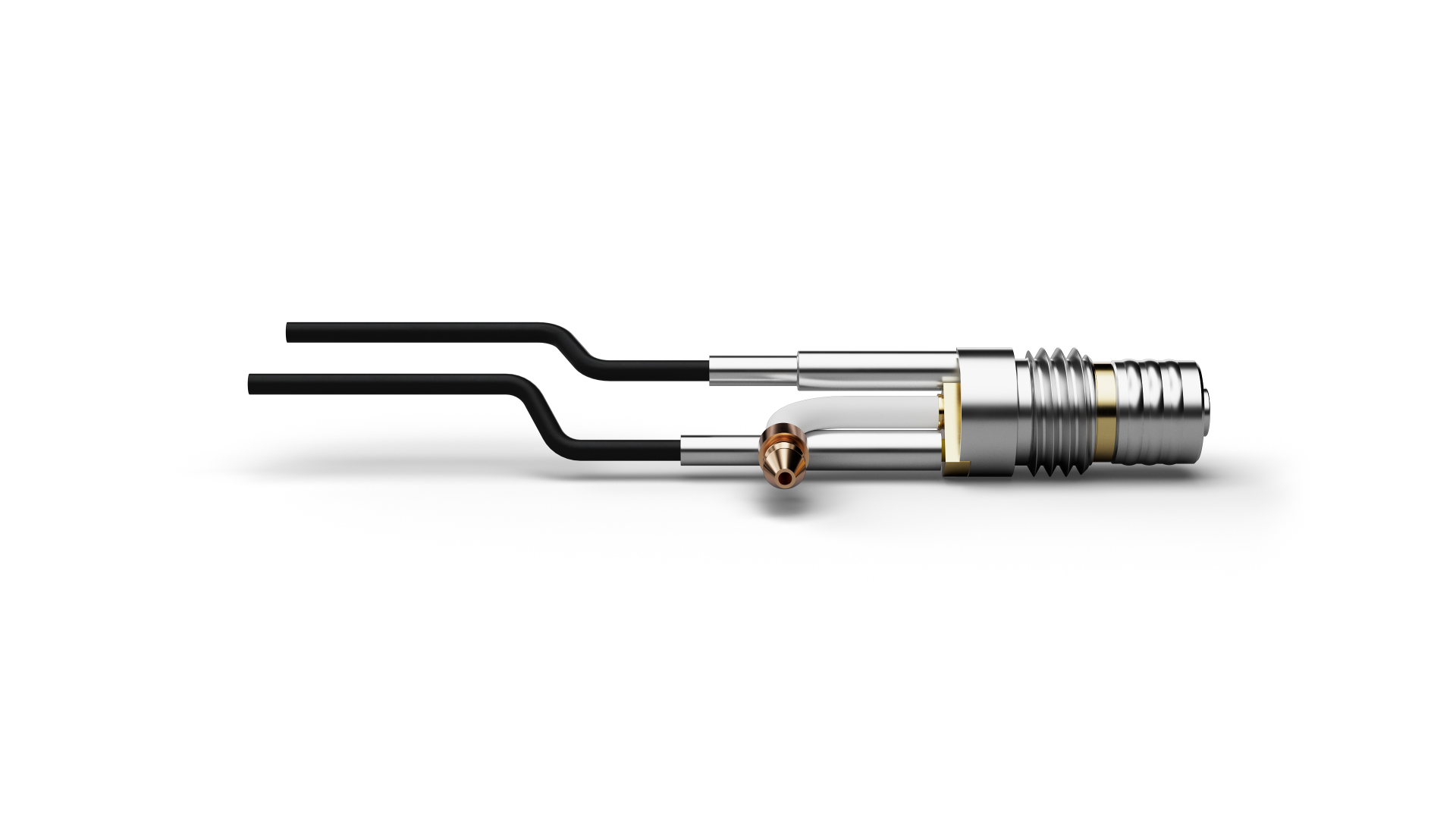

The Switch Probe for pneumatic solutions F899P0001 (item number 1021585) combines spring-loaded contacting with a defined switching or sensing function. F899P0001 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. F899P0001 is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. For F899P0001, spring force is 350 cN at a nominal travel of 3.8 mm. The electrical rating of F899P0001 combines 3 A continuous current with 100 mΩ typical contact resistance. F899P0001 combines a pitch of 10 mm / 394 mil with tip style 17K and a tip diameter of 3 mm.
