Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F100 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+80°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 33.3 |
| Altura sobresaliente (mm) | 8.5 |
| Diámetro del estilo de punta (mm) | 1.5 |
| Diámetro del casquillo (mm) | 1.37 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 17 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 150 |
| Fuerza del resorte (cN) | 300 |
| Recorrido nominal (mm) | 4.3 |
| Recorrido máximo (mm) | 6.4 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

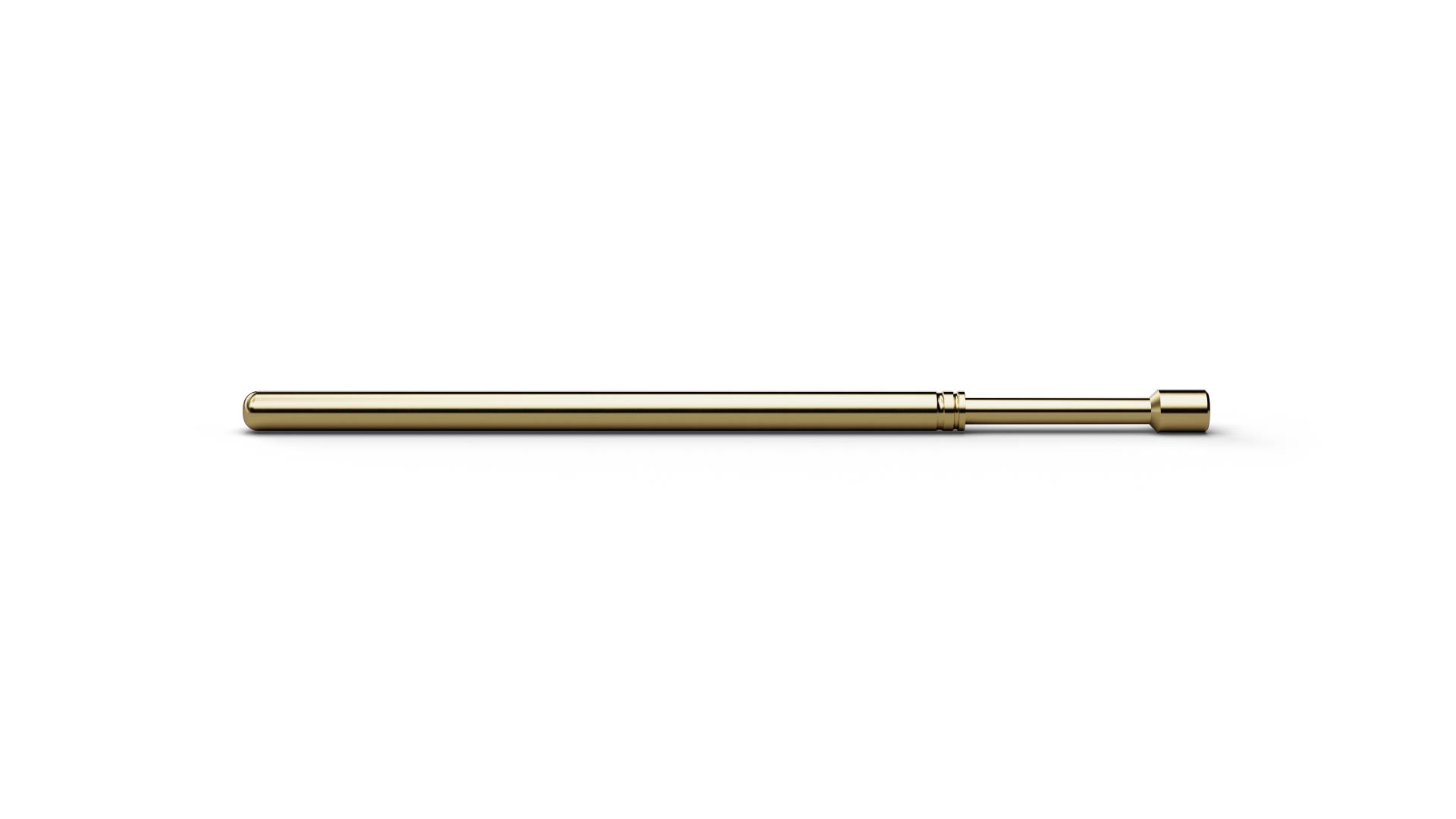

The Basic Contact Probe F10017B150G300 (item number 1023670) is a spring-loaded probe for temporary electrical contact with test points. With tip style 17 (Flat stepped), F10017B150G300 combines ICT/FCT use with a geometry intended for solder pads and contact pins. F10017B150G300 combines a pitch of 2.54 mm / 100 mil with tip style 17 (Flat stepped) and a tip diameter of 1.5 mm. F10017B150G300 operates with 300 cN spring force and 4.3 mm nominal travel. F10017B150G300 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10017B150G300 is made of beryllium copper and is gold-plated.
