Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | P-M / P070M-L060 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+200°C |
| Definición adicional | H |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 6 |
| Altura sobresaliente (mm) | 3.8 |
| Diámetro del estilo de punta (mm) | 0.45 |
| Diámetro del casquillo (mm) | 0.7 |
| Diámetro del collar (mm) | 0.9 |
| Diámetro del anillo de presión (mm) | 0.9 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 15 |
| Fuerza del resorte (cN) | 30 |
| Recorrido nominal (mm) | 1 |
| Recorrido máximo (mm) | 1.25 |
| Precisión de punteo +/- (mm) | 0.08 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 6 |
| Resistencia de contacto típica (mΩ) | 25 |
Gráficos
Beschreibung des Produkts

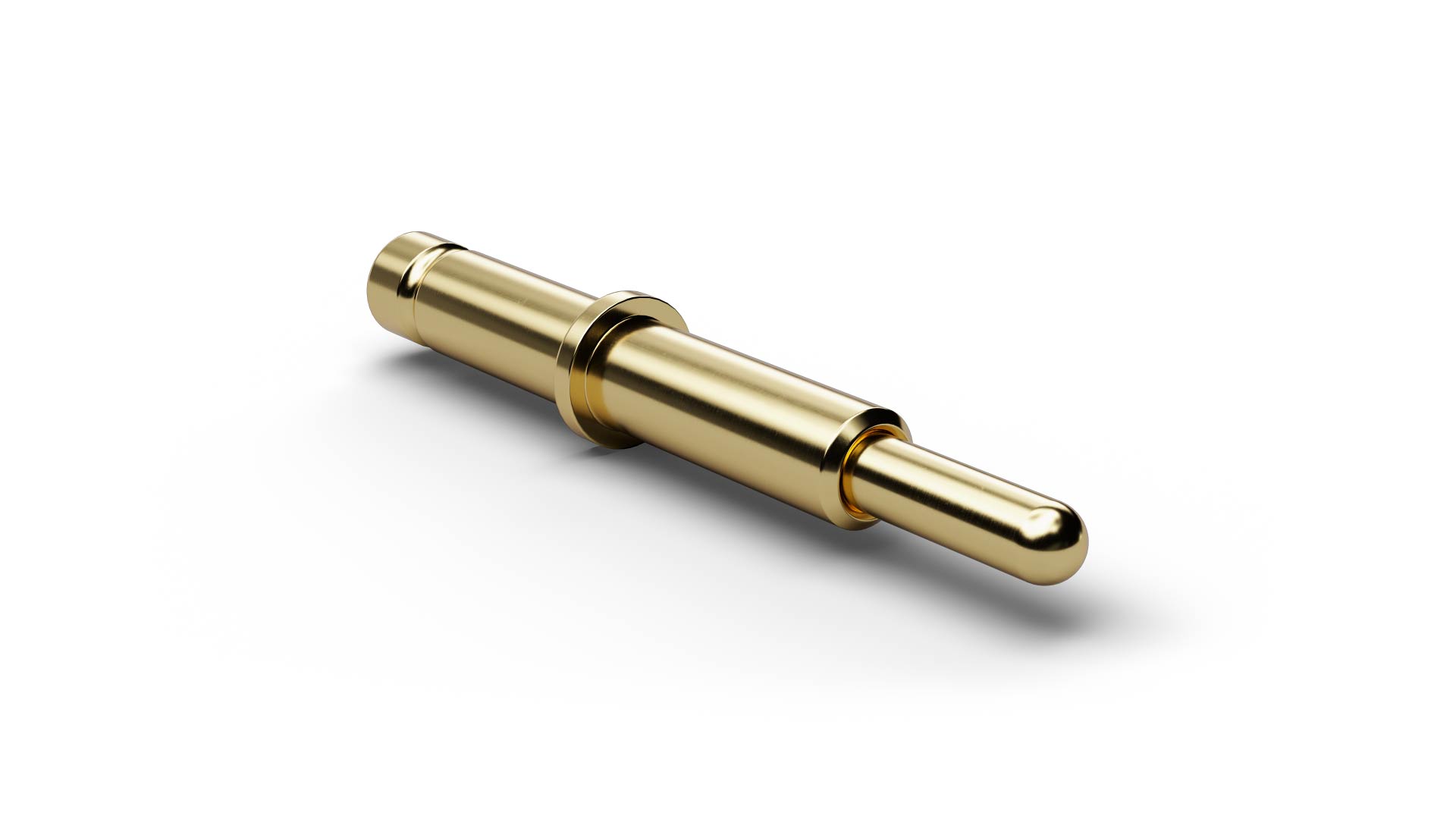

The Pogo Connector P07011B045G030ML060HST (item number 1029816) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P07011B045G030ML060HST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P07011B045G030ML060HST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P07011B045G030ML060HST, a pitch of 1.27 mm / 50 mil is combined with 30 cN spring force and 1 mm nominal travel. P07011B045G030ML060HST is rated for 6 A continuous current with a typical contact resistance of 25 mΩ. On P07011B045G030ML060HST, tip style 11 (Spherical) has a diameter of 0.45 mm.
