Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | P / P500-L115 |
| Paso (mm/mil) | 5,50 / 216 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 11.5 |
| Altura sobresaliente (mm) | 8 |
| Diámetro del estilo de punta (mm) | 2.6 |
| Diámetro del casquillo (mm) | 5 |
| Diámetro del collar (mm) | 4.1 |
| Diámetro del anillo de presión (mm) | 4.1 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 03 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Rhodium |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 100 |
| Fuerza del resorte (cN) | 200 |
| Recorrido nominal (mm) | 2 |
| Recorrido máximo (mm) | 2.2 |
| Precisión de punteo +/- (mm) | 0.2 |
| Rosca | M |
| Tamaño de herramienta (mm) | 3,5 |
| Conexión | Thread |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 20 |
| Resistencia de contacto típica (mΩ) | 30 |
Gráficos
Beschreibung des Produkts

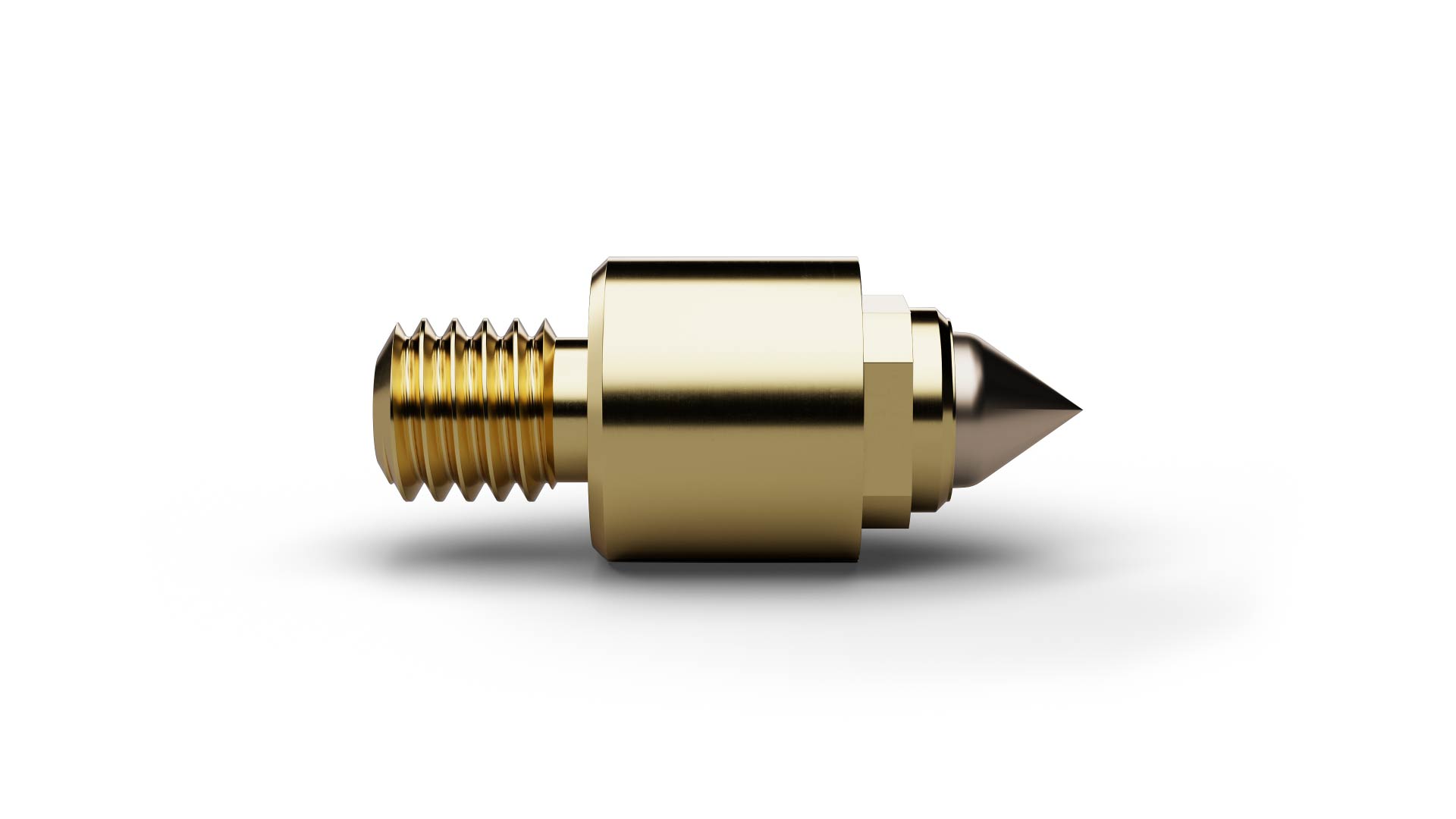

The Pogo Connector P50003S260R200L115S (item number 1030455) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P50003S260R200L115S is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P50003S260R200L115S is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P50003S260R200L115S, a pitch of 5.5 mm / 216 mil is combined with 200 cN spring force and 2 mm nominal travel. The electrical rating of P50003S260R200L115S combines 20 A continuous current with 30 mΩ typical contact resistance. Tip style 03 (Conical 60°) has a diameter of 2.6 mm.
