Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F730 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+100°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 28.9 |
| Altura sobresaliente (mm) | 8.1 |
| Diámetro del estilo de punta (mm) | 0.9 |
| Diámetro del casquillo (mm) | 0.68 |
| Diámetro del collar (mm) | 1.16 |
| Diámetro del anillo de presión (mm) | 1.16 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 30 |
| Fuerza del resorte (cN) | 50 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Rosca | M0,9X0,175 |
| Tamaño de herramienta (mm) | 1,0 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 50 |

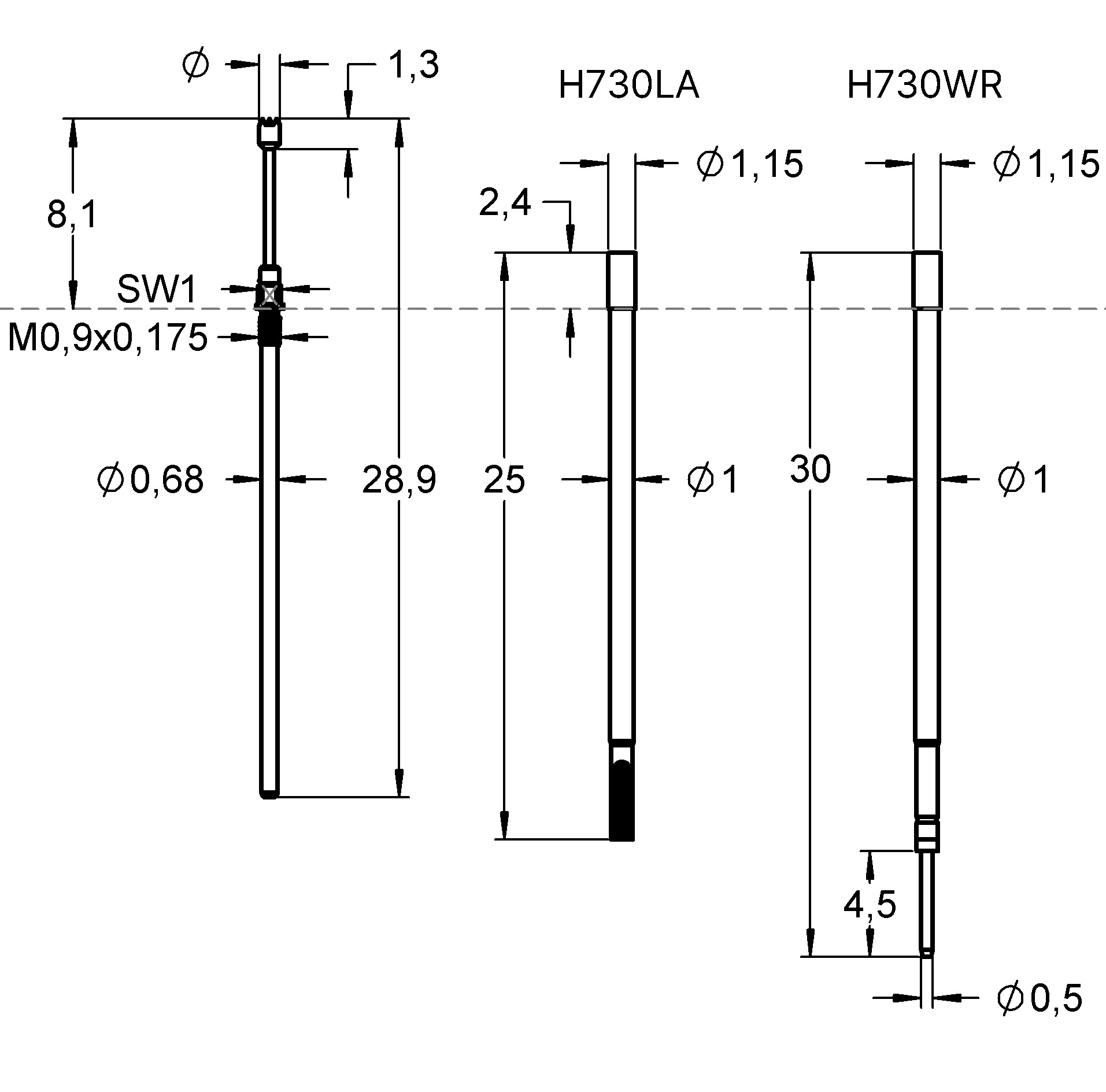

Gráficos
Beschreibung des Produkts

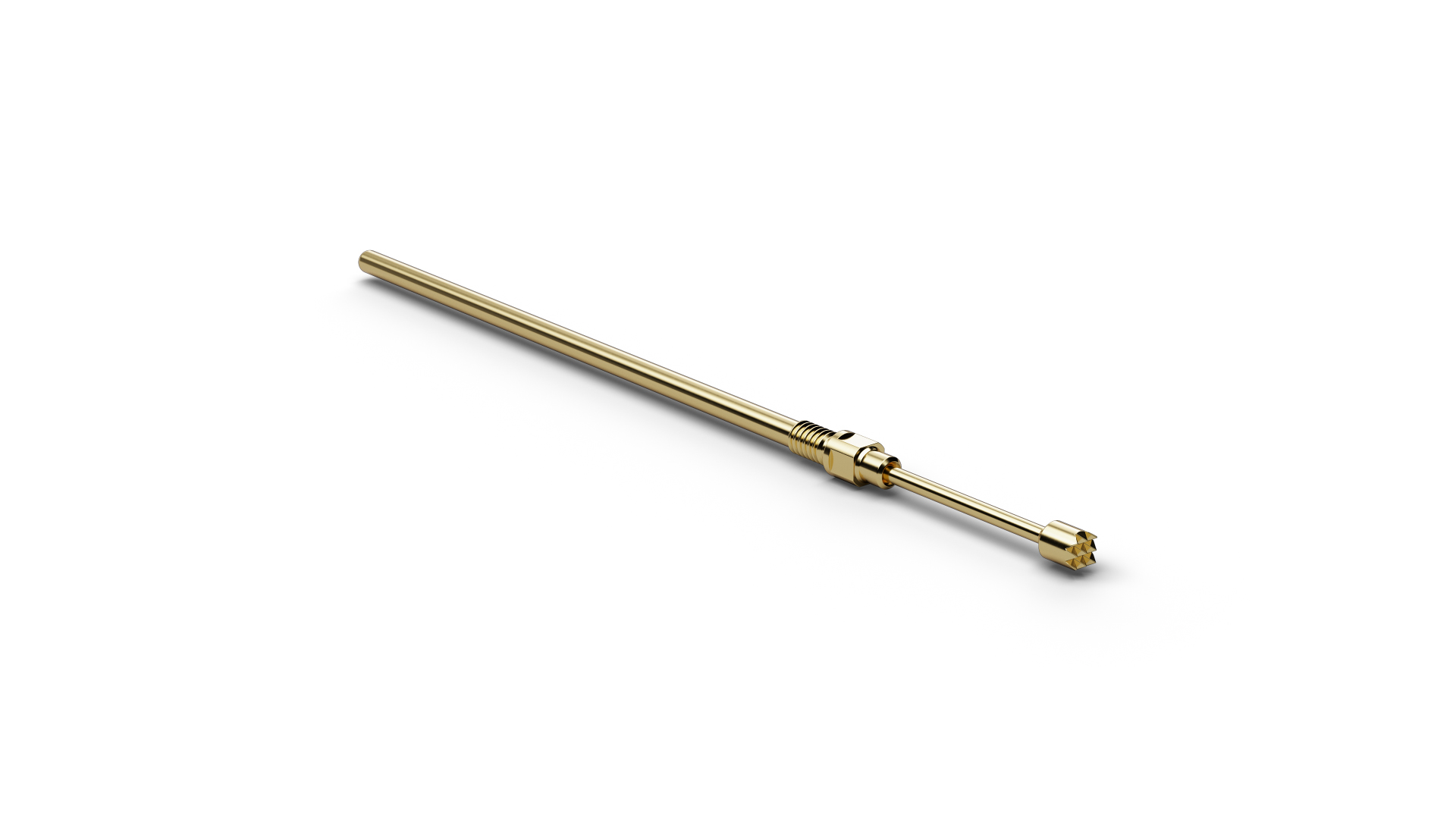

F73006B090G050 (item number 1030988) is a threaded Contact Probe for fixtures where the probe must remain securely in its installed position. The threaded mounting of F73006B090G050 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73006B090G050 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73006B090G050 is installed using a M0.9X0.175 thread. F73006B090G050 combines a pitch of 1.27 mm / 50 mil with tip style 06 (Serrated stepped) and a tip diameter of 0.9 mm. Spring force is 50 cN at a nominal travel of 4 mm.
