Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F767 |
| Paso (mm/mil) | 1,27 / 50 |
| Temperatura | -45°C...+200°C |
| Definición adicional | H |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 39.5 |
| Altura sobresaliente (mm) | 16 |
| Diámetro del estilo de punta (mm) | 0.6 |
| Diámetro del casquillo (mm) | 0.78 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 33 |
| Material del émbolo | Steel |
| Recubrimiento del émbolo | Longtime Gold |
| Material del casquillo | Bronze |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Gold |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 30 |
| Fuerza del resorte (cN) | 100 |
| Recorrido nominal (mm) | 6.4 |
| Recorrido máximo (mm) | 8 |
| Precisión de punteo +/- (mm) | 0.05 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 3 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

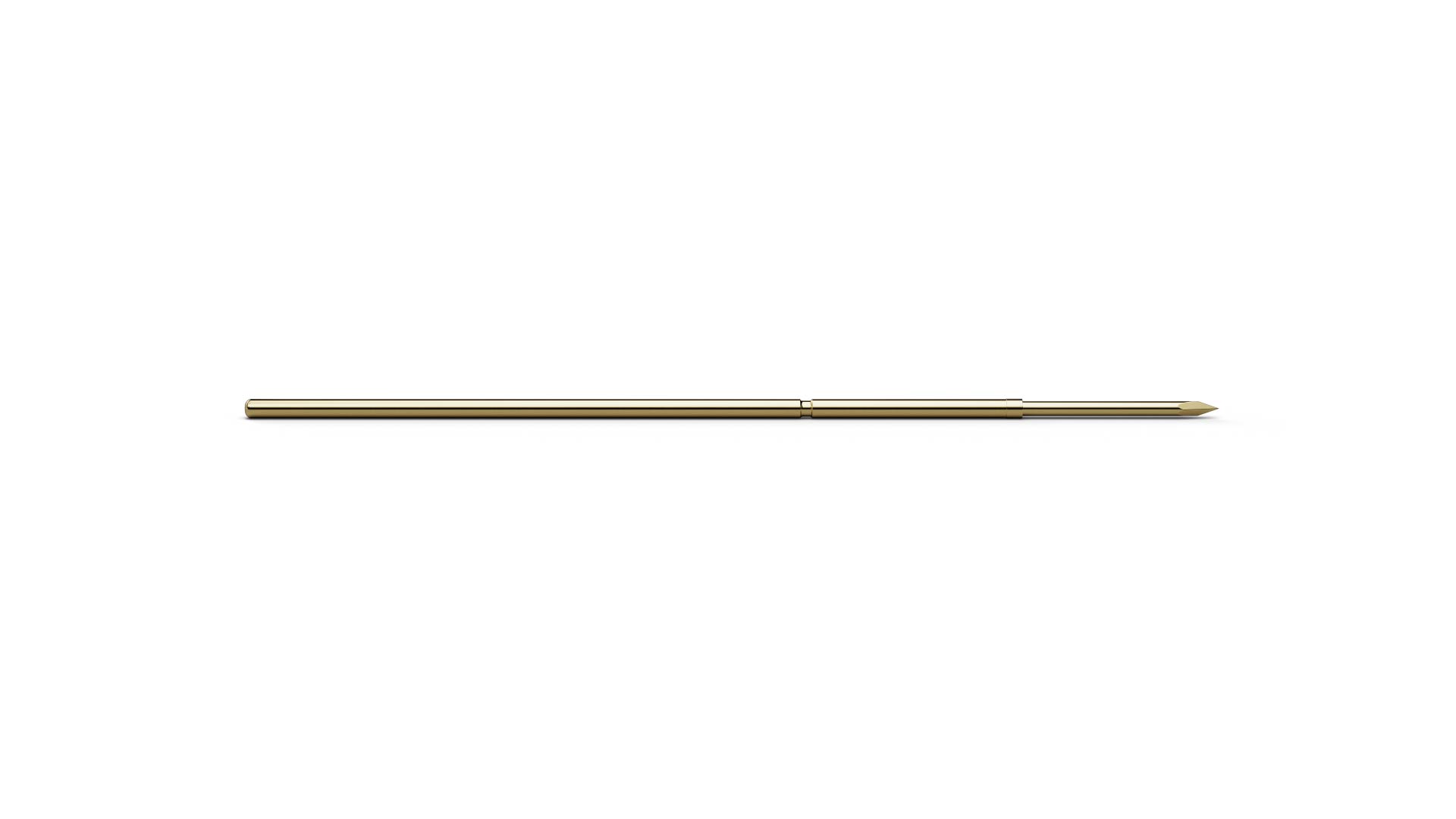

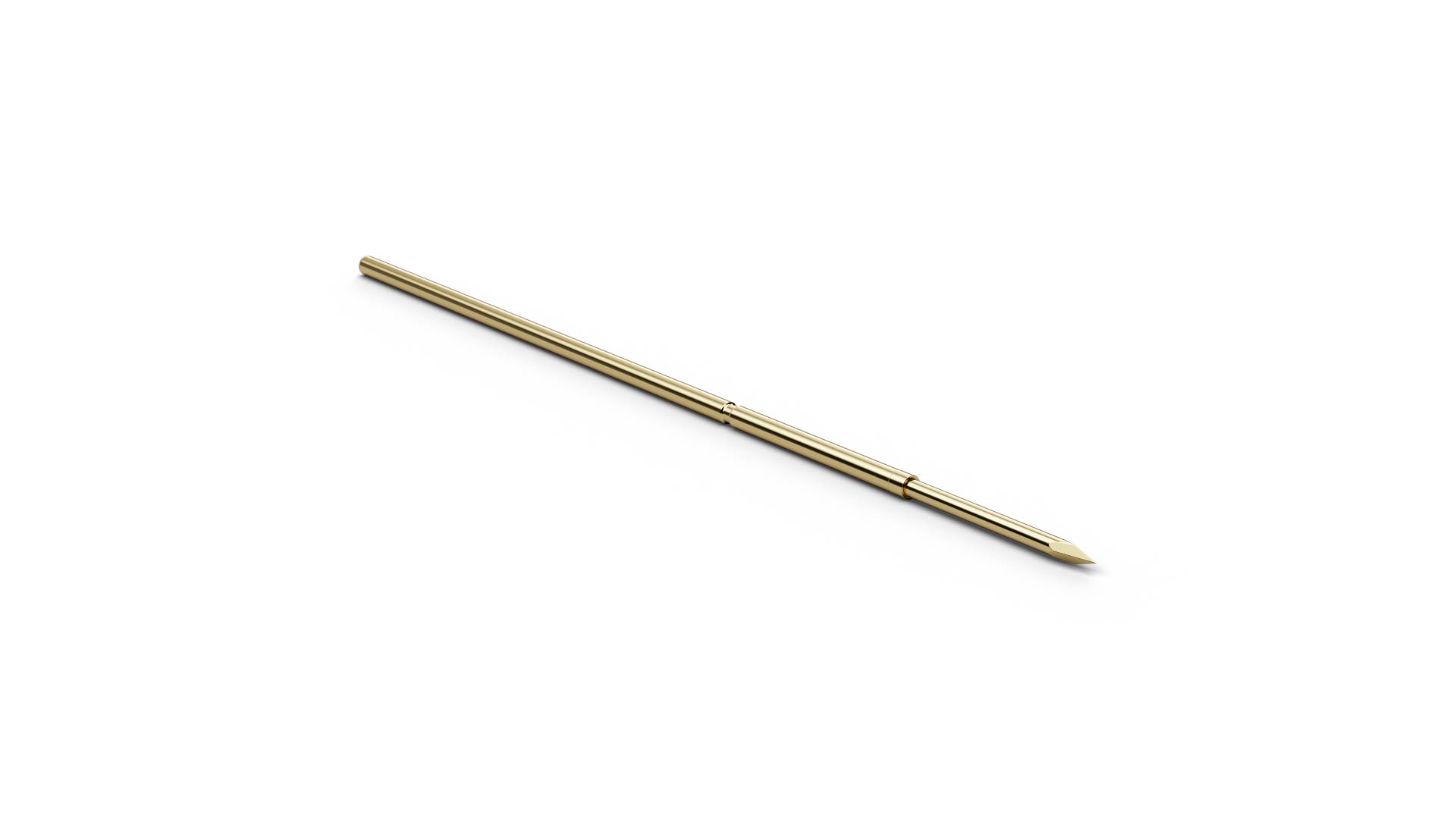

F76733S060L100H (item number 1031090) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F76733S060L100H combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F76733S060L100H combines a pitch of 1.27 mm / 50 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.6 mm. Spring force is 100 cN at a nominal travel of 6.4 mm. F76733S060L100H is rated for 3 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F76733S060L100H is made of steel and uses Longtime Gold plating. As an H version, F76733S060L100H extends the operating range to high-temperature applications up to 200 °C.
