Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | F732 |
| Paso (mm/mil) | 2,54 / 100 |
| Temperatura | -45°C...+100°C |
| Definición adicional | E14 |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 39.7 |
| Altura sobresaliente (mm) | 14.3 |
| Diámetro del estilo de punta (mm) | 0.64 |
| Diámetro del casquillo (mm) | 1.65 |
| Diámetro del collar (mm) | 2.3 |
| Diámetro del anillo de presión (mm) | 2.3 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 50 |
| Fuerza del resorte (cN) | 100 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Precisión de punteo +/- (mm) | 0.08 |
| Rosca | M1,6 |
| Tamaño de herramienta (mm) | 1,7 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 5 |
| Resistencia de contacto típica (mΩ) | 25 |
Gráficos
Beschreibung des Produkts

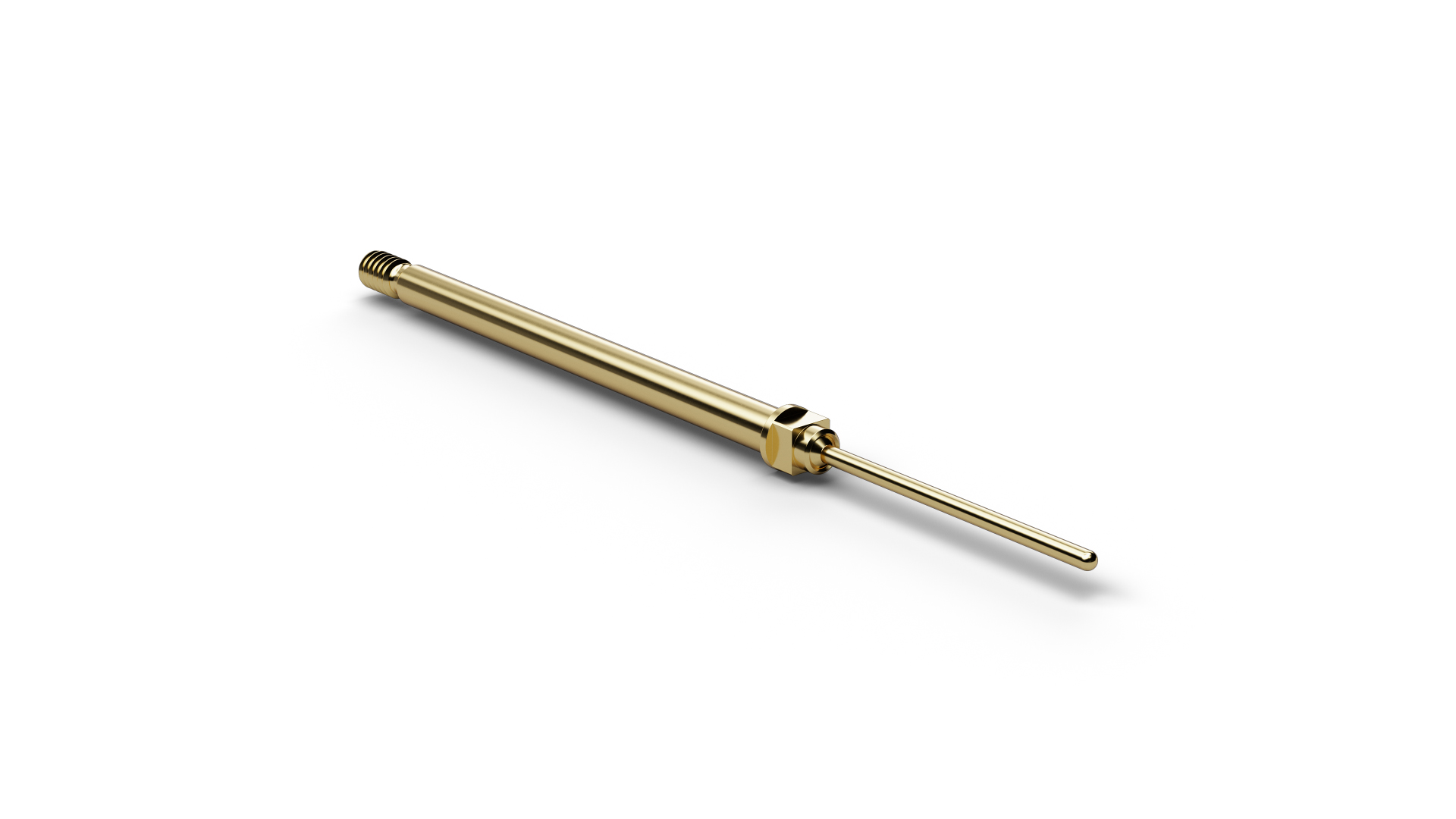

F73211B064G100E14 (item number 1031223) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F73211B064G100E14 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73211B064G100E14 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73211B064G100E14 is installed using a M1.6 thread. F73211B064G100E14 combines a pitch of 2.54 mm / 100 mil with tip style 11 (Spherical) and a tip diameter of 0.64 mm. For F73211B064G100E14, spring force is 100 cN at a nominal travel of 4 mm.
