Datos técnicos
| General | |
|---|---|
| Estructura | Step Probe |
| Tipo/Familia | F176SP |
| Paso (mm/mil) | 1,90 / 75 |
| Temperatura | -45°C...+100°C |
| Definición adicional | SP |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 22 |
| Altura sobresaliente (mm) | 10 |
| Diámetro del estilo de punta (mm) | 0.4 |
| Diámetro del casquillo (mm) | 1 |
| Diámetro del collar (mm) | 1.4 |
| Diámetro del anillo de presión (mm) | 1.4 |
| A – Diámetro del pin (mm) | 0.4 |
| B – Diámetro de la placa (mm) | 0.9 |
| C – Longitud del pin (mm) | 4 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | Spring steel |
| Recubrimiento del resorte | Silver |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 30 |
| Fuerza del resorte (cN) | 80 |
| Recorrido nominal (mm) | 2.4 |
| Recorrido máximo (mm) | 3 |
| Precisión de punteo +/- (mm) | 0.08 |
| Rosca | M1 |
| Tamaño de herramienta (mm) | 1,0 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 4 |
| Resistencia de contacto típica (mΩ) | 20 |
Gráficos
Beschreibung des Produkts

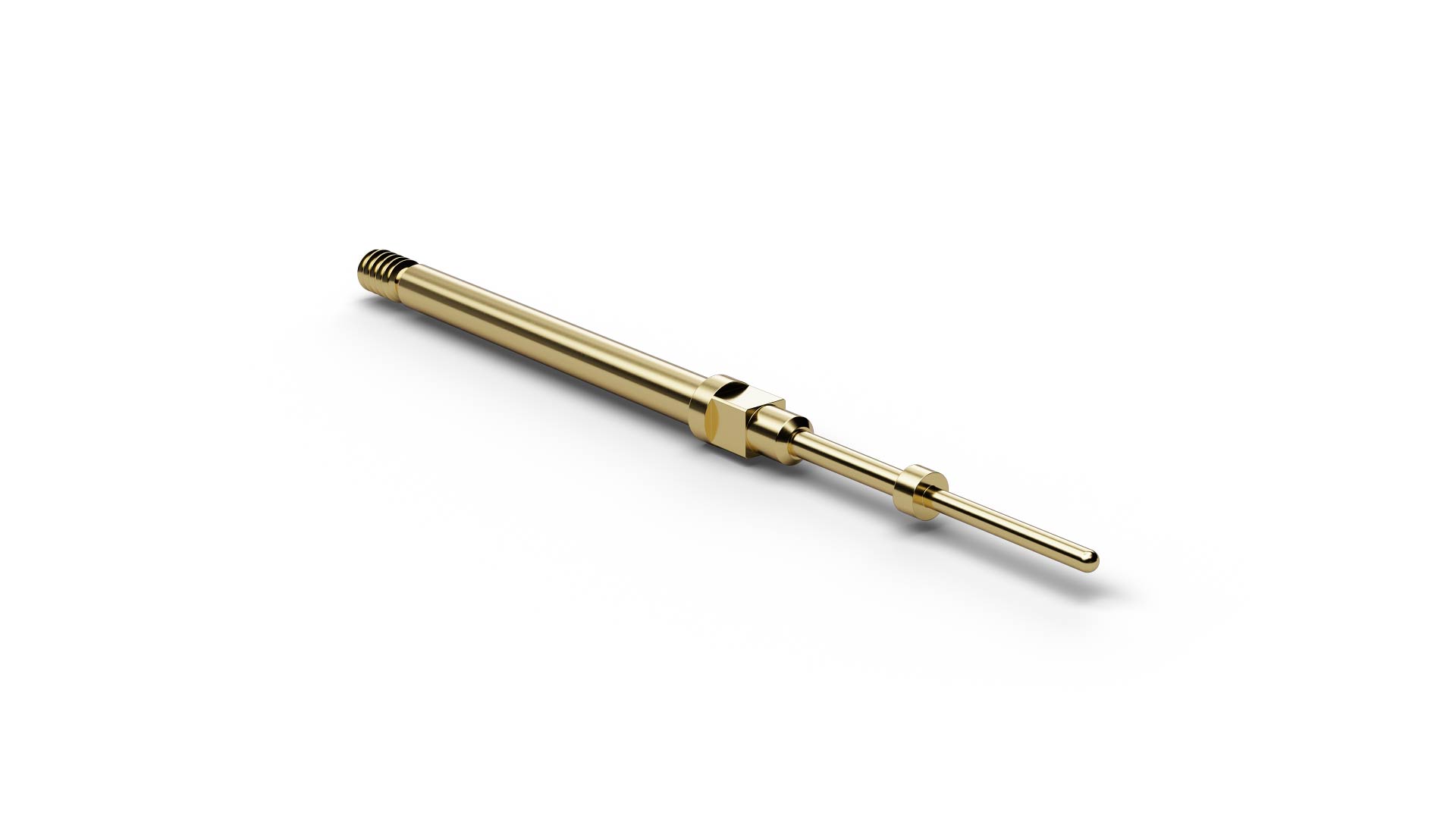

The Step Probe F17611B0001G080SP (item number 1031258) is designed for position and presence checks on contacts located in connector housings, recesses or other difficult-to-access areas. On F17611B0001G080SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. Contact geometry is characterized by pin diameter 0.4 mm, plate diameter 0.9 mm, pin length 4 mm. On F17611B0001G080SP, a pitch of 1.9 mm / 75 mil is combined with 80 cN spring force and 2.4 mm nominal travel. For F17611B0001G080SP, the specified continuous current is 4 A. The plunger in F17611B0001G080SP is made of beryllium copper and is gold-plated.
