Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCF775 |
| Paso (mm/mil) | 5,00 / 197 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 41.8 |
| Altura sobresaliente (mm) | 13.8 |
| Diámetro del estilo de punta (mm) | 4 |
| Diámetro del casquillo (mm) | 3.5 |
| Diámetro del collar (mm) | 4 |
| Diámetro del anillo de presión (mm) | 4 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 06 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 220 |
| Fuerza del resorte (cN) | 500 |
| Recorrido nominal (mm) | 7.4 |
| Recorrido máximo (mm) | 8.5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 50 |
| Resistencia de contacto típica (mΩ) | 5 |
Gráficos
Beschreibung des Produkts

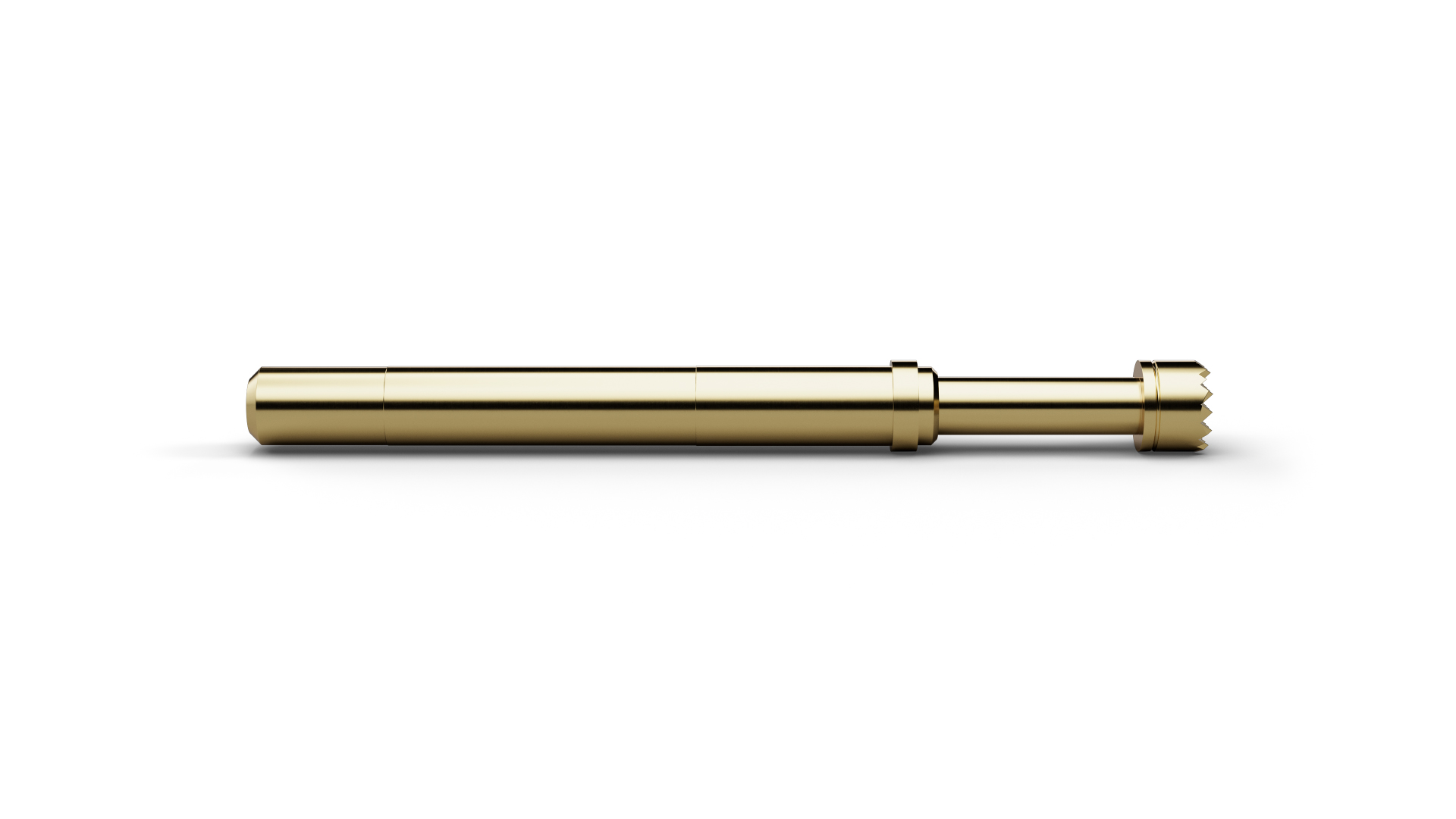

For power-intensive contacting, HCF77506B400G500L418 (item number 1035576) provides a spring-loaded high-current path within the test setup. HCF77506B400G500L418 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF77506B400G500L418, current capacity, low contact resistance and defined contact force are key to limiting electrical losses and unwanted heating. The design combines a pitch of 5 mm / 197 mil with tip style 06 (Serrated stepped) and a tip diameter of 4 mm. Spring force is 500 cN at a nominal travel of 7.4 mm. The continuous-current rating of HCF77506B400G500L418 is 50 A.
