Datos técnicos
| General | |
|---|---|
| Tipo/Familia | HCB045 |
| Temperatura | -45°C...+200°C |
| Definición adicional | A |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 71.2 |
| Altura sobresaliente (mm) | 10.2 |
| Diámetro del estilo de punta (mm) | 1 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del estilo de punta | Beryllium copper |
| Recubrimiento del estilo de punta | Gold |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del bloque | Brass |
| Recubrimiento del bloque | Silver |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 250 |
| Fuerza del resorte (cN) | 1500 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 70 |
| Resistencia de contacto típica (mΩ) | 3 |
Gráficos
Beschreibung des Produkts

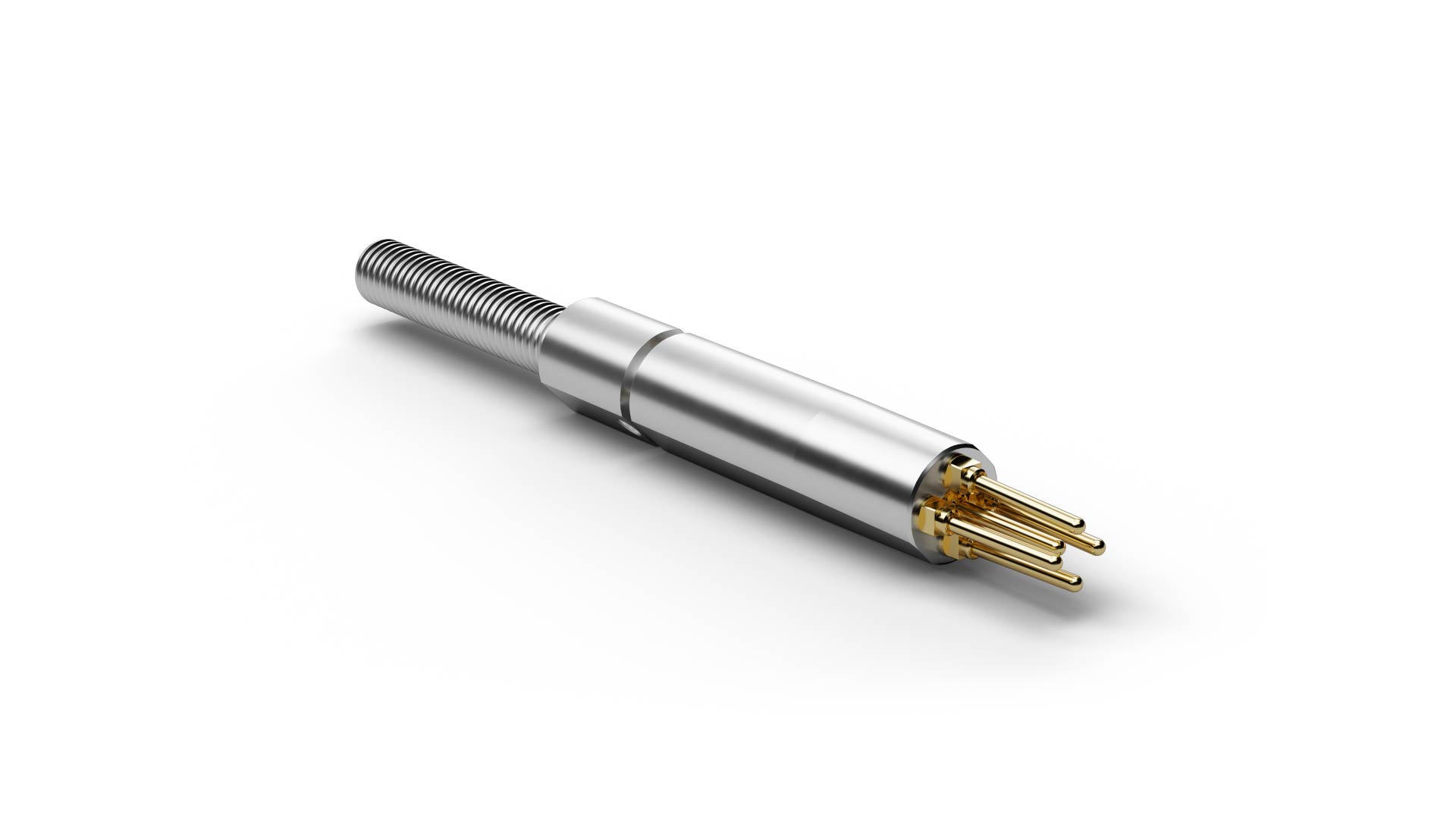

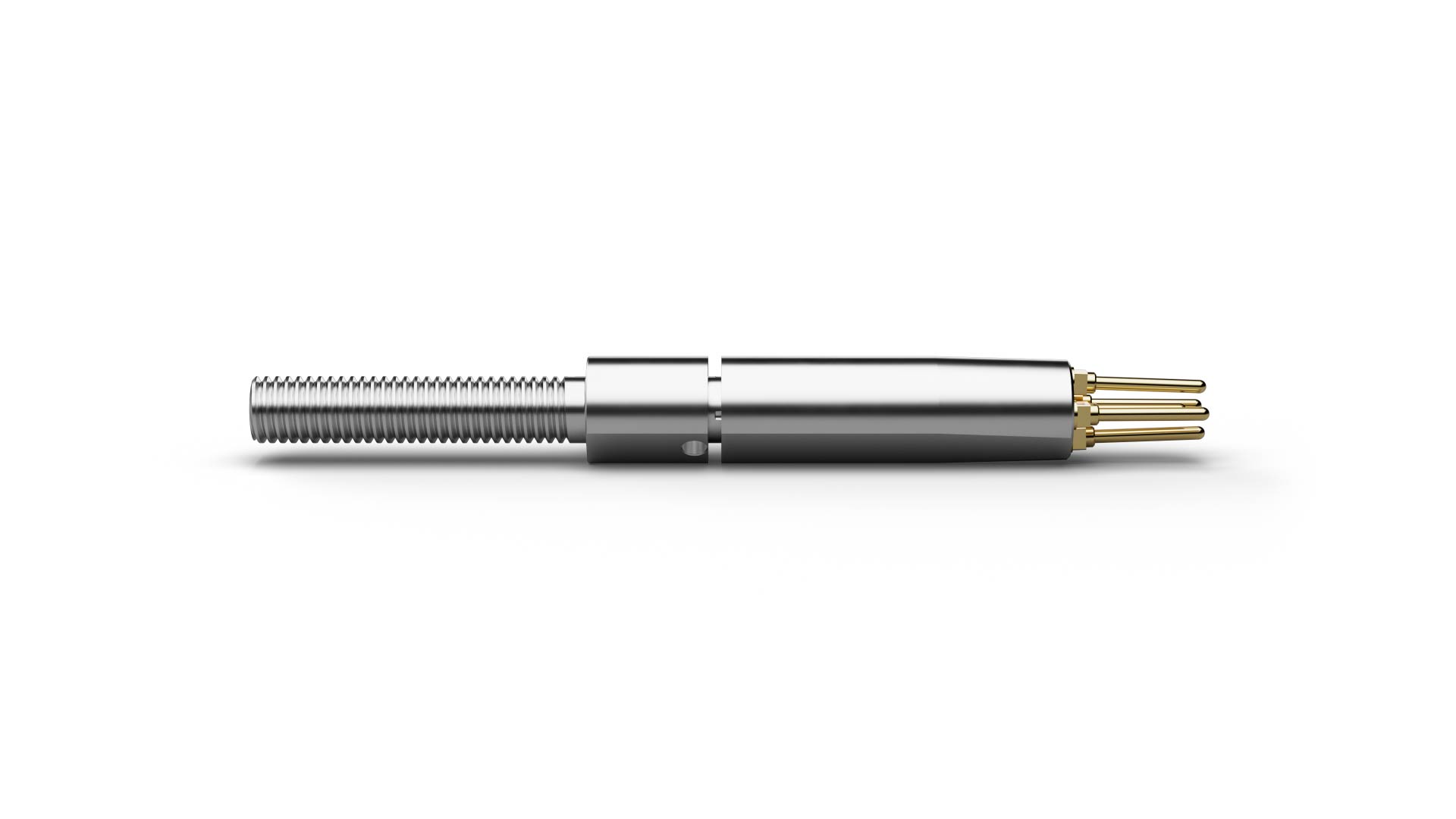

The High Current Block HCB045A11MS15 (item number 1056616) is designed for test and contacting tasks with high electrical currents. HCB045A11MS15 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. In HCB045A11MS15, the compact assembly integrates the current path into a defined interface, where current capability, contact resistance and contact force are key design parameters. Electrical specifications for HCB045A11MS15 include 70 A continuous current and 3 mΩ typical contact resistance. HCB045A11MS15 operates with 1500 cN spring force and 4 mm nominal travel.
