Datos técnicos
| General | |
|---|---|
| Tipo/Familia | HCB052 |
| Temperatura | -45°C...+200°C |
| Definición adicional | A |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 71.3 |
| Altura sobresaliente (mm) | 10.3 |
| Diámetro del estilo de punta (mm) | 1 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 11 |
| Material del estilo de punta | Beryllium copper |
| Recubrimiento del estilo de punta | Gold |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del bloque | Brass |
| Recubrimiento del bloque | Silver |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 250 |
| Fuerza del resorte (cN) | 1500 |
| Recorrido nominal (mm) | 4 |
| Recorrido máximo (mm) | 5 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 70 |
| Resistencia de contacto típica (mΩ) | 3 |

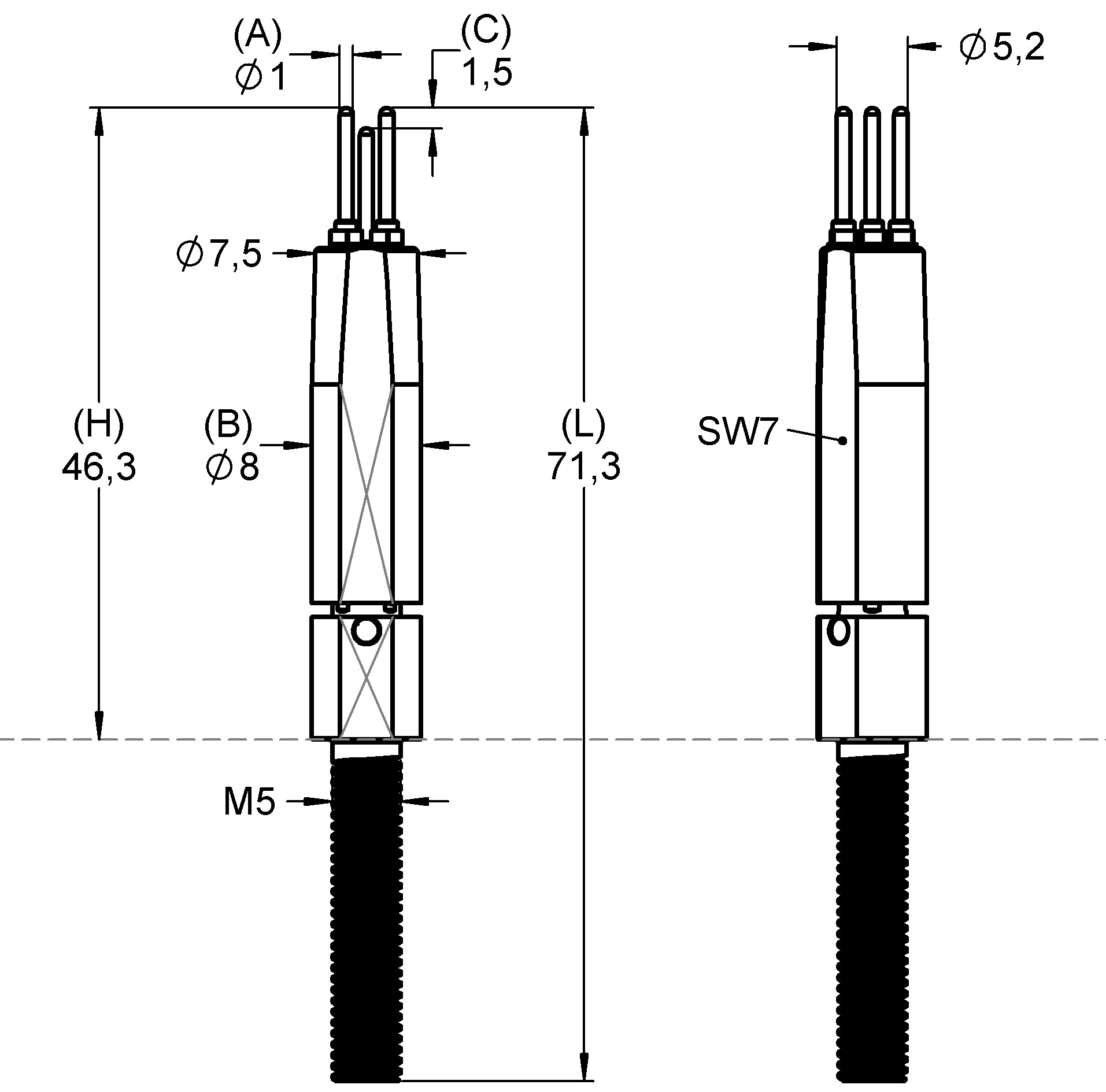

Gráficos

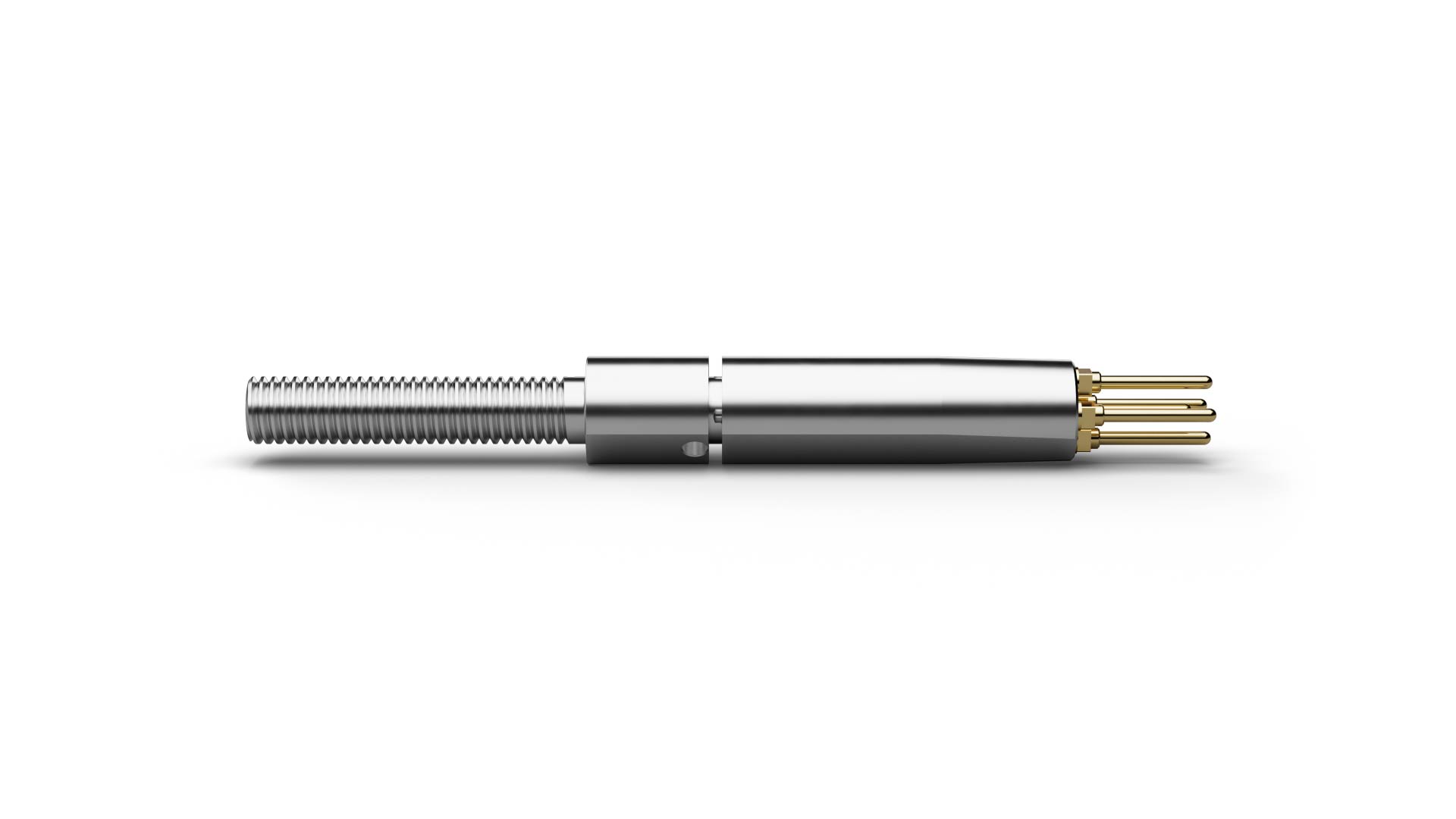

Beschreibung des Produkts
The High Current Block HCB052A11MS15 (item number 1089466) is designed for test and contacting tasks with high electrical currents. HCB052A11MS15 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. In HCB052A11MS15, the compact assembly integrates the current path into a defined interface, where current capability, contact resistance and contact force are key design parameters. Electrical specifications for HCB052A11MS15 include 70 A continuous current and 3 mΩ typical contact resistance. For HCB052A11MS15, spring force is 1500 cN at a nominal travel of 4 mm.
