Datos técnicos
| General | |
|---|---|
| Estructura | Basic Contact Probe |
| Tipo/Familia | HCF723 |
| Paso (mm/mil) | 4,00 / 157 |
| Temperatura | -45°C...+200°C |
| Dimensiones | |
|---|---|
| Longitud total (mm) | 17.1 |
| Altura sobresaliente (mm) | 7.1 |
| Diámetro del estilo de punta (mm) | 2.3 |
| Diámetro del casquillo (mm) | 2.65 |
| Diámetro del collar (mm) | 3.2 |
| Diámetro del anillo de presión (mm) | 3.2 |
| Materiales y superficies | |
|---|---|
| Estilo de punta | 14 |
| Material del émbolo | Beryllium copper |
| Recubrimiento del émbolo | Gold |
| Material del casquillo | Brass |
| Recubrimiento del casquillo | Gold |
| Material del resorte | High-grade steel |
| Recubrimiento del resorte | Uncoated |
| Especificaciones mecánicas | |
|---|---|
| Precarga (cN) | 70 |
| Fuerza del resorte (cN) | 150 |
| Recorrido nominal (mm) | 2.8 |
| Recorrido máximo (mm) | 3.5 |
| Precisión de punteo +/- (mm) | 0.1 |
| Rosca | M2 |
| Tamaño de herramienta (mm) | 3,0 |
| Especificaciones eléctricas | |
|---|---|
| Corriente continua (A) | 30 |
| Resistencia de contacto típica (mΩ) | 8 |
Gráficos
Beschreibung des Produkts

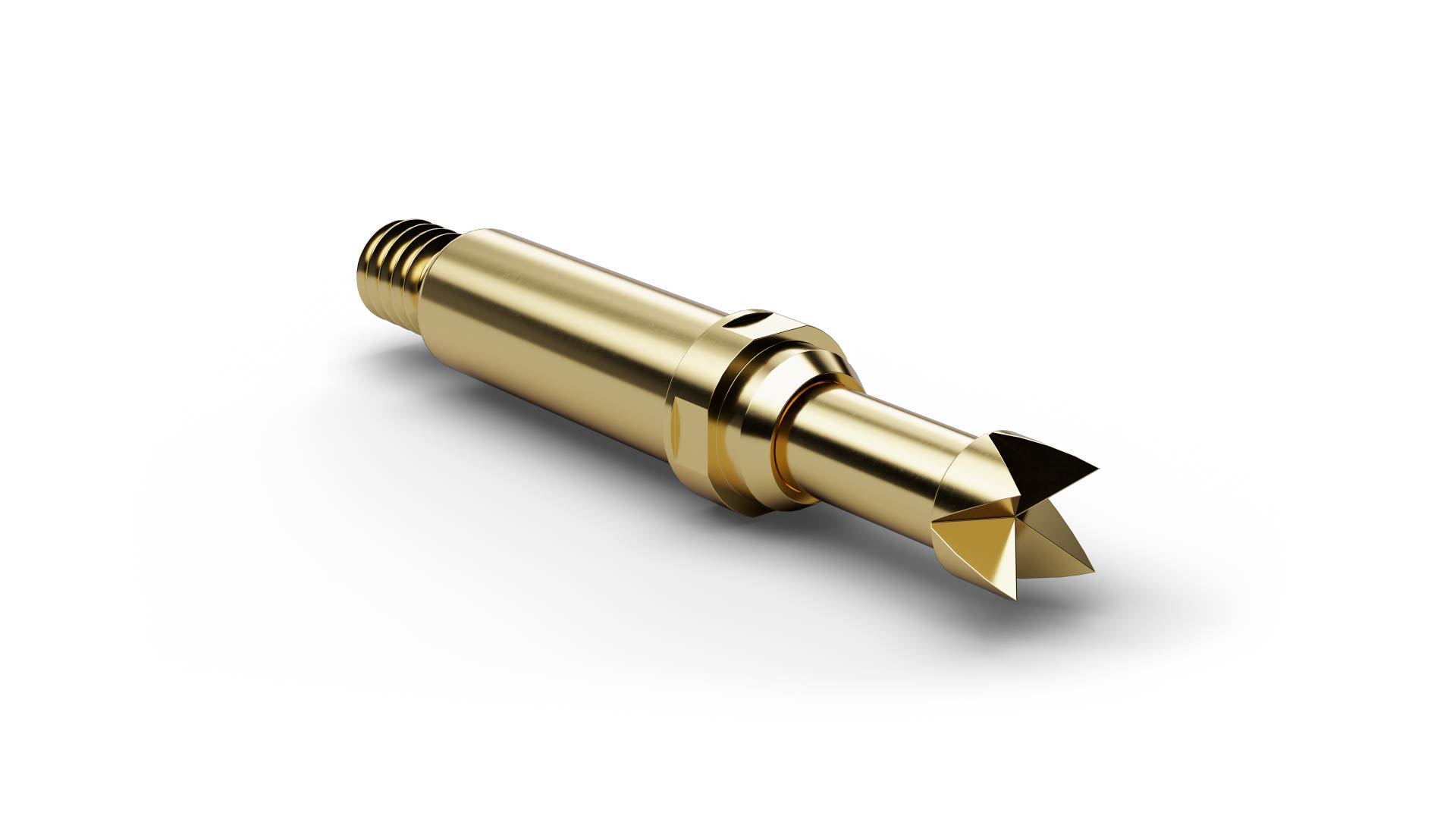

The High Current Probe HCF72314B230G150 (item number 1091459) is designed for safe transmission of high electrical currents in test and contacting applications. HCF72314B230G150 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF72314B230G150, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF72314B230G150 includes power-electronics testing. HCF72314B230G150 is rated for 30 A continuous current with a typical contact resistance of 8 mΩ. HCF72314B230G150 operates with 150 cN spring force and 2.8 mm nominal travel.
